Summary of Contents for Stern Engineering NEPTUNE SHOWER PANEL B

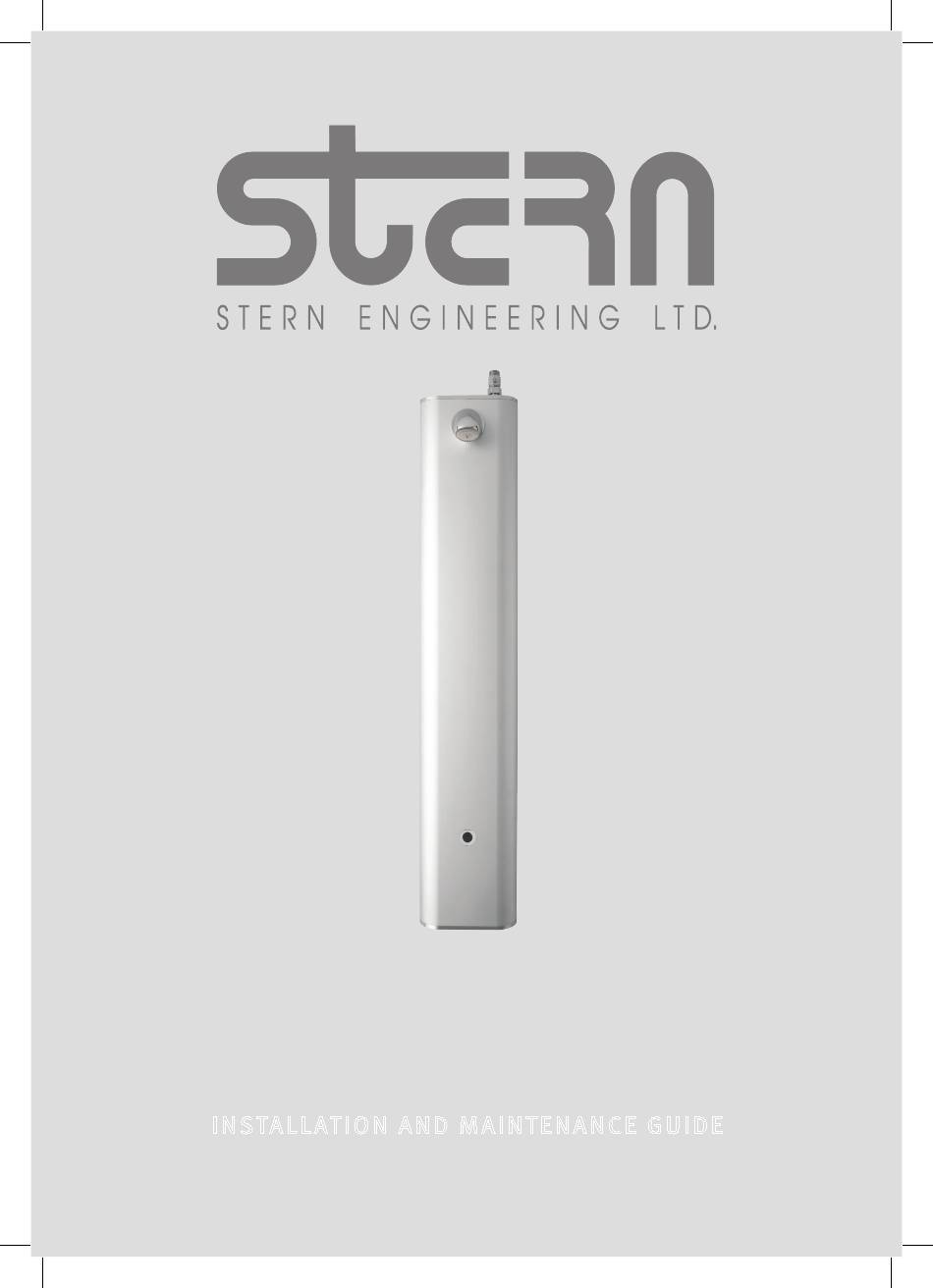

- Page 1 NEPTUNE SHOWER PANEL B / E 1000 TB / 1000 TE I N S TA L L AT I O N A N D M A I N T E N A N C E G U I D E...
- Page 2 INDEX TECHNICAL DATA PRE-INSTALLATION INFO PACK CONTENTS INSTALLATION 8-10 SETTINGS ADJUSTMENT 11-12 BATTERY REPLACEMENT MAINTENANCE Filters cleaning instructions Care and cleaning of chrome and special finishes SPARE PARTS LIST WARRANTY TROUBLE SHOOTING...
-
Page 3: Technical Data
TECHNICAL DATA 601410 602410 NEPTUNE SHOWER PANEL B NEPTUNE SHOWER PANEL 1000 B 603410 NEPTUNE SHOWER PANEL E 604410 NEPTUNE SHOWER PANEL 1000 E Internally mounted IP67 battery box Power Supply B versions with 6 X 1.5V batteries Power Supply E versions... -
Page 4: Pre-Installation Info
PRE-INSTALLATION INFO CHECK CONTENTS Separate all parts from the packaging and check each part with the “Pack contents” section. Pay attention to the different models variations. Make sure all parts are accounted for before discarding any packaging material. If any parts are missing, do not attempt to install your electronic faucet until you obtain the missing parts. -
Page 5: Pack Contents
PACK CONTENTS Familiarize yourself with the part names and confirm that the parts are included. 1 x Shower head 9000 (9 LPM) 1 x Shower panel with Prox 1 x Shut off valve 1/2” sensor and attachments 3 x Screws (#10X1 1/2”) 3 x anchors 1 x Allen Key 2 mm 1 x Allen Key 2.5 mm... - Page 6 PACK CONTENTS Familiarize yourself with the part names and confirm that the parts are included. 1 x Shower panel with Prox 2 x Shut off valves 1/2” 1 x Shower head 9000 (9 LPM) sensor and attachments 3 x Screws (#10X1 1/2”) 3 x anchors 1 x Allen Key 2 mm 1 x Allen Key 2.5 mm...
-
Page 7: Installation
INSTALLATION Shut off the water supply. Drill two top holes for the support and one bottom hole in the wall according to the panel dimensions and drive the anchors in. Secure the support to the two top holes using 2 screws. Assure that the cable coming from TO THE PROX SENSOR the prox sensor to the solenoid... - Page 8 INSTALLATION Assemble the shower head 9000 on the shower head basis already installed on the shower panel and secure it into place using the 2mm Allen key. NOTE: The shower head 9000 is provided with a 9LPM flow restrictor, combined in the shower head basis that is already installed on the shower head panel.
-
Page 9: Adjusting The Water Temperature
ADJUSTING THE WATER TEMPERATURE The shower has been factory calibrated to 38°C under ideal installation conditions. Due to variations in site conditions, the mixed water temperature may need adjustments to match the site conditions and make sure that it is safe. Unscrew the regulation knob screw and remove the regulation knob. -
Page 10: Settings Adjustment
SETTINGS ADJUSTMENT DETECTION DELAY OUT PROX PROX RANGE TIME WAVE DELAY IN PROX TEMPORARY PROX TIME OFF FUNCTION WAVE PROX SECURITY RESET PROX TIME WAVE HYGIENE PROX FLOW TIME WAVE FLUSH WAVE... - Page 11 SETTINGS ADJUSTMENT ADJUSTING THE SETTINGS WITH THE REMOTE CONTROL If necessary, the sensor settings can be adjusted as following: Shut off the water supply. In order to adjust the sensor with the remote control, hold the remote control straight in front of the sensor in a distance of about 6-8” (15-20cm).
- Page 12 SETTINGS ADJUSTMENT Delay OUT time: This button allows modifying the water flow time after the user removes his hands from the shower. A delay out time close to 0 will save more water. An increased delay out time will make the user experience more comfortable.
-
Page 13: Battery Replacement
BATTERY REPLACEMENT Battery models only LOW BATTERY INDICATOR The Neptune Shower Panel has an advanced battery level management system consisting of 2 steps. At the first step, the battery still has enough power to open and close the solenoid valve. And allows the solenoid valve to open. At the second step the battery might not have enough power to open and close the solenoid valve. - Page 14 BATTERY REPLACEMENT Carefully Open the battery box and remove the old batteries. Replace the used batteries with six new 1.5V AA batteries. Close the box ensuring that the 0-ring is inserted in the right position on its groove (please do not unscrew the plastic nuts on the top of the box).
-
Page 15: Maintenance
MAINTENANCE This Neptune Shower Panel is provided with a stainless steel filter\s preventing foreign particles to enter the lines. If the water flow has decreased, this may be caused by the clogged filter/s. The filter\s can be cleaned as follows: Filter cleaning instructions: 1. -
Page 16: Spare Parts List
SPARE PARTS LIST NEPTUNE SHOWER PANEL B/E SEALS AND SCREWS KIT 07210125 INLET NIPPLE KIT 07246014 MOUNTING KIT 07280009 NIPPLE KIT 07246015 WAVE ON/OFF SENSOR P FOR SHOWER PANEL 07220256 PROX SENSOR P FOR SHOWER PANEL 07220164 SOLENOID BS-HOUSING KIT... -
Page 17: Limited Warranty
If a defect is found in normal use, Y. Stern Engineering Ltd. will, at its discretion, repair, provide a replacement part or product, or make appropriate adjustments. Damage caused by accident, misuse, or abuse is not covered by this warranty. -
Page 18: Troubleshooting
TROUBLESHOOTING PROBLEM INDICATOR CAUSE SOLUTION No water coming out of 1.Sensor flashes the shower head: continuously when user’s hand/body are Low battery. Replace battery. within the sensor’s range. 1. Range is too short. Increase the range. 2. Range is too long. Decrease the range. - Page 20 777 Passaic Avenue, Clifton NJ,07012, USA Tel: +1-973 773 8011 | Fax: +1-973-779-8768 Toll Free: 1-800-4364410 info@sternfaucets.com | sternusa@sternfaucets.com 03.16 01500238-B...
