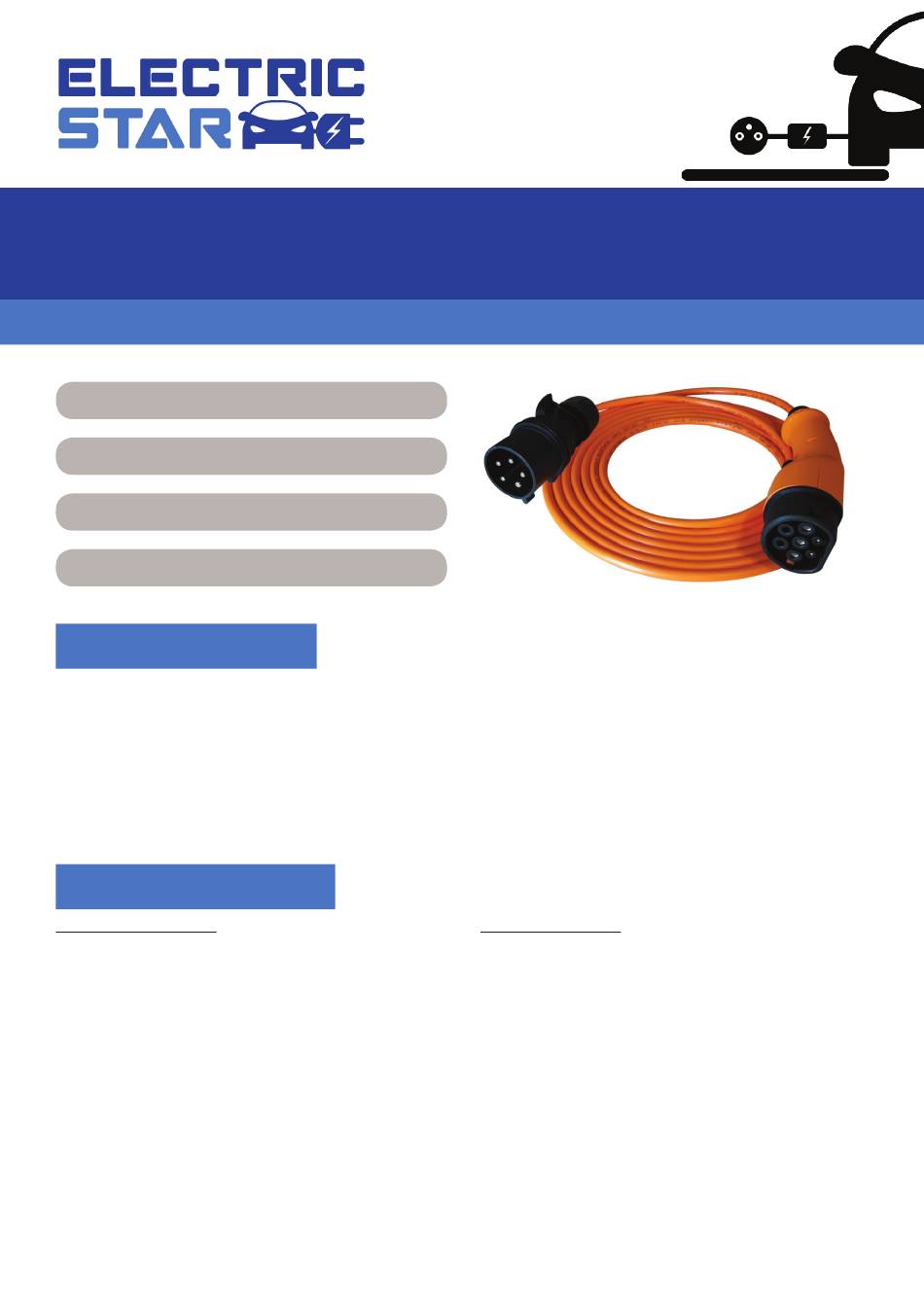

Electric Star PC05A User Manual

Portable charger for electric vehicle

Hide thumbs

electric-star.com - info@electric-star.com

Portable charger for electric vehicle

POWERFUL

- Max 11.1 kW

SMART

- Boxless design

UNIVERSAL

- Highly convenient

SAFETY

- Premium quality charger

INTRODUCTION

The PC05A portable charger is dedicated to charge any

electric vehicle with three-phase alternating current (AC).

It can be plugged in any industrial electric socket, directly

or using an adapter if necessary. PC05A is completely

universal. It fits any three-phase vehicle having a Type 2

socket (european standard). Charging power is easily set

by the user thanks to the convenient integrated button.

This portable charger takes advantage of a unique

HOW TO USE ?

START CHARGING:

1. Plug the charger into an electric socket.

2. Charger's LED starts blinking in order to indicate

what charging power is currently set (see page 2).

3. LED remains fixed to show it is waiting to be used.

4. Plug charger into vehicle.

5. LED blinks slowly in order to indicate that vehicle is

currently charging.

PC05A

design since all charging electronics is directly in-

tegrated in the Type 2 plug ! Thanks to that smart and

revolutionary design, there is no box attached to the

charger, contrary to other solutions available on the mar-

ket. In other words, it is more convenient, lightweight,

easy to use and easy to store. PC05A is made from pre-

mium quality materials which is highly essential. Pow-

er and safety are both provided by this unique charger.

END CHARGING:

1. When vehicle is charged, charger's LED remains

fixed (no more blinking).

2. Unplug charger from vehicle, depending on the re-

quired procedure for your vehicle.

3. Have a nice trip :)

ES-PC05A-USER-MANUAL-EN-v2

USER MANUAL

Page 1

Table of Contents

Need help?

Do you have a question about the PC05A and is the answer not in the manual?

Questions and answers

Summary of Contents for Electric Star PC05A

Page 1 In other words, it is more convenient, lightweight, socket (european standard). Charging power is easily set easy to use and easy to store. PC05A is made from pre- by the user thanks to the convenient integrated button. mium quality materials which is highly essential. Pow- This portable charger takes advantage of a unique er and safety are both provided by this unique charger.
Page 2 Domestic electric socket: PC05A portable charger can also be plugged into a domestic electric socket (Shuko) or into a CEE 3P 16A single-phase, if a suitable adapter is used. In such case, PC05A provides limited charging power (see values into brackets here-above).
Page 3 PC05A can be equipped with a Type B RCD. This RCD provides maximum protection since it handles alternating current (AC), direct current (DC) as well as high frequency alternating current leaks. In order to take advantage of a boxless design for PC05A charger, this RCD is directly integrated inside the CEE 5P 16A/32A three-phase plug.
Page 4 Any and all labor costs for troubleshooting, repair or replacement of product that are not covered by warranty will be charged to original consumer purchaser. All shipping costs for repair of replacement of product are at original consumer purchaser’s charge. © Electric-Star ES-PC05A-USER-MANUAL-EN-v2 Page 4...
