Summary of Contents for Jaycar AA2085

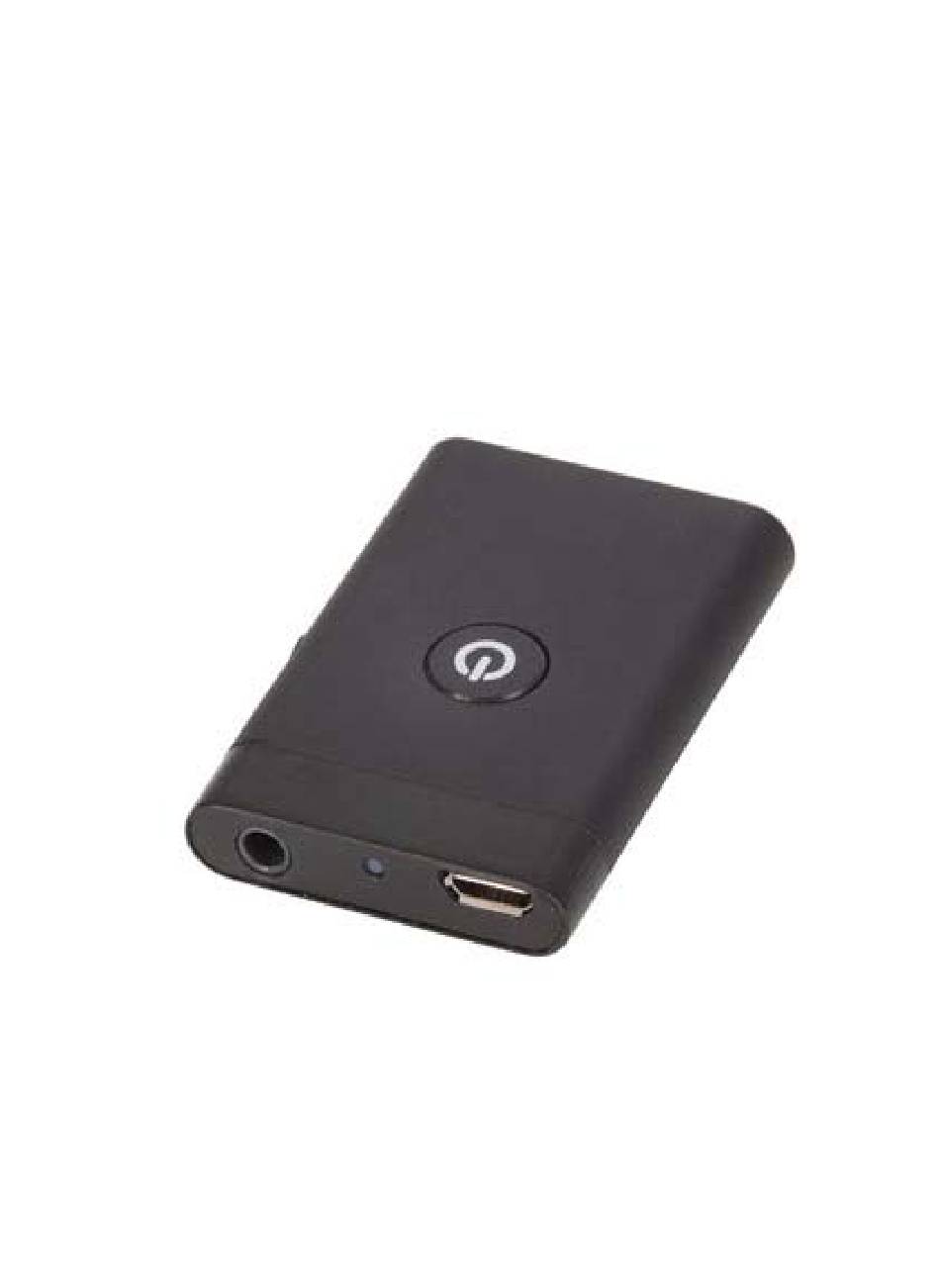

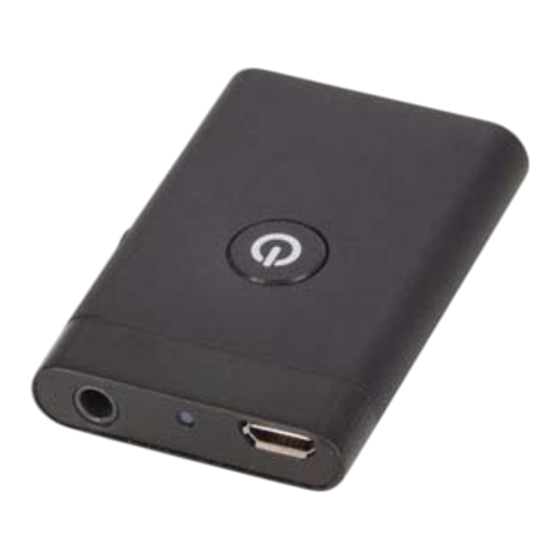

- Page 1 AA2085 Rechargeable Bluetooth Audio Transmit or Receive Dongle...
- Page 2 Overview Multi-function button (MFB): 3.5mm audio socket Switching on/off, pairing Charging socket Transmit(TX) / Receive(RX) switch...
- Page 3 3.5mm to 3.5mm audio cable Getting started Charging the battery of AA2085 Please charge the battery to full before using the transmitter for the first time. Low battery: When the red LED flashes during use, the battery power is low and needs to be charged.
- Page 4 Selecting transmit mode: Please move the TX/RX switch to TX (transmit) mode before turning on the AA2085. Note: TX or RX mode can not be changed while the AA2085 unit is on. Ensure the unit is OFF when selecting either TX or RX mode.
- Page 5 Clearing pairing list Make sure the AA2085 is off, press and hold button for about 10 seconds, and release it until red LED is on for 1 second and then blue LED is on for 1 second. 1. LED indicator...
- Page 6 Please move the TX/RX switch to RX (receive) mode while the AA2085 unit is off. Note: TX or RX mode can not be changed while the AA2085 unit is on. Ensure the unit is OFF when selecting either TX or RX mode.
- Page 7 1 to 6. Listening to music When AA2085 is used as a receiver, you can connect it to a 3.5mm stereo headset or stereo speaker with a 3.5mm to 3.5mm audio cable to receive music from a Bluetooth transmitter with music, i.e. smartphones, laptops,...
- Page 8 Connected to a device Red LED flashes Low power Notes: The pairing mode will stop after 2 minutes. The AA2085 will enter standby mode if no devices are connected within 2 minutes. The AA2085 can only pair with a Bluetooth stereo/speaker receiver ...
- Page 9 After pairing is successful during receive mode, the AA2085 and the cell phone will remember each other and there is no need to re-pair again. The receiver can remember 8 devices, when the number of paired devices exceeds 8, the first one will be replaced.
- Page 10 Specifications Bluetooth specification Bluetooth V2.1 Bluetooth profiles A2DP and AVRCP Frequency range 2.402GHz-2.480GHz Operating distance Up to 10 metres DC 5V Charging input voltage Working time TX: Up to 11 hours RX: UP to 6 hours Charging time About 3 hours 51.4×34.7×8.6mm Dimensions 48.5g...
