Industrial Communications Worldwide

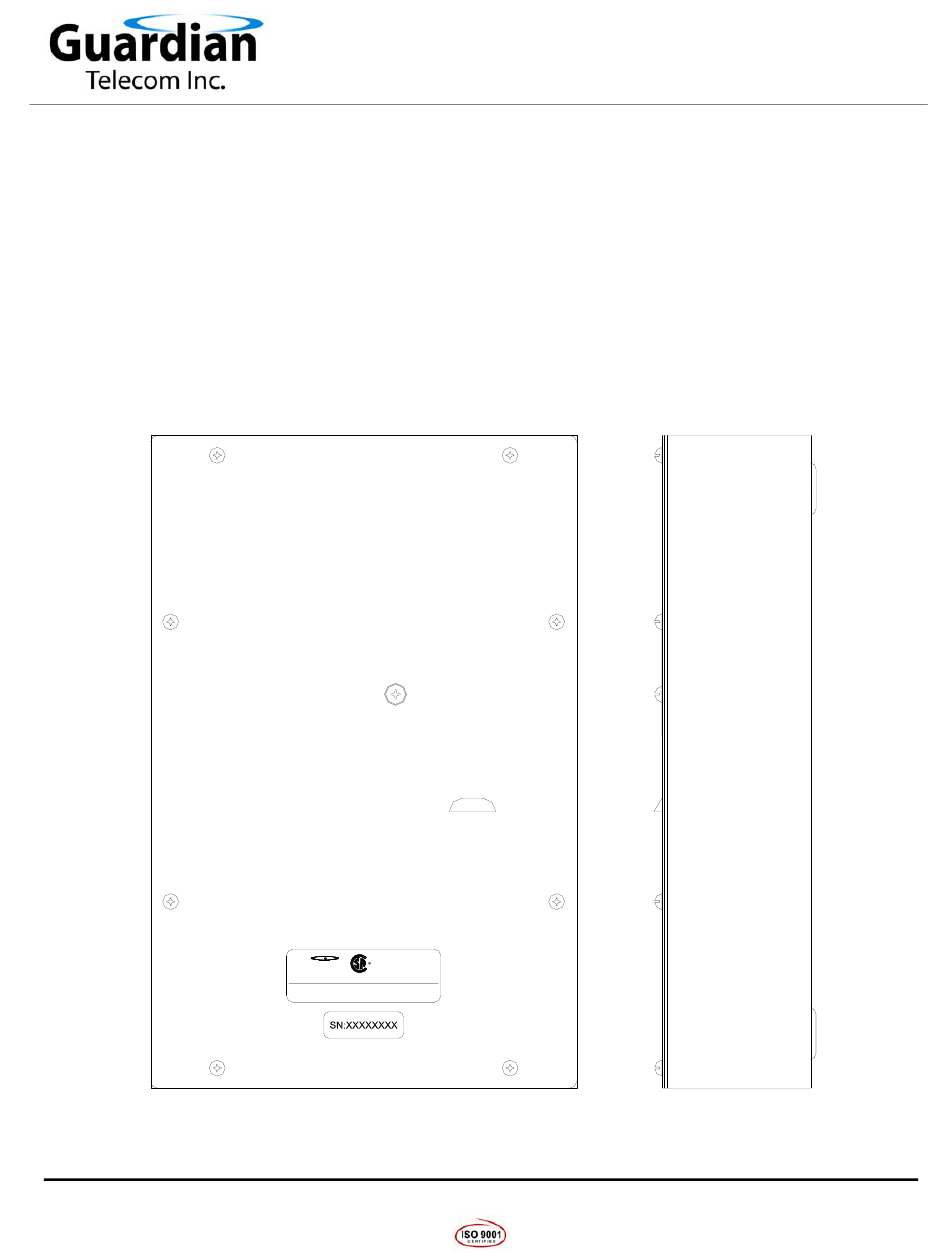

Page/Talk Paging Amplifier
Installation & Operation
STEEL INDOOR AMPLIFIER
Guardian
Telecom Inc.
CSA C22.2 NO. 205 M & 60950
C
US
UL 1604
1289924
www.guardiantelecom.com
INPUT = 120 VAC 50/60HZ 0.1A
FUSE = 0.5A 20MM FAST ACTING
OUTPUT = 24VDC 0.5A
FUSE = 0.75A 20MM SLO BLO
7000 Fisher Rd. S.E. Calgary Alberta, Canada T2H 0W3
Ph: 403.258.3100 \ email:info@guardiantelecom.com \ www.guardiantelecom.com
Model SIA
P005259 Rev. C 4/14/2004 3:12 PM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SIA and is the answer not in the manual?

Questions and answers

Summary of Contents for Guardian Telecom SIA

  • Page 1 Industrial Communications Worldwide Page/Talk Paging Amplifier Model SIA Installation & Operation STEEL INDOOR AMPLIFIER Guardian Telecom Inc. CSA C22.2 NO. 205 M & 60950 UL 1604 1289924 www.guardiantelecom.com INPUT = 120 VAC 50/60HZ 0.1A FUSE = 0.5A 20MM FAST ACTING OUTPUT = 24VDC 0.5A...
  • Page 2: Table Of Contents

    Guardian Product Return ..............11 Page/Talk Product Series Description..........12 Appendix - Typical Layout ..............13 Table of Figures Figure 1 - SIA Features and Dimensions ..........4 Figure 2 - Mounting ................4 Figure 3 - Electrical Connections............6 Figure 4 - Wiring ..................6 Figure 5 - Circuit Board Layout..............7...
  • Page 3: Overview

    Guardian's Page/Talk Systems provide reliable and easy to use paging and communication within industrial environments such as plants, mills and factories. The Model SIA Paging Amplifier described in this manual is designed for use in harsh, industrial environments. It provides the capability of adding additional speakers without the need for a paging station.
  • Page 4: Figure 1 - Sia Features And Dimensions

    INPUT = 120 VAC 50/60HZ 0.1A FUSE = 0.5A 20MM FAST ACTING OUTPUT = 24VDC 0.5A FUSE = 0.75A 20MM SLO BLO Ø1.375" 2PLCS. [Ø35mm] 6.0 [152mm] Figure 1 - SIA Features and Dimensions 6.0" [152mm] Figure 2 - Mounting Page 4...
  • Page 5: Installing The Sia

    Follow all appropriate electrical codes and use only approved electrical cover. fittings for the installation. • Choose a wall location that is free of obstructions and permits space for See: Figure 1 - SIA Features and conduit or wire. Dimensions •...
  • Page 6: Electrical Connection Details

    Guardian Telecom Inc. Installation and Operation Model SIA Electrical Connection Details Assignment Designation Description Jacket Color Stripe Color System Power J4A/J5A Black J4A/J5A White J4A/J5A Green Yellow Ambient Noise MIC + Microphone MIC - Speaker SPK + SPK - Page Line...
  • Page 7: Ambient Noise Level Adjustment

    Guardian Telecom Inc. Installation and Operation Model SIA Ambient Noise Level Adjustment The Ambient Noise Sensor on Guardian's Page/Talk stations automatically See: Figure 5 - Circuit Board Layout adjusts the volume of the associated loudspeaker up to 10dB, so that pages can be heard over the background noise.
  • Page 8: Group Muting

    Guardian Telecom Inc. Installation and Operation Model SIA Group Muting In order to avoid acoustical feedback it may be desirable in certain See: Figure 3 - Electrical circumstances to mute speakers associated with adjoining stations when Connections and Figure 5 - Circuit Board Layout.
  • Page 9: Engineering Specifications

    Guardian Telecom Inc. Installation and Operation Model SIA Engineering Specifications Electrical Requirements 24/120/240VAC, 24VDC NPUT OLTAGE 50/60H NPUT REQUENCY 120VAC/0.1A /0.5A 20 NPUT OLTAGE URRENT ERAMIC 240VAC/0.05A /0.25A 20 ERAMIC 24VAC/VDC/0.5A /0.75A 20 ERAMIC Speaker Amplifier 10 W UTPUT EVEL...
  • Page 10: Warranty

    Warranty Guardian Telecom warrants your product to be free of defects in material and workmanship for a period of one year. Guardian Telecom will repair or replace any defective unit that is under warranty free of charge. This warranty is null and void if any non-authorized modifications have been made to this product, or if it has been subjected to misuse, neglect, or accident.
  • Page 11: Guardian Product Return

    When a product has been installed following user manual instructions, and the unit fails to operate, the user must contact Guardian Telecom to obtain authorization to return the product. This can be done by completing a RMA form online at www.guardiantelecom.com, or by calling the service telephone number given in this manual.
  • Page 12: Page/Talk Product Series Description

    P5900 SIP-H-1 Single Line Wall Station, Class I, Div.2 P5905 SIP-H-5 Multi Line Wall Station, Class I, Div.2 P5951 SIA-H Amplifier Unit, Class I, Div. 2 P5910 DTP-H-1 Single Line Desk Set, Class I, Div.2 P5915 DTP-H-5 Multi Line Desk Set , Class I, Div.2 P5920 WTP-H-1 Single Line Weather Proof Wall Station, NEMA 4X, Class I, Div.2...
  • Page 13: Appendix - Typical Layout

    Guardian Telecom Inc. Installation and Operation Model SIA Appendix - Typical Layout Class I Div.2 CSA Type 4X Class I Div.1 Industrial Hazardous Areas Hazardous Areas Outdoors and Environments High Humidity Areas SR40 Desk Power Paging Supply SIP-H Amplifier Guard ian Telecom Inc.
  • Page 14 Guardian Telecom Inc. Installation and Operation Model SIA Notes: Model No. Part No. Serial No. Date of Purchase Page 14...
  • Page 16 Guardian Telecom Inc. 7000 Fisher Rd. SE Calgary, Alberta, Canada T2H 0W3 Toll-free 1-800-363-8010 Ph. (403) 258-3100 Fax. (403) 253-4967 www.guardiantelecom.com E-mail: sales@guardiantelecom.com Industrial Communications Worldwide © Guardian Telecom Inc. 2004...
