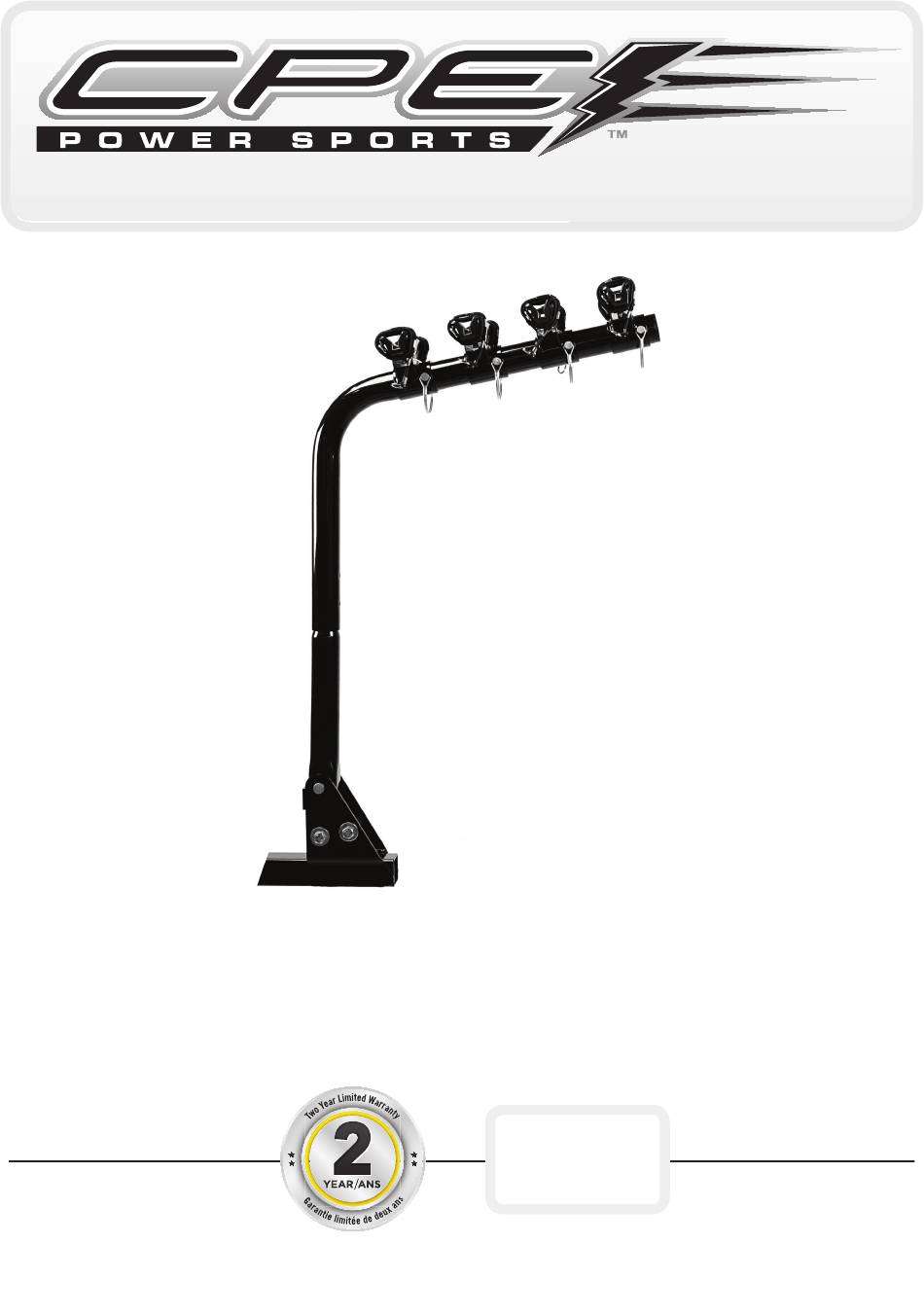

- Page 1 OWNER’S MANUAL & OPERATING INSTRUCTIONS BIKE CARRIER MODEL NUMBER 50054 10006 Santa Fe Springs Road SAVE THESE INSTRUCTIONS Santa Fe Springs CA 90670 Important Safety Instructions USA / 1-877-338-0999 MADE IN CHINA are included in this manual. REV 50054-20130910 www.championpowerequipment.com...
- Page 2 Have questions or need assistance? Do not return this product to the store! WE ARE HERE TO HELP! Visit our website: www.championpowerequipment.com for more info: • Product Info & Updates • Tech Bulletins • Frequently Asked Questions • Product Registration –...
-
Page 3: Safety Rules
DO NOT exceed the rated capacity of this bike carrier. Load no more than 4 bicycles, weighing less than 200 lbs total. DO NOT use this bike carrier for transporting or carrying other items or materials besides bicycles. REV 50054-20130910... - Page 4 (10) and secure with M8 x 60 bolts (11) and M8 lock nut (12). 3. Secure the support pole (10) to the square hitch tube (1) using an M12 x 90 bolt (2), two M12 washers (3) and M12 lock nut (4). REV 50054-20130910...
- Page 5 M12 x 58 bolt (6), M12 washer (3) and R-Pin (5). Note: The M12 x 58 bolt (6) must be inserted in the proper direction as shown above. NOTE Please follow the labels on the 1¼ Inch hitch adapter for proper insertion of the hitch adapter and bolts. REV 50054-20130910...
- Page 6 (8), M16 washer (7) and R pin (5) provided. 2. Lift a bicycle up to the horizontal bar of the rack and place the frame of the bicycle onto the cradle assembly (16). See image below. 5. Repeat actions for additional bicycles. REV 50054-20130910...
- Page 7 8. Make sure all bicycles are secure and stable before moving the vehicle. NOTE Check straps and cradles regularly during use. It’s a good practice to stop your vehicle after 500 feet and check the security of the mounted bicycles. REV 50054-20130910...
-
Page 8: Specifications
Lock Nut M8 50063-7 Horizontal Bar 50063-8 Straight Pin 8 mm 50063-9 Cradle Supporter 50063-10 Cradle Assembly GB/T820 M6x12 Screw M6X12 GB6186 M6 Lock Nut M6 50063-11 Adapter 2 in. - 1.25 in. 50063-12 Straight Pin 12 mm REV 50054-20130910... -
Page 9: Warranty
Champion Power Equipment (CPE) will register this warranty upon receipt of your Warranty Registration Card limits of Implied Warranty and Consequential Damage and a copy of your sales receipt from one of CPE’s retail Champion Power Equipment disclaims any obligation to locations as proof of purchase.
