User's Manual
Body Camera
DrivePro™ Body
Control Center
(Version 1.1)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DrivePro and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Transcend DrivePro

Summary of Contents for Transcend DrivePro

  • Page 1 User’s Manual Body Camera DrivePro™ Body Control Center (Version 1.1)

  • Page 2: Table Of Contents

    2-2 Connection Diagram ......................6 2-3 Downloading and Installing the Control Center client ........... 7 2-4 Setting/Changing RAID Modes ..................8 Using the DrivePro™ Body Control Center Software ............10 3-1 Status ..........................11 3-2 File Management ......................14 3-3 Server Management......................17 3-4 Camera Management ......................

  • Page 3: Introduction

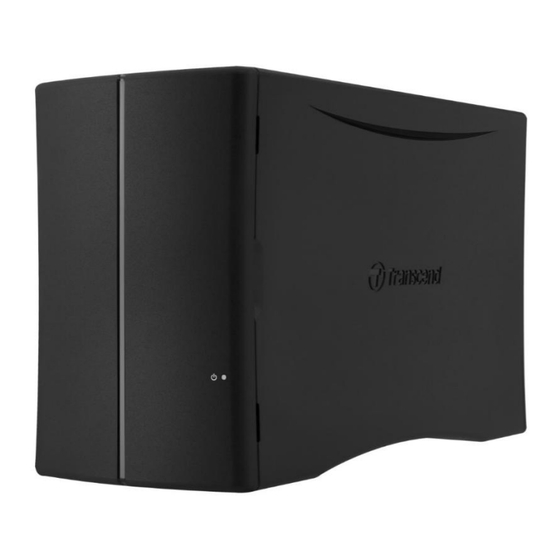

    1. Introduction This User's Manual covers the features and functions of the DrivePro Body Control Center, a network-based body camera management and video storage system which simplifies deployment of a complete body camera solution. Control Center is designed to operate seamlessly with Transcend DrivePro Body cameras and DPD6N docking stations.

  • Page 4: Getting Started

    2. Getting Started 2-1 Hard Drive Installation (for Diskless DBN1 only) *Please only use NAS-grade HDDs Notes:  To avoid damaging the DBN1 Control Center with static electricity, ground yourself by touching something made of metal before handling any sensitive electronic parts. ...
  • Page 5 2. Install NAS-grade hard drives (same capacity recommended) into the drive trays. 3-1. Affix the two front screws. 3-2. Insert the steel plate in the correct direction. 3-3. Affix the rear screw.
  • Page 6 4-1. Reinsert the drive trays back into the empty drive slots. 4-2. Replace the front panel.

  • Page 7: Connection Diagram

    WAN port of the DPD6N Network Docking Station. The DBN1 Control Center allows up to twelve DrivePro Body cameras to upload simultaneously, and up to forty users to access and manage files at the same time.

  • Page 8: Downloading And Installing The Control Center Client

    2-3 Downloading and Installing the Control Center Client 1. Download the Control Center Client from the provided download link. On any Client PC, click and run “Installer.exe”, press “Install”, and wait for the installation progress to complete. 1. When installation is completed, the software will open automatically. 2.

  • Page 9: Setting/Changing Raid Modes

    2-4 Setting/Changing RAID modes You may set or change RAID modes in the two situations below: 1. For diskless DBN1 Control Center setup: After installing the hard drives (See 2-1 Hard Drive Installation (for Diskless DBN1 only)), use the Control Center Client to connect to the DBN1 Control Center unit. You will be asked to select one of the RAID types.
  • Page 10 2. When users want to change RAID modes: Click on the “RAID Settings” button on the Status page. Note: If you change RAID modes, all data on the unit will be permanently deleted! Please make sure you have backed up your data beforehand.

  • Page 11: Using The Drivepro™ Body Control Center Software

    2. Using the DrivePro™ Body Control Center Client Transcend’s exclusive DrivePro Body Control Center software is a centralized management system developed for DrivePro Body 30 and DrivePro Body 60 body cameras. The system supports simple file management, account management, and device management to facilitate deployment of a complete body camera solution.

  • Page 12: Status

    3-1 Status On the Status page, you can view the basic information of connected DrivePro Body cameras and DPD6N Network Docking Stations, including device serial number, agent ID, battery status, backup status. In addition, you can view the current status of your DBN1 Control Center unit, such as the current IP address and disk status.
  • Page 13 Select the docking station you want to add and click on “Add”. If the docking station is successfully added, you will see the screen below. To assign an account to a specific body camera, click on the camera that you want to assign.
  • Page 14 Once an account has been assigned to a camera, the account name will be shown in the camera’s status field. To enable Team Sync, select a team number and press the “Set” button. If one camera enters recording mode from buffering mode, other cameras in the same team will automatically enter recording mode as well.

  • Page 15: File Management

    “Change” button. 3-2 File Management On the File Management page, you can manage and edit videos or photos. You can also search for media in the Search bar, export, or burn files to a CD/DVD. To modify a category, an agent ID, or a description, click on the icon.
  • Page 16 icon, and click on “Save to” to export the video to a To download a video, click on the desired destination. You can also select and burn videos to a CD/DVD by clicking on the icon. To delete files, select the files and click on the icon.
  • Page 17 To view the video in a larger player view, click the icon on the lower right corner of the media player.

  • Page 18: Server Management

    To hide the Map and enlarge the video frame, click 3-3 Server Management On the Server Management page, you can manage key settings under Archive, Permissions, and Account. Archive Edit the data retention period, log retention period, and list of categories.
  • Page 19 Add a new data retention description. Data Retention Delete a selected description. Edit a selected description. Log Retention Edit the log retention period. Add a new file category. Category Delete a selected category. Edit a selected category. Permission Manage the permission settings for different levels of users.
  • Page 20 Manage the access levels for users of the DrivePro Body Control Center. When checked, the following functions will be made available to users at that level. Main Menu File Management Show or hide this page to users of a certain level.
  • Page 21 Retention video. Edit Video Description Enable to allow users to edit video descriptions. Enable to allow users to export videos to a local storage or Export Video burn them to CD/DVDs. Sever management Data Retention Period Enable to allow users to change the data retention period. Enable to allow users to change the log retention period.

  • Page 22: Camera Management

    Export Log Enable to allow users to export log history to a local storage. Account Manage user account information. Add, delete or edit user accounts. Add a new user account. Delete a selected user account. Edit a selected user account. Click on the icon to change the password of the admin account 3-4 Camera Management...
  • Page 23 Camera Adjust the settings of all connected cameras such as video resolution, time format, default recording mode, etc. Click to modify settings.
  • Page 24 Embed time of the event being recorded and the video label into the image or video. Video Stamp Available options: ON / OFF Display the Transcend logo watermark. Watermark Available options: ON / OFF Enable/Disable the image stabilization function. Image Stabilization Available options: ON / OFF (For DPB30 only) Select the 24-hour or 12-hour AM/PM time format.
  • Page 25 Check to automatically unassign device after device backup after backup is is completed completed Auto unlock device with Check and set default password to unlock all devices, or set individual password to unlock specific device provided password Firmware Update the firmware of the connected DrivePro Body cameras.
  • Page 26 To check and download the latest DrivePro Body camera firmware from Transcend, click button. To upload the firmware manually, click the button.

  • Page 27: Log Display

    3-5 Log Display On the Log Display page, you can view the system log of all users’ actions. Only the administrator has access to the system log. To export the log, click...

  • Page 28: Preference

    3-6 Preference Click on on the top right of the Control Center window to adjust system preferences. Language Select your language. Server host name or IP To connect to another server, click “Change”. address Run on Windows Automatically run the software when Windows starts. startup...

  • Page 29: End-User License Agreement (Eula)

    Licensed Software; (e) remove, alter or obscure any copyright notice or other proprietary rights notice on the Licensed Software or Product; or (f) circumvent or attempt to circumvent any methods employed by Transcend to control access to the components, features or functions of the Product or Licensed Software.
  • Page 30 OR OTHERWISE, EVEN IF TRANSCEND HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. 8. Limitation of Liability. IN ANY CASE, TRANSCEND 'S LIABILITY ARISING OUT OF OR IN CONNECTION WITH THIS AGREEMENT WILL BE LIMITED TO THE TOTAL AMOUNT...

  • Page 31: Gpl Disclosure

    Agreement or any breach thereof, in any one instance, will not waive such term or condition or any subsequent breach thereof. (e) Transcend may assign its rights under this Agreement without condition. (f) This Agreement will be binding upon and will inure to the benefit of the parties, their successors and permitted assigns.

  • Page 32: Federal Communications Commission (Fcc) Statement

    - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. Transcend Information Inc (USA) 1645 North Brian Street, Orange, CA 92867, U.S.A TEL: +1-714-921-2000...
