List Of Parts; Usage Guide - CVTECH WINNY COMPACT 16 MINI User Manual

5.
1. Insert the Power Supply cord(2) and turn on the Power Supply switch (1). The "Power" in-
dicator light will stay lit, indicating that the central vacuum unit is receiving power supply. The
central vacuum unit is now ready for use. This appliance leaves the factory ready for use. It
2. In order to prepare the hose connect the end to the wand and the appropriate brush for the
type of surface you are going to vacuum.
3. Introduce the other end of the hose in the closest vacuum inlet valve. When you introduce
the hose into the vacuum inlet, a low voltage signal is transmitted to the central vacuum unit
making it start. The system is ready for use.

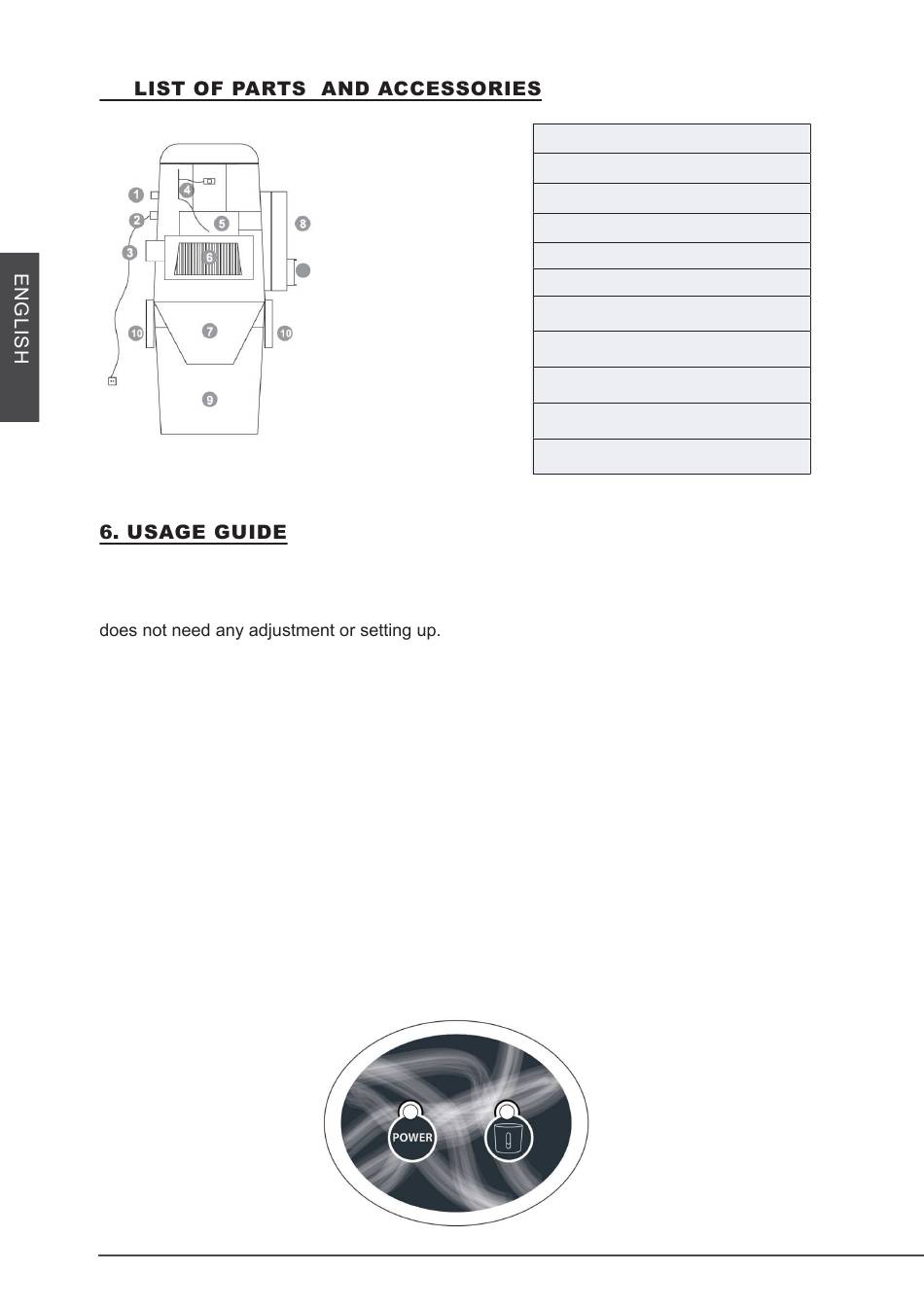

INFORMATION PANEL WINNY COMPACT 16 MINI BY CVTECH
POWER BUTTON (1):
supply.
DUST TANK BUTTON (2):
is full and it must be emptied. To perform this kind of maintenance check the "Cleaning and
maintenance" section.
In the event of not performing maintenance when required, the central vacuum unit will lose
suction power and increase the risk of dust passing into the motor.
14
INSTRUCTIONS MANUAL WINNY COMPACT 16 MINI
11
This button will always be lit when the unit is connected to the power
When this pilot light lights up, it means that the dust container
(1)
1. POWER SUPPLY SWITCH
2. POWER SUPPLY CABLE AND PLUG
3. AIR INLET
4. INFORMATION PANEL
5. MOTOR
6. REMOVABLE FILTER
7. CYCLONE FUNNEL
8. EXHAUST MUFFLER
9. DUST CONTAINER
10.OPENING CONTAINER HANDLES
11. AIR OUTLET
(2)
