Apollo WM808NA Installation Manual

max
7.6CM
115Kg
(3.0")
255lbs max 800x500
NOTE: We recommend that this product is installed by the professional only. we accept no liability for damages caused
by incorrect assembly, installation or use. If there is any doubt, please contact the specialist from the seller for help.
IMPORTANT!
• For safety reasons, the wall or mounting surface must be capable of supporting the combined weight of the mount and
the display; otherwise the structure must be reinforced.
• Safety gear and proper tools must be used. Failure to do so can result in property damage and/or serious injury.
• Make sure that no electrical cables, water pipes or gas pipes are located within the wall.

Tools required for the installation:

• Phillips Head Screw Driver
• Electric or Portable Drill
• Ratchet Driver with 1/2" (13 mm) Socket
Also make sure that all of the hardware has been included with your mount.You should find the following:
(E) M4X20
(H) M8X30
(G) M5X20

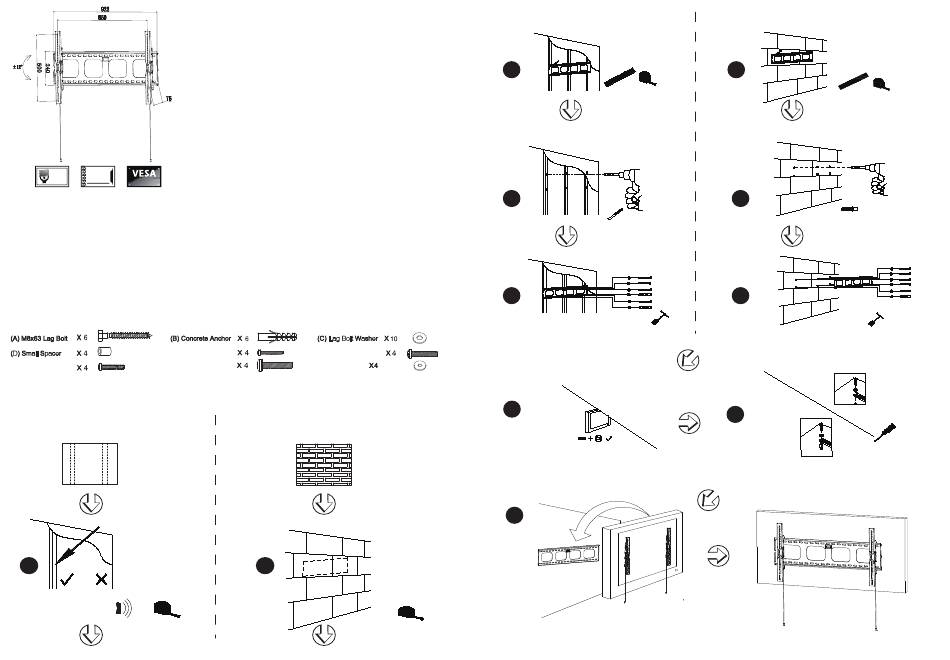

Installing the Wall Mount

Drywall Installation

Center of the stud
1
Stud Finder Tape Measure

IMPORTANT SAFETY INSTRUCTIONS

CAUTION:
A CAUTION alerts you to the possibility of damage or
destruction of equipment if you do not follow the corresponding
instructions. Not following all instructions can result in serious
personal injury,damage to equipment, or voiding of factory
warranty! It is the installer's responsibility to make sure all
components are properly assembled and installed using the
instructions provided.
WARNING:
Failure to provide adequate structural strength for
this component can result in serious personal injury or damage to
equipment! It is the installer's responsibility to make sure the
structure to which this component is attached can support five
times the combined weight of all equipment. Reinforce the
structure as required before installing the component.
WARNING: Make sure that no electrical cables, water pipes or
gas pipes are located within the wall.
• 6 mm Drill Bit + Stud Finder ( Drywall Installation )
• 10 mm Masonry Bit ( Concrete Installation )
(F) M6X20
(I) M6 washer

Concrete/Brick Installation

1
2
3
4
Fix the wall plate to the wall
using the Lag Bolt (A) provided.
5
Choose the proper bolts for installation.
7
Tape Measure
Hang the TV on the wall plate.
Make sure it is level
Use a pen to mark
off the locations
2
3
4
Fix the wall plate to the wall
using the Lag Bolt (A) provided.
6
Install the screen on the display plate.
Pull the cord to lock the the bracket to the wall plate
Make sure it is level
Use a pen to mark
off the locations
Insert one Concrete Anchor (B)
into each hole.
