SLE Water Bottle Camera User Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
Secure Law Enforcement
Water Bottle Camera
Version
1
1.4

Advertisement

loading
Need help?

Need help?

Do you have a question about the Water Bottle Camera and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for SLE Water Bottle Camera

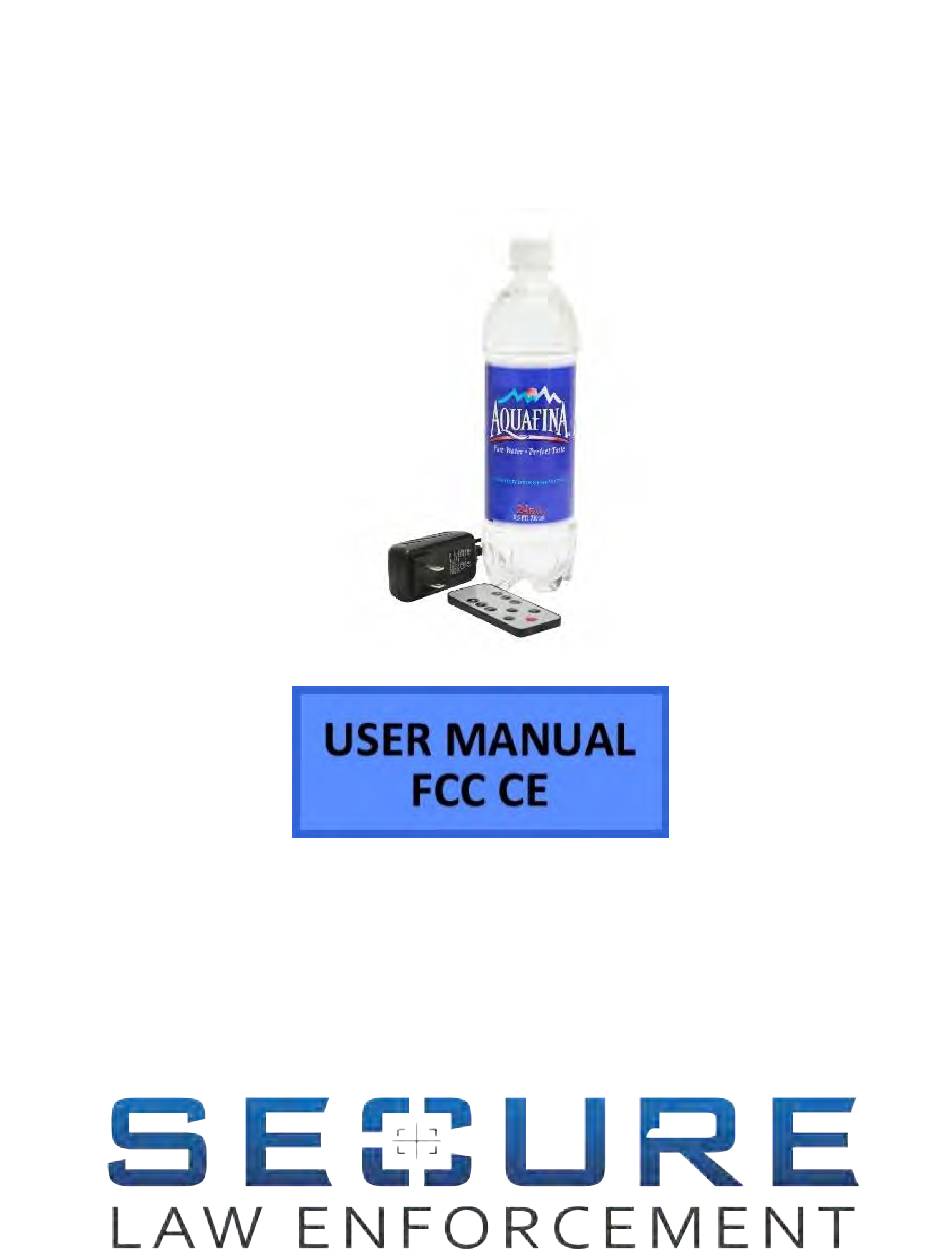

  • Page 1 Secure Law Enforcement Water Bottle Camera Version...
  • Page 2 Thank you for purchasing our Secure Law Enforcement Camera Please read this manual before operating the camera and keep it handy. Your purchase should include:  1 x OmniBottle  1 x AC Wall Charger  1 x MicroUSB Cable ...
  • Page 3 GET FAMILIAR WITH YOUR OMNIBOTTLE HIDDEN CAMERA Version 1.4...
  • Page 4 Version 1.4...
  • Page 5 Version 1.4...
  • Page 6 Charging your Camera 1. First, you can connect the provided charging cable to the battery charging port on the 3D printed housing inside the bottle. The LED indicator light will be on as long as the cable is connected. We recommend charging for 4-6 hours to get a full charge.

  • Page 7: Operating The Camera

    light, and when the battery is fully charged the light will become blue. OPERATING THE CAMERA HOW TO TURN ON THE CAMERA 1. Your device can be powered on in one of two ways. a. Connect your device to an AC outlet using the provided AC wall charger.
  • Page 8 button on the remote (see page 4). The Green light will blink once and then the Red light will blink 3 more times and turn off (if motion is detected immediately). The device is now in motion detection mode. NOTE: If the light doesn’t come on, try many different angles when pressing the power button and pointing it at the front/top of the unit.
  • Page 9 2. Once the Indicator LED turns off, the camera is now recording video. HOW TO STOP RECORDING VIDEO 1. While the camera is recording video, press the “Continuous Recording Button” once more. (The Indicator LED will turn on.) 2. The camera has now stopped recording and is now in Standby Mode.
  • Page 10 3. If there is no motion after 1 minute, the device will return to detection standby mode until motion is detected again. While waiting, the Green light will be on. NOTE: If you activate motion detection and there is no motion currently in front of the camera, there will be no indication you have entered into motion mode.
  • Page 11 HOW TO USE PIR SENSOR (If Applicable) Note: The “Motion Detection” mode and “PIR” mode work similarly in that they detect motion. The “Motion Detection” mode relies on the camera itself to detect motion, while the “PIR” mode relies on the PIR sensors to detect motion.
  • Page 12 Your OmniBottle comes with an A/V cable that is used to connect the device to a monitor/TV so that you can adjust various settings. 1. Connect your device to a monitor/TV using the provided A/V Cable. (See page 3 to locate the AV port in your device.) 2.
  • Page 13 d. Video Time – When in continuous recording mode, this setting determines how long video files will be before the current recording is stopped and a new recording is started. e. Audio Record (if applicable) – If you purchased your device with audio recording capabilities, you can turn audio recording ON or OFF here.

  • Page 14: Microsd Card Slot

    k. Setup -> Light Freq – Select different light frequencies. We recommend that you do not adjust this setting. l. Setup -> Date Format – Choose from various date/time formats (MM/DD/YYYY, DD/MM,YYYY, Etc.) m. Setup -> Date Input – Set the current date.
  • Page 15 and they should face the main circuit board. You will feel some spring resistance before the card clicks in to place. a. Never force the card into the Card Slot under any circumstances. Otherwise, the unit or the MicroSD card itself will be damaged.
  • Page 16 IMPORTANT NOTICE: Ensure that the device is off before inserting the MicroSD card. Otherwise potential corruption of the card file(s) may occur. RETRIEVE THE FILES TO YOUR PC 1. Remove the MicroSD Card from the device and plug it into your computer using the supplied card reader.
  • Page 17 Or… Go to Start > Computer > Removable Disk 3. Open the Removable Disk drive. 4. Open the [folder name] folder. Version 1.4...
  • Page 18 5. Double click the file you want to view.  VLC Player is recommended for watching videos. If you are having video playback issues, such as a completely black video recording or “squiggly lines”, we recommend you use VLC media player to play back the videos.
  • Page 19  To delete a file, right click your mouse on the file name and choose “Delete” from the menu. You can quickly select all of the files by pressing “CTRL+A” on your keyboard.  If you are using MAC OS X, you must empty the trashcan after you delete a file.

  • Page 20: Troubleshooting

    TROUBLESHOOTING THE DEVICE WON’T TURN ON  Make sure the power cable is securely plugged into a functioning electrical outlet or the battery is charged. THE DEVICE HAS CRASHED  Press the reset button one time while the device is on. DEVICE CONTINUALLY RECORDS IN MOTION MODE ...

  • Page 21: Specifications

    SPECIFICATIONS Video 1920x1080 Resolution Video Format .MP4 Frames per 30 fps Second Vision Angle 65° Battery Life 10 Hours Continuous Recording Up to 30 Days in PIR Mode (if applicable) Motion 8 meters for straight-line Detection distance Photo 2560x1920 Resolution Photo Format .JPG Type of Memory...
  • Page 22 Recording Usage 10mins per 1GB USB Interface 2.0 USB Player Software VLC recommended Video H.264 Compression Version 1.4...
  • Page 23 Version 1.4...
  • Page 24 QUALITY CONTROL CHECKLIST ☐ Remote ☐ Wall AC Adapter ☐ ___GB MicroSD Card ☐ Micro USB Cable ☐ 3.5mm to USB Cable ☐ A/V Cable ☐ MicroSD Card Reader ☐ Charging Adapter with Indicator Light ☐ OmniBottle QC Tech:____________________________________ Date: ______________________________ Version 1.4...
