WIRING
WARNING – For wiring and installation operations, refer to the standards in force and,
however, to the good technical practice. The wires must be provided with an additional
fastening at the terminals, for example using cable clamps. All the wiring operations
must be carried out by qualified personnel only .
The Espas10 MoneyBOX Plus has a practical terminal block on the bottom where the
technician can lay the following wiring with the maximum attention and under safety
conditions.:
- Barrier opening control (standard control for electromechanical barriers,
use cable of appropriate section)
- power supply 230Vac

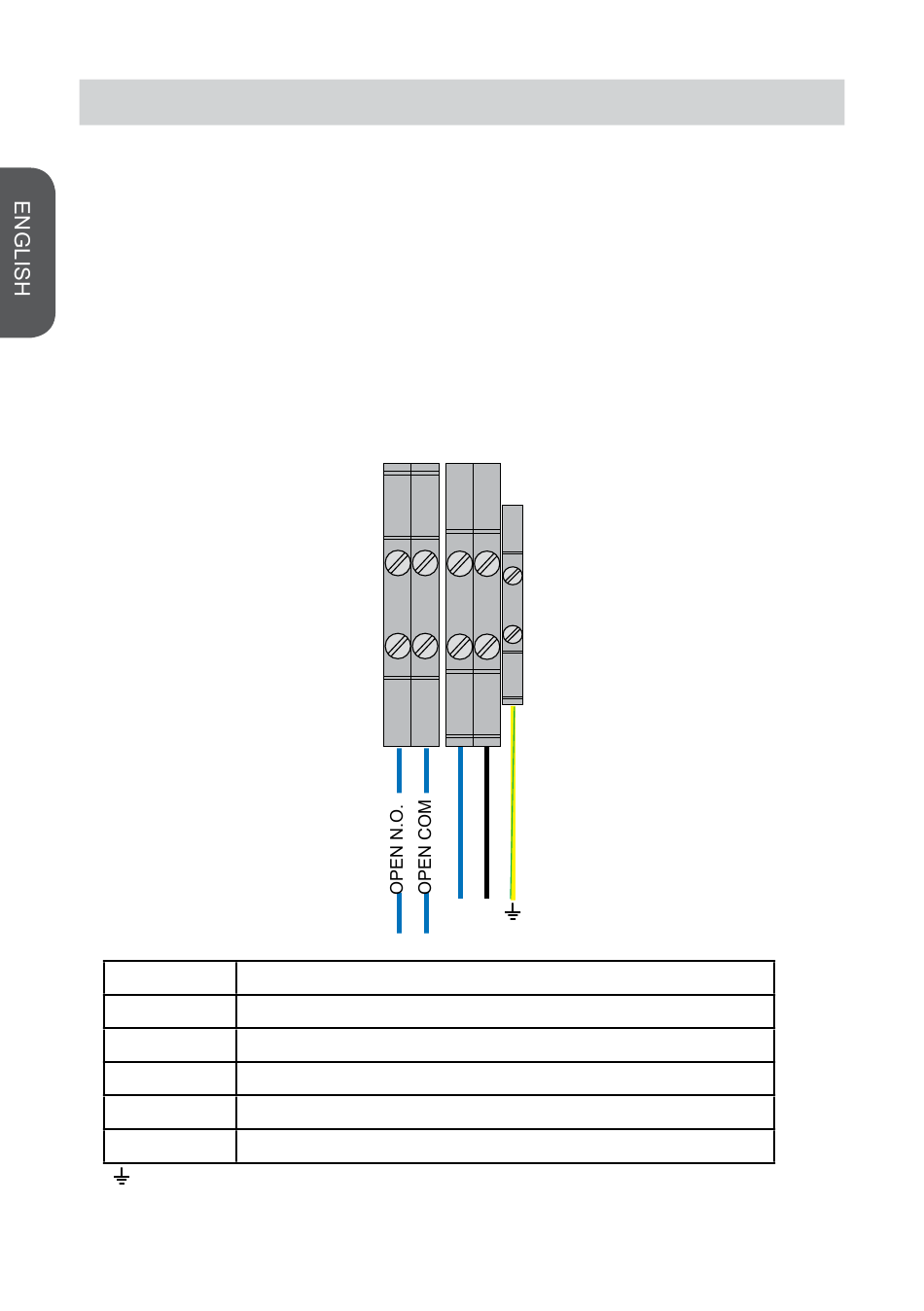

Connection table

Terminals Description
OPEN N.O. N.O. Contact – open barrier
OPEN COM Common contact Open-Close
L Line 230Vac
N Neutral 230Vac
Ground
Espas10 MoneyBOX Plus- User Manual
LN
230Vac
rel. 01-2012 PAG. 14
