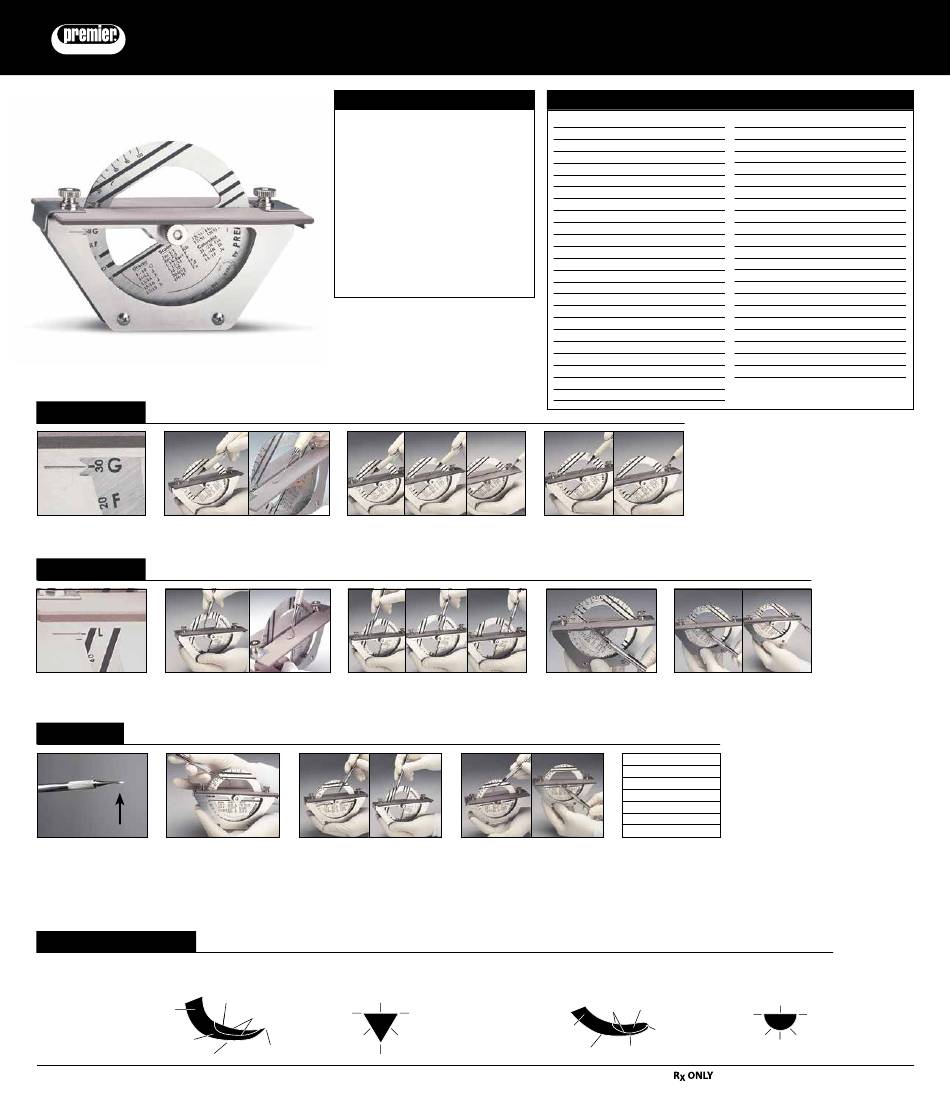

Premier D.I.S.C. Quick Manual

D.I.S.C.

One-Sided Blade

Turn the protractor dial to the Hold the instrument with the handle parallel
appropriate dial setting (Example: to the Instrument Reference Lines. Position the
"G" for any Gracey 1-10). working end towards the center.

Two-Sided Blade

Turn the protractor dial to the Hold the instrument with the handle parallel
appropriate dial setting for the to the Instrument Reference Lines. Position the
first cutting surface (Example: "L" working end towards the protractor.
for a 204S Scaler).

Unlisted Blade

Identify the cutting surface(s) of Hold the instrument so that the cut-
the instrument. ting surface is perpendicular
to, and above the stone, with
the tip/toe pointing towards
the protractor.

Parts of an Instrument Blade

A. The two cutting edges meet in a pointed end. A. The two cutting edges meet in a pointed end.
shank shank
lateral lateral
side side
back
Premier® Dental Products Company
• 1710 Romano Drive • Plymouth Meeting, PA 19462 • 610-239-6053 • www.premusa.com
™
The Cutting Edge in Precision Sharpening

HELPFUL TIPS TO REMEMBER

Always keep the tip/toe pointed to the center
1
of the D.I.S.C.
2 Always keep the handle (not the shank) of the instru-
ment parallel to the Instrument Reference Lines.
When sharpening instruments, make sure that only
3
the cutting surface of the working end (as compared
to the shank) is touching the stone to avoid weaken-
ing the integrity of the shank.
4 Avoid re-tipping of instruments, as this can cause
stress fractures of the handle.
5
No lubrication necessary using the D.I.S.C.
6
From time to time, clean the ceramic stones using
a mild abrasive pad (without cleaners/chemicals)
under running water.
Keeping the wrist stiff, use a pull-stroke with moderate
pressure (repeat 5 or 6 times).
Keeping the wrist stiff, use a pull-stroke with moderate
pressure (repeat 5 or 6 times).
Lower the instrument handle in a clockwise
manner until the stone is in optimal contact
with the cutting surface (avoid going too low
and making contact with the shank of the
instrument). While holding the instrument
in this position, turn the protractor dial until
the Instrument Reference Lines are parallel
to the instrument handle. Sharpen in the
usual manner.
SICKLE SCALER
B. Cross-section - a triangular shape. B. Cross-section - a triangular shape.
face face
face
cutting cutting
cutting cutting
edges edges
edge edge
lateral lateral
surface surface
tip tip
back
back
Gracey 1-10
Gracey 11/12
Gracey 13/14
Gracey 15/16
Gracey 17/18
McCalls 13/14
McCalls 17/18
McCalls 13S/14S
McCalls 17S/18S
Columbia 2L/2R
Columbia 4L/4R
Columbia 13/14
204S
H204S
H204SD
Barnhart 1/2
Barnhart 5/6
Langer 1/2
Langer 3/4
Langer 5/6
Langer 17/18
U15 / Jac 1
Jac 1/1
Jac 2/3
On a curette, roll the instrument as you finish
your pull-stroke to avoid sharpening the toe
of the instrument.
Change the dial setting for the
second cutting surface (Example:
"d" for a 204S Scaler). Notice that
the Instrument Reference Lines are
now going down from left to right.
If the instrument has two cutting surfaces, hold
the instrument so that the cutting surface is
perpendicular to, and below the stone, with the
tip/toe pointing towards the protractor. Raise
the instrument in a counter-clockwise manner
until the stone is in optimal contact with the
cutting surface (avoid going too high and mak-
ing contact with the shank of the instrument).
While holding the instrument in this position,
turn the protractor dial until the Instrument
Reference Lines are parallel to the instrument
handle. Sharpen in the usual manner.
A. The cutting edges come together in a spoon shape. A. The cutting edges come together in a spoon shape.
face
cutting
edges
cutting cutting
edge edge
shank shank
lateral lateral
surface surface
back
surface
back
D.I.S.C™ Scaler & Curette Angles*
G
Jac 34/35
J
H6/H7
15˚
H5/33
J
U15/33
b (or -10˚)
U15/30
50˚ -15˚
Younger Good 7/8
H b
Younger Good H-7/8 30˚
H b
Neb 128
H b
NV1 Scaler
G a
NV1 Scoop
I b
NV2
J c
NV4
L d
137 Scaler
70˚ -45˚
137 Currette
50˚ -10˚
135
50˚ -20˚
Morse 0/00
50˚ -20˚
Wil 8
35˚ 0˚
Ball 5/6
40˚ -20˚
UT 107/108
20˚
S107/S108
40˚ -20˚
GF 21
F
CK6
F
SIUFW204
K b
*There may be slight variations in setting with other manufacturer's instruments. You can
fine tune your instruments settings by following the directions for unlisted blades. **As you
pull the disc shaped scoop end across the stone, turn it so that it sharpens around the scoop.
At the end of the sweep, you should have turned the scoop 2/3 around. Now, sharpen on
other side the same way. You do not want to finish one side at the top of the scoop, or it will
start to become a point.
Move the instrument to the other side of
the protractor dial - sharpen the cutting
surface with a moderate pull-stroke (keeping
the wrist stiff) - notice that the instrument
handle will be below the stones.
Identify the dial setting(s) and
record them above.
CURETTE
B. Cross-section - a half circle shape. B. Cross-section - a half circle shape.
cutting
face
face face
edges
cutting cutting
edge edge
toe toe
lateral lateral lateral
surface
surface back surface
lateral lateral
back
surface
Made in U.S.A.
40˚ 0˚
F a
10˚
F
15˚
30˚ -5˚
-5˚
15˚
15˚
G**
65˚ -35˚
35˚ 0˚
15˚
15˚
50˚ -20˚
10˚
30˚ -10˚
50˚ -25˚
40˚ 0˚
70˚ -30˚
15˚ 15˚
80˚ -30˚
40˚ -15˚
face
cutting cutting
edge edge
lateral
surface
back
