OPERATING HINTS FOR GROUNDGLASS BACK MASTER TECHNIKA CLASSIC AND
MASTER TECHNIKA 3000
DETACHABLE GROUNDGLASS BACK OF MASTER TECHNIKA CLASSIC AND
MASTER TECHNIKA 3000
For adapting the new Rapid Change Adapter Slide (001618) operating digital
backs the groundglass back can now be removed.

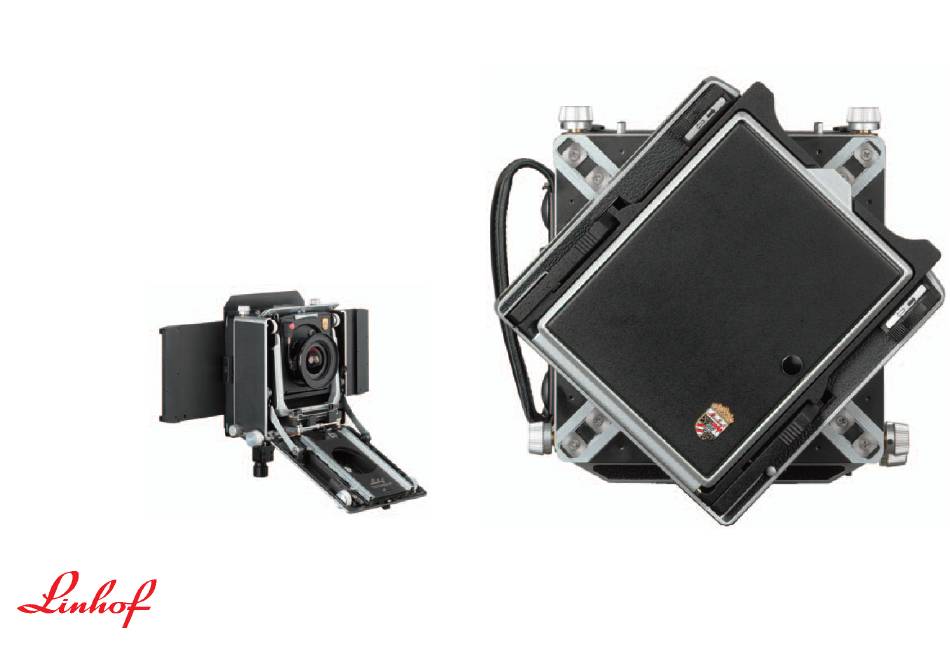

Push the release push-button (39) of the revolving frame for unlocking and
turn the revolving back (24) by 45 degrees. By pulling-out the 4 holding slides
(red arrows) the total groundglass back is unlocked. The back can be taken-
off and can be replaced by the Rapid Change Adapter Slide.
For adapting the
Master Technika
Rapid Change
Adapter Slide the
revolving back can
now be removed.
