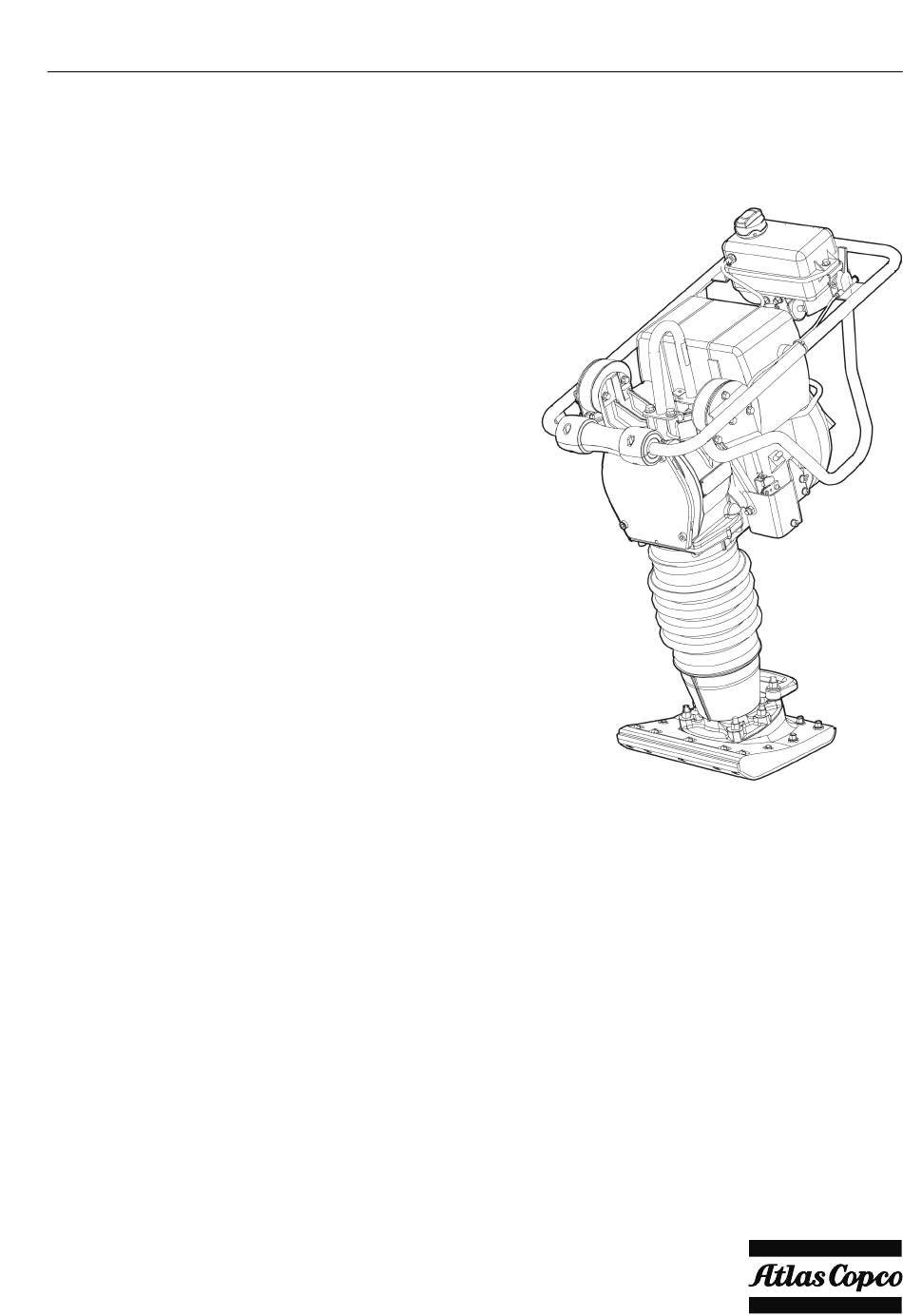

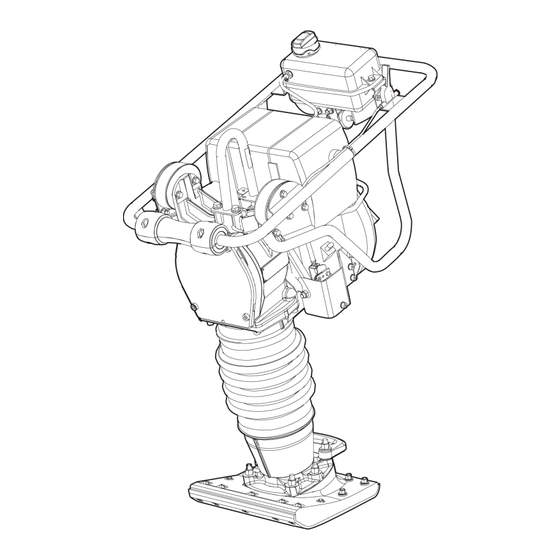

- Page 1 Safety and operating instructions Rammer © 2011 Atlas Copco Construction Tools AB | No. 9800 1139 01 | 2011-04-01 Original instructions...
-
Page 3: Table Of Contents
Disposal................19 © 2011 Atlas Copco Construction Tools AB | No. 9800 1139 01 | 2011-04-01... - Page 4 EC Declaration of Conformity (EC Directive 2006/42/EC)......23 © 2011 Atlas Copco Construction Tools AB | No. 9800 1139 01 | 2011-04-01...
-
Page 5: Introduction
Safety and operating instructions Introduction Thank you for choosing a product from Atlas Copco. Since 1873, we have been committed to finding new and better ways of fulfilling our customers' needs. Through the years, we have developed innovative and ergonomic product designs that have helped customers improve and rationalize their daily work. -
Page 6: Safety Instructions
Fill the fuel tank at least ten meters (30 Protective gloves ● feet) from the place where the machine is to be used. Proper protective boots ● © 2011 Atlas Copco Construction Tools AB | No. 9800 1139 01 | 2011-04-01 Original instructions... - Page 7 Pay attention and look at what you are doing. clothes before leaving the worksite to reduce exposure of dust and fumes to yourself, other persons, cars, homes, and other areas. © 2011 Atlas Copco Construction Tools AB | No. 9800 1139 01 | 2011-04-01 Original instructions...
- Page 8 It is also important not to keep the start and stop device engaged while extracting the machine from the broken work surface. © 2011 Atlas Copco Construction Tools AB | No. 9800 1139 01 | 2011-04-01 Original instructions...
-
Page 9: Transport, Precautions
If the machine seems to have hit a concealed ► object, switch off the machine immediately. © 2011 Atlas Copco Construction Tools AB | No. 9800 1139 01 | 2011-04-01 Original instructions... -
Page 10: Maintenance, Precautions
Storage, precautions ♦ Keep the machine in a safe place, out of the reach of children and locked up. © 2011 Atlas Copco Construction Tools AB | No. 9800 1139 01 | 2011-04-01 Original instructions... -
Page 11: Overview
Rated power kW Year of Mfg roduct dentification umber Made in Sweden Made in Sweden Fuel filter Air filter Oil dipstick Oil drain plug © 2011 Atlas Copco Construction Tools AB | No. 9800 1139 01 | 2011-04-01 Original instructions... -
Page 12: Data Plate
Warning label - Compressed spring package Throttle indication Read the service manual. Warning label - Hot surfaces Never touch the silencer and exhaust system. © 2011 Atlas Copco Construction Tools AB | No. 9800 1139 01 | 2011-04-01 Original instructions... -
Page 13: Transport
Never smoke when filling the fuel tank or when working with the machine or servicing it. ► Avoid spilling fuel and wipe off any fuel spilled at the machine. © 2011 Atlas Copco Construction Tools AB | No. 9800 1139 01 | 2011-04-01 Original instructions... -
Page 14: Operation
We recommend that you study the engine manual supplied with the machine. Check that the maintenance routines have been carried out. © 2011 Atlas Copco Construction Tools AB | No. 9800 1139 01 | 2011-04-01 Original instructions... -
Page 15: Starting The Engine
2. Slowly pull the starting cable out 5 times. ♦ If the machine tips over during operation, switch 3. Repeat the starting procedure. off the engine before lifting it up. © 2011 Atlas Copco Construction Tools AB | No. 9800 1139 01 | 2011-04-01 Original instructions... -
Page 16: When Taking A Break
Check or clean the engine's cooling flanges. See the engine manual for more information. ♦ Check that the controls are not damaged or do not jam. © 2011 Atlas Copco Construction Tools AB | No. 9800 1139 01 | 2011-04-01 Original instructions... -
Page 17: Checking The Oil Level
Check the oil level in the spring-loaded leg through the sight glass (A). The level must be at the middle of the sight glass when the machine is in the upright position. © 2011 Atlas Copco Construction Tools AB | No. 9800 1139 01 | 2011-04-01 Original instructions... -
Page 18: Changing The Engine Oil
5. Refit the sight glass and tighten. The oil level for more information. must be at the middle of the sight glass. ♦ Replace piston rings. See engine manual for more information. © 2011 Atlas Copco Construction Tools AB | No. 9800 1139 01 | 2011-04-01 Original instructions... -
Page 19: Disposal
Apply a light coat of oil on the shoe to prevent it from rusting. ♦ Cover the machine and store it in a dry, dust-free area. © 2011 Atlas Copco Construction Tools AB | No. 9800 1139 01 | 2011-04-01 Original instructions... -
Page 20: Technical Data
We, Atlas Copco Construction Tools AB, cannot be held liable for the consequences of using the declared values, instead of values reflecting the actual exposure, in an individual risk assessment in a work place situation over which we have no control. -
Page 21: Noise And Vibration Data
Permitted working hours per day are calculated on action value of 2.5 m/s as per 2002/44/EC. Uncertainties, sound value Uncertainties, sound value Type Kwa dB(A) Kpa dB(A) LT 800 1.5-2.5 2.5-3.5 Uncertainty factor for gravel bed. © 2011 Atlas Copco Construction Tools AB | No. 9800 1139 01 | 2011-04-01 Original instructions... -
Page 22: Dimensions
LT 800 Dimensions mm (in.) *Contact area, m (sq feet). 0.065 (0.70)*/ 280 (11.0)/ 0.075 (0.81)* 330 (13.0) 330 (13.0) 422 (16.6) 810 (31.9) © 2011 Atlas Copco Construction Tools AB | No. 9800 1139 01 | 2011-04-01 Original instructions... -
Page 23: Ec Declaration Of Conformity
EC Declaration of Conformity EC Declaration of Conformity (EC Directive 2006/42/EC) We, Atlas Copco Construction Tools AB, hereby declare that the machines listed below conform to the provisions of EC Directive 2006/42/EC (Machinery Directive) and 2000/14/EC (Noise Directive), and the harmonised standards mentioned below. - Page 28 Any unauthorized use or copying of the contents or any part thereof is prohibited. This applies in particular to trademarks, model denominations, part numbers, and drawings. www.atlascopco.com...
