Fixings
*Not Included: 1 friend.
Like most things in life, assembling your Drawers will be better with a friend!
LoLine - x27
MidLine - x31

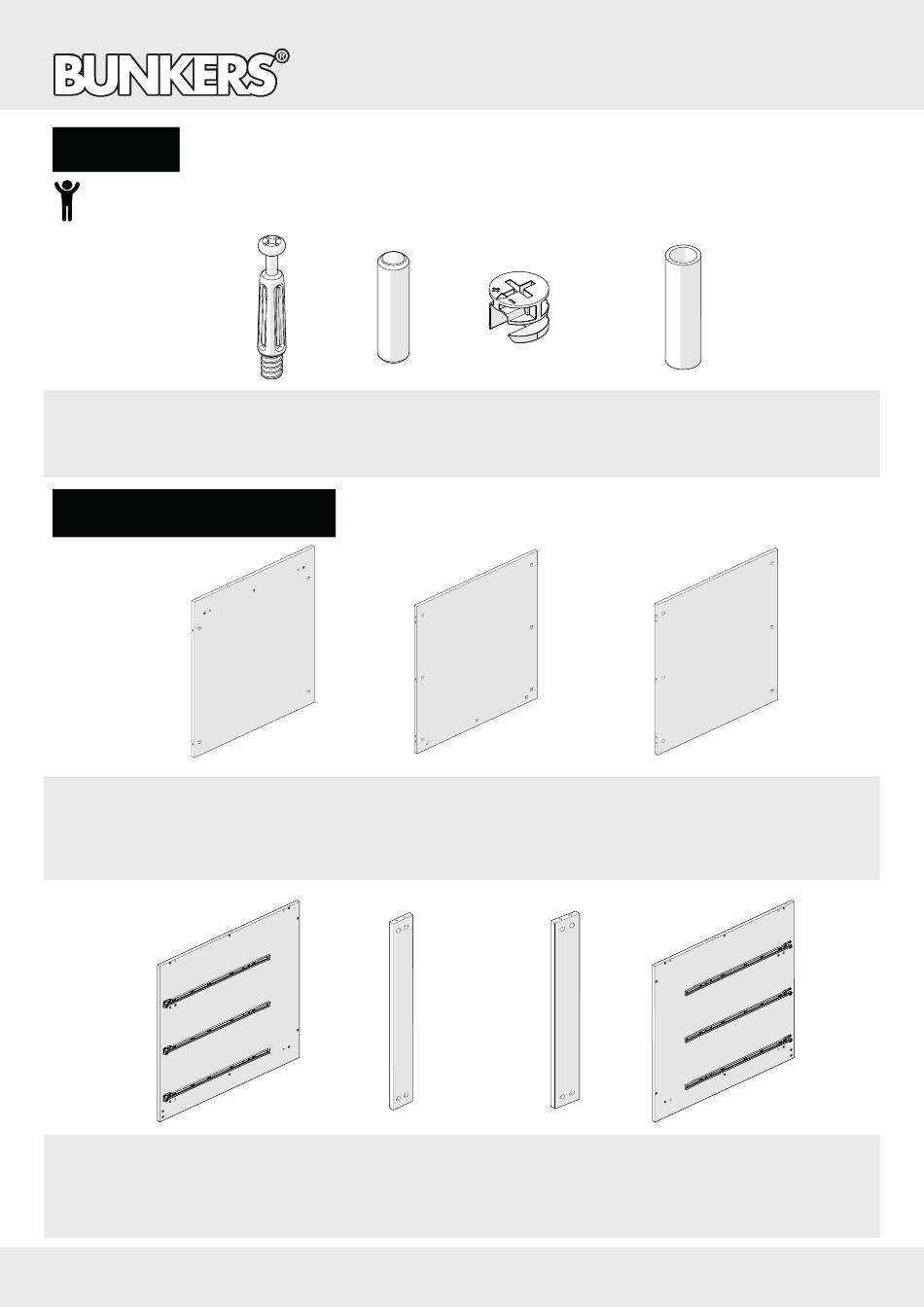

Parts List - Frame
BACK
PANEL
LoLine - x1
MidLine - x1
LEFT
WALL
LoLine - x1
MidLine - x1
PINS
DOWEL
LoLine - x10
MidLine - x10
KICK
PANEL
LoLine - x1
MidLine - x1
w w w.b u nke r s .c om. a u
MIDLINE & LOLINE ASSEMBLY
CAMS
MEASURING TUBE
LoLine - x27
MidLine - x31
BOTTOM
PANEL
LoLine - x1
MidLine - x1
BRACE
LoLine - x1
MidLine - x2
|
1300 66 1 7 64
Drawer Units
LoLine - x1
MidLine - x1
TOP
PANEL
LoLine - x1
MidLine - x1
RIGHT
WALL
LoLine - x1
MidLine - x1
1
Advertisement
Table of Contents
Related Manuals for Bunkers LoLine
Summary of Contents for Bunkers LoLine
- Page 1 MIDLINE & LOLINE ASSEMBLY Drawer Units Fixings *Not Included: 1 friend. Like most things in life, assembling your Drawers will be better with a friend! PINS DOWEL CAMS MEASURING TUBE LoLine - x27 LoLine - x10 LoLine - x27 LoLine - x1...
- Page 2 MIDLINE & LOLINE ASSEMBLY Drawer Units • Screw Pins into nylon inserts in each panel. Tighten until top of Pin is flush with 32mm Measuring Tube. Do not overtighten. • Place Dowels into dowel holes. 32mm x27 Pins x10 Dowel...
- Page 3 MIDLINE & LOLINE ASSEMBLY Drawer Units Place Right Wall on ground then align and lower Back and Bottom pieces. Place Cams into holes and tight- x5 Cams (Rotated View) Align Top over Pins and Dowels then lower. Place Cams into holes and tighten.
- Page 4 MIDLINE & LOLINE ASSEMBLY Drawer Units Align the Braces with the Pins in the middle of the Right Wall. Lower then insert and tighten Cams. LoLine - x2 Cams MidLine - x4 Cams Align the Kick Plates with the Pins on the bottom of Right Wall. Lower then insert and tighten Cams.
- Page 5 MIDLINE & LOLINE ASSEMBLY Drawer Units Align Left Wall with the holes on top faces and lower then tighten Cams. Cams on Bottom & Inside View of Cams x5 Cams x7 Cams Kick Plate Refer to the Drawers Manual to assemble 3 the three Drawers.
- Page 6 MIDLINE & LOLINE ASSEMBLY Drawer Units Standard Unit fully assembled. Loline Drawers Midline Drawers w w w.b u nke r s .c om. a u 1300 66 17 64...
