Summary of Contents for FireBird SOLID FUEL HEAT EXCHANGER

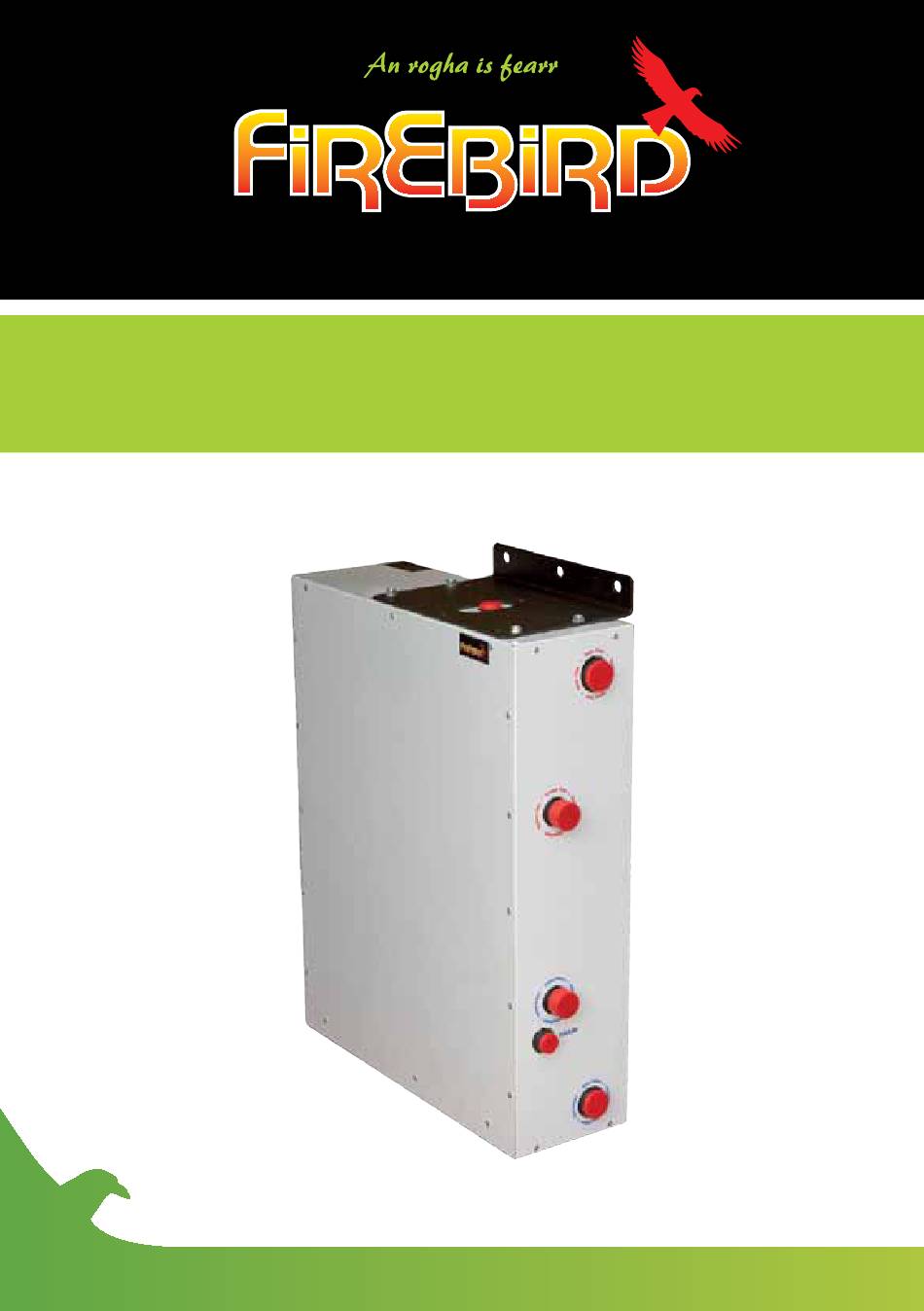

- Page 1 HEATING SOLUTIONS SOLID FUEL HEAT EXCHANGER INSTALLATION & SERVICE MANUAL WORKING TOWARDS A GREENER PLANET...
-
Page 2: Table Of Contents
2.0 Important Safety Notes ....................2 3.0 System Installation ......................2 3.1 System Location ...................... 3 3.2 Plumbing the Solid Fuel Heat Exchanger ............3 3.3 System Heat Exchange Process ................. 6 4.0 Hot Water Cylinder Requirements ................7 5.0 Technical Data ........................ 7 6.0 Commissioning ...................... -
Page 3: Introduction
1.0 INTRODUCTION We would like to thank you for purchasing a Firebird Solid Fuel Heat Exchanger, hereinafter referred to as the SFHE. This instruction manual is for reference and installation guidance by qualified engineers or installers, who are HETAS approved, or equivalent, in solid fuel heating appliances. -
Page 4: System Location
Additional parts required for installation of the SFHE: • 2 x circulation pumps. • 2 x pipe thermostats. • 1 x 1” injector T. • 1 x spring loaded non-return valve. To obtain the best results we recommend that the unit be fitted using the schematic provided. This will ensure that it will work correctly in normal conditions and in the event of power failure to the unit. - Page 5 The Return pipe to the heat exchanger from the existing pressurised system should be connected directly to the main/principal return pipe of the existing pressurised circuit. The flow/return from/to the heat exchanger must be pumped. Best practise is to fit a thermostat to your DHW cylinder, which will divert the heat to the heating system when your DHW cylinder is satisfied. This will prevent the DHW tank from over heating.
- Page 6 Schematic Solid Fuel Heat Exchanger Heat leak /gravity radiator Open/vented system supply pipe A: Minimum = 1.5m B: Minimum = 1m Air vent Flow pipe to existing pressurised system Return pipe from existing pressurised system Thermostat 1 Spring loaded non return valve...
-
Page 7: System Heat Exchange Process
SySTEm HEAT ExcHAngE ProcESS The diagram below highlights the layout of the Firebird Solid Fuel Heat Exchanger. It can be fitted with pipe work on the left or on the right hand side. Care must be taken to ensure the pipe work is connected in accordance with the layout highlighted. -
Page 8: Hot Water Cylinder Requirements
4.0 HOT wATER CYLINDER REqUIREMENTS Regulations and manufacturer’s installation criteria must be met at all times on the hot water system. Particular reference to Part G (NI and UK regulations) must be met. 5.0 TECHNICAL DATA Dimensions: 528mm length x 204mm width x 680mm height. maximum System Pressure: 3 bar. -
Page 9: Terms & Conditions Of Warranty
(h) Firebird’s prior authorisation must be obtained before examination or repair of the appliance takes place. (i) Firebird will examine all claims made under the warranty and for any claims deemed invalid, costs incurred will be borne by the householder. - Page 11 HEATING SOLUTIONS Please complete the following details to register your Firebird Solid Fuel Heat Exchanger. warranty / Commissioning Card HouSEHoLDEr inSTALLEr Name: Name: ............... ..
- Page 12 The right is reserved to change specifications, colour, and prices of the models and items illustrated and described in this publication at any time. Whilst every care has been exercised in the production of this catalogue, Firebird cannot accept any liability for errors or omissions. For the latest details always consult Firebird.
