Summary of Contents for ZKX Audio MT Series

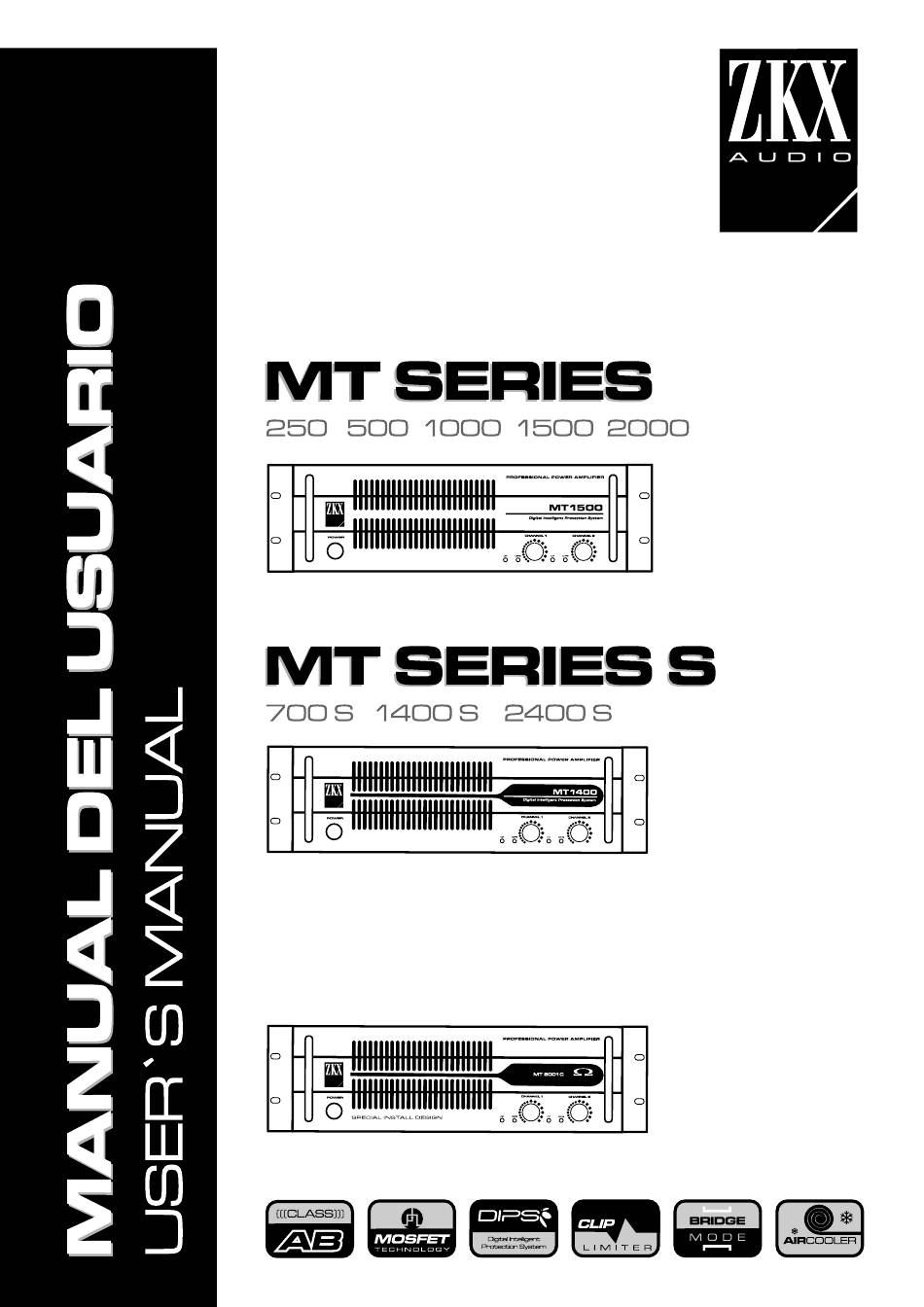

- Page 1 MT SERIES C MT SERIES C 8001 C...
- Page 2 INTRODUCCION ZKX audio ofrece la linea MT series totalmente renovada. Cambios en su estética, actualización técnica y mejoras en su aplicación hacen de esta linea un producto optimo para su uso. Los equipos tienen un diseño sobredimensionado que permite usarlas en las condiciones más desfavorables, atendiendo a las distintas condiciones de temperatura que posee nuestro país.
- Page 3 MANUAL DEL USUARIO MT MT S Y MT C SERIES MANUAL DEL USUARIO MT MT S Y MT C SERIES ADVERTENCIA DE SEGURIDAD COMUN A TODAS LAS POTENCIAS ADVERTENCIA PARA REDUCIR EL RIESGO DE FUEGO O SHOCK ELECTRICO, NO EXPONGA ESTA UNIDAD A LA LLUVIA O HUMEDAD No permita que entre agua o algún tipo de liquido a la unidad.
- Page 4 MANUAL DEL USUARIO MT MT S Y MT C SERIES MANUAL DEL USUARIO MT MT S Y MT C SERIES CARACTERISTICAS Avanzado diseño con circuito de tercera generación. Salida de alta corriente. MT 240 Limitador de entrada. Estereo seleccionable, modos de amplificador: estereo / puente. Controles de ganancia individuales.
- Page 5 MANUAL DEL USUARIO MT MT S Y MT C SERIES MANUAL DEL USUARIO MT MT S Y MT C SERIES Para el modo puente (BRIDGE), coloque la llave en esa posición, conecte solo a las borneras rojas de cada canal. Como se muestra en la figura 2. NO UTILICE LAS BORNERAS NEGRAS PARA EL MODO BRIDGE CUANDO ESTE LA LLAVE EN ESTE MISMO.
- Page 6 MANUAL DEL USUARIO MT MT S Y MT C SERIES MANUAL DEL USUARIO MT MT S Y MT C SERIES DESCRIPCION DEL PANEL TRASERO ALIMENTACION FUSIBLE CONECTORES DE SALIDA TURBINA CONECTORES DE ENTRADA LLAVE ESTEREO / BRIDGE LLAVE GROUND / LIFT * Gráfico solo valido para los modelos MT 250, 500, 1000, 1500, MTs 700, 1400 y MTc 8001.
- Page 7 MANUAL DEL USUARIO MT MT S Y MT C SERIES MANUAL DEL USUARIO MT MT S Y MT C SERIES ALIMENTACION FUSIBLE CONECTORES DE SALIDA TURBINA CONECTORES DE ENTRADA LLAVE ESTEREO / BRIDGE LLAVE GROUND / LIFT LLAVE 1.4V / 0dBu LLAVE LINK / OFF * Gráfico solo valido para los modelos MT 2000 y MTs 2400.
- Page 8 MANUAL DEL USUARIO MT MT S Y MT C SERIES MANUAL DEL USUARIO MT MT S Y MT C SERIES - pagina 6 -...
- Page 9 User`s Manual ENGLISH...
- Page 10 INTRODUCTION ZKX audio offers a brand new MT line series. A whole different image and technicians updates for you to get a better product. An over the line design that allowed you to work even in the worst conditions of the different temperatures for the different places of the country. The MT series provides a variety of appliances going from the very small studio to PA systems.
- Page 11 USER`S MANUAL MT MTs and MTc SERIES USER`S MANUAL MT MTs and MTc SERIES SAFETY PRECAUTIONS FOR ALL VOLTAGES! WARNING- TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE Do not allow water or liquids to be spilled into this unit. If the unit has been exposed to rain or liquids, please unplug the power cord immediately from the outlet (with DRY HANDS) and get a qualified service technician to check it.
-
Page 12: Installation
MOUNTING The power amplifier can be installed in a standard 19 inch equipment. It requires 3 units (5.25 inches) for the MT series of vertical rack space and secures to the rack cabinet with four rack mount screws and cup washers. Inside every rack, it is best to mount the units one above the other, leaving at least a unit of space between two amplifiers. -
Page 13: Front Panel Description
USER`S MANUAL MT MTs and MTc SERIES USER`S MANUAL MT MTs and MTc SERIES For the BRIDGE mode put the switch on that position and connect only to each channel red knobs. As shown in figure 2. DO NOT USE THE BLACK KNOBS FOR THE BRIDGE MODE WHEN THE SWITCH IS ALREADY ON THIS MODE. -
Page 14: Rear Panel Description
This switch acts the as to connect the mass of signal entrance to chassis ( GROUND) or to leave it floating way ( LIFT). ·TURN OFF THE AMPLIFIER. ·FOR THE MT SERIES CHOOSE A SPEAKER OF NO LESS THAN 8 OHMS OF IMPEDANCE, IN THE RED EXIT TERMINALS (+) OF THE AMPLIFIER. FOR THE MTS SERIES SELECT A SPEAKER OF NO LESS THAN 4 OHMS OF IMPEDANCE, IN THE RED EXIT TERMINALS OF THE AMPLIFIER. - Page 15 USER`S MANUAL MT MTs and MTc SERIES USER`S MANUAL MT MTs and MTc SERIES POWER SUPPLY FUSE OUTPUT CONNECTORS FAN COOLER INPUT CONNECTORS SWITCH STEREO / BRIDGE SWITCH 1.4V / 0dBu SWITCH GROUND / LIFT SWITCH LINK / OFF * Gráfico solo valido para los modelos MT 2000 y MTs 2400. 6 - SWITCH STEREO / BRIDGE Turn off energy before changing the operation manner.
- Page 16 USER`S MANUAL MT and MTs SERIES USER`S MANUAL MT and MTs SERIES - page 14 -...
- Page 17 USER`S MANUAL MT and MTs SERIES USER`S MANUAL MT and MTs SERIES NOTAS: - page 15 -...
