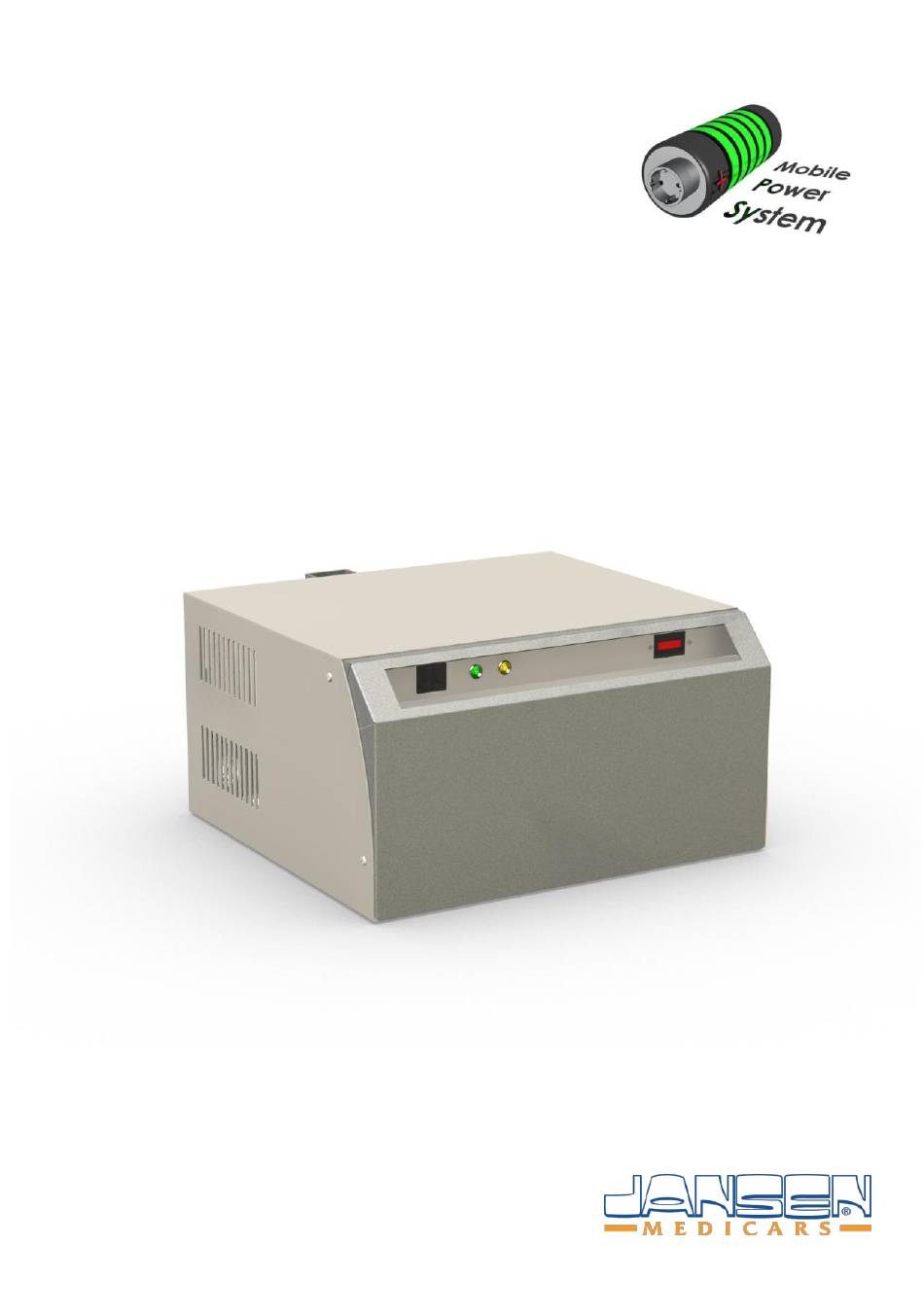

- Page 1 User Manual Mobile Power System Version 1.0 © 2012 Jansen Medicars...
- Page 2 URL www.medicars.com Aan deze uitgave kunnen geen rechten worden ontleend. Niets uit deze uitgave mag worden gedupliceerd zonder schriftelijke toestemming van Jansen Medicars No rights can be derived from this publication. Nothing may be duplicated from this publication without written permission from Jansen Medicars Aucun droit ne peut être tiré...
-
Page 3: Table Of Contents
User Manual Mobile Power System Table of content INTRODUCTION ..................... 2 OOKMARK ....................2 GENERAL SAFETY RULES ................3 INSTRUCTIONS FOR USE ................6 SYSTEM SET-UP AND SPECIFICATIONS ............. 8 LOCK DIAGRAM ..................8 ATTERY TIME ....................9 PECIFICATIES ................... 10 INSPECTION AND MAINTENANCE ............ -
Page 4: Introduction
This system is designed for mobile medical electrical equipement. In certain situations this system can be used as an UPS. Before the Mobile Power System can be used for the first time, it has to be charged for at least 16 hours. See also Chapter 3. -
Page 5: General Safety Rules
User Manual Mobile Power System 2 General safety rules General The system is for INDOOR use only and is designed to be mounted on a medical cart. Switch off the central power switch and unplug the mains socket before moving. Make sure the mains cable is secured on the cart while moving the system. - Page 6 This prevents you getting an electric shock. The system may only be cleaned with a slightly damp cloth with a non-aggressive (household) cleaning agent. Jansen Medicars Page 4 Version feb. 2012 – V1.0...
- Page 7 User Manual Mobile Power System Never use aggressive solvents such as alcohol, thinner or salt to clean the system. Maintenance Regularly check that the system is working properly. If you notice irregularities, have them checked by a qualified person. Technical maintenance must always be carried out by qualified personnel.
-
Page 8: Instructions For Use
The 230VAC is delivered from a battery pack. Once the plug of the Mobile Power System is connected to a mains socket, the output of the system is switched to the incoming voltage and at the same time the battery is charged. - Page 9 User Manual Mobile Power System network (green LED). If neither LED is lit, the system provides no voltage on the output. The battery condition indicator on the front features a 10-digit red LED display. With a fully charged battery the right most LED lights up. As the battery is discharged, the left lying LEDs will light up one by one.
-
Page 10: System Set-Up And Specifications
500µA. Because the internal earth leakage current of the internal inverter is less tan 3mA, the total leakage current on the output remains less than 5mA (compliant with NEN1010-7-710). Jansen Medicars Page 8 Version feb. 2012 – V1.0... -
Page 11: Battery Time
User Manual Mobile Power System 4.2 Battery time The graph below gives an indication of the battery time [h] as a function of power demand in [VA]. Power consumption[VA] Recharging the batteries is provided by an internal battery charger. The charging time for an empty battery pack lasts up to 16 hours. -
Page 12: Specificaties
50 Hz ± 0.05% Max. efficiency 93 % Permitted cos φ 0,2 … 1 Battery Charger Type 3-stage charger Charging currunt 5 A (10% van de battery capacity) Max. charging time 16 h Jansen Medicars Page 10 Version feb. 2012 – V1.0... -
Page 13: Inspection And Maintenance
User Manual Mobile Power System 5 Inspection and maintenance The Mobile Power System is a low maintenance system. Maintenance is therefore limited to inspecting and/or measuring of following points: Check on possible damage of the housing, check weldings and screws. Check if possible damage of the housing can course internal (electrical) hazards. - Page 16 Jansen Medicars’ modulaire cart concept The optimal solution for every application Typical product application Wireless Monitor Cart...
