Summary of Contents for Edbak TRV300

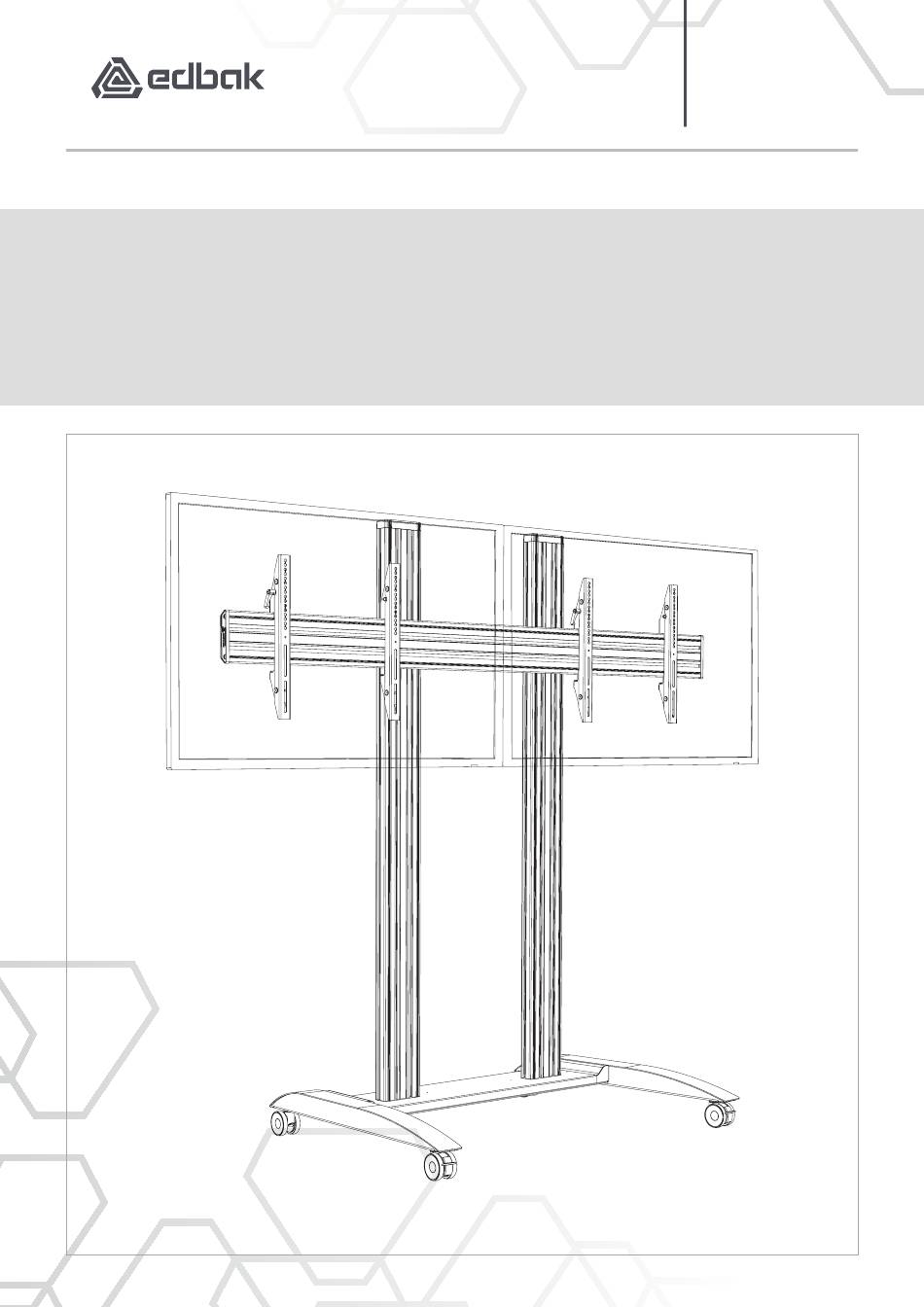

- Page 1 TRV300-IM-01 www.edbakproav.com TRV300 VIDEO CONFERENCING TROLLEY WÓZEK WIDEOKONFERENCYJNY...
- Page 2 The assembly should be carried out in accordance with this manual by at least two fully qualified people. The EDBAK Company shall not be liable for any injuries or damage to material or property caused by incorrect assembly. Hence please ensure that: ƒ...
- Page 3 PART LIST LISTA ELEMENTÓW TRV300-IM-01 www.edbakproav.com 13mm 20.06.2018, TRV300-IM-01...
- Page 4 PART LIST LISTA ELEMENTÓW TRV300-IM-01 www.edbakproav.com M8x20 S70-10x25 M10x30 M8 kanał 10 M8x16 M6x16 20.06.2018, TRV300-IM-01...
- Page 5 PART LIST LISTA ELEMENTÓW TRV300-IM-01 www.edbakproav.com M4 x 20 M5 x 20 M5 x 20 M8 x 20 fi15 x fi8,4 x 5 fi15 x fi8,4 x 10 M5 x fi14 20.06.2018, TRV300-IM-01...
- Page 6 PART LIST LISTA ELEMENTÓW TRV300-IM-01 www.edbakproav.com 20.06.2018, TRV300-IM-01...
- Page 7 PART LIST LISTA ELEMENTÓW TRV300-IM-01 www.edbakproav.com 20.06.2018, TRV300-IM-01...
- Page 8 ASSEMBLY MONTAŻ TRV300-IM-01 www.edbakproav.com (x3) (x3) 20.06.2018, TRV300-IM-01...
- Page 9 ASSEMBLY MONTAŻ TRV300-IM-01 www.edbakproav.com (x4) 20.06.2018, TRV300-IM-01...
- Page 10 ASSEMBLY MONTAŻ TRV300-IM-01 www.edbakproav.com (x2) (x2) (x2) 20.06.2018, TRV300-IM-01...
- Page 11 ASSEMBLY MONTAŻ TRV300-IM-01 www.edbakproav.com (x2) (x2) (x2) 20.06.2018, TRV300-IM-01...
- Page 12 ASSEMBLY MONTAŻ TRV300-IM-01 www.edbakproav.com 20.06.2018, TRV300-IM-01...
- Page 13 ASSEMBLY MONTAŻ TRV300-IM-01 www.edbakproav.com ±11º 20.06.2018, TRV300-IM-01...
