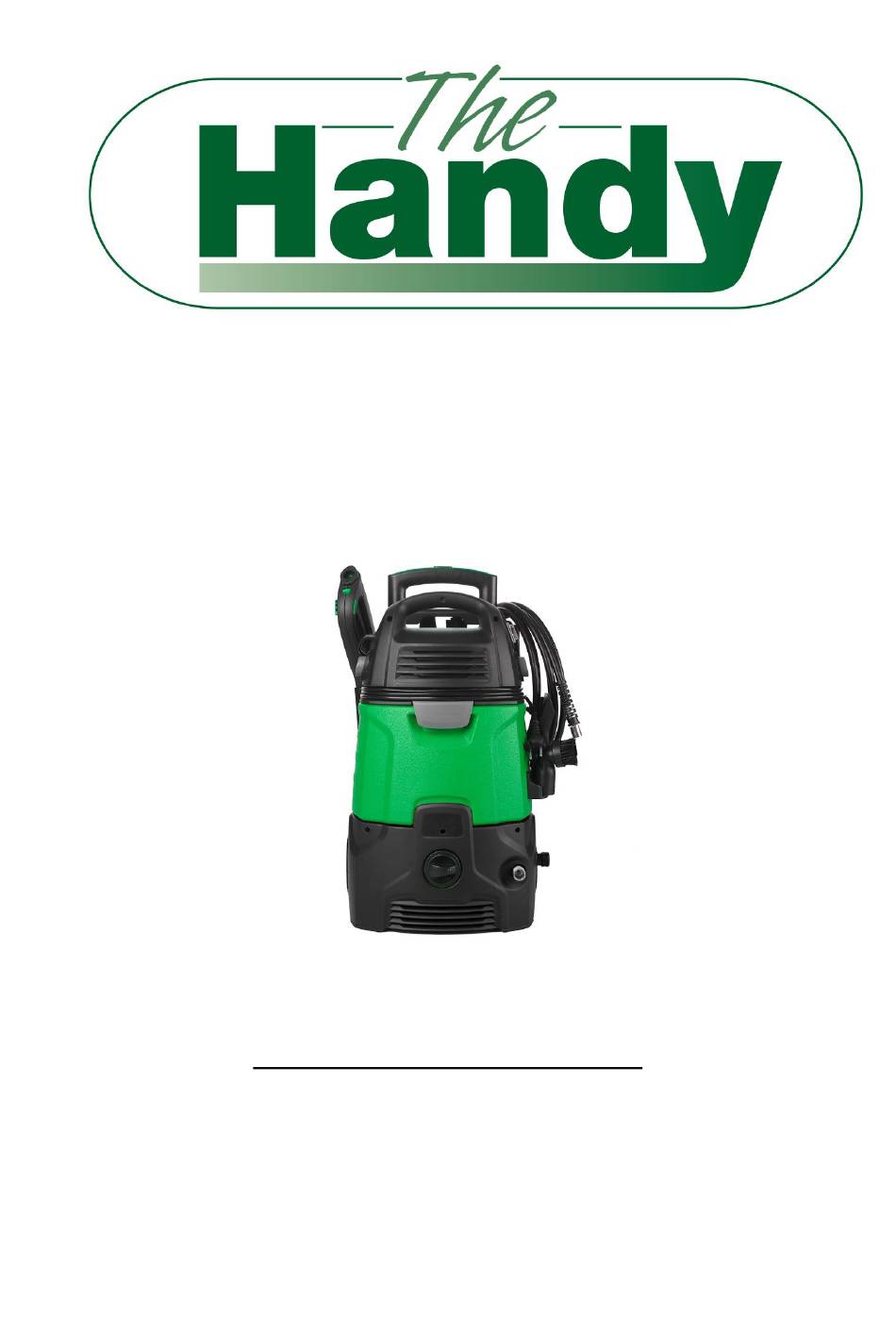

OPERATOR'S MANUAL & PARTS LIST

MODEL – THHPWVAC

2 IN 1 PRESSURE WASHER WITH WET & DRY VACUUM

SAVE THESE INSTRUCTIONS

SPARES & SUPPORT: 01793 333212

Please read & understand this manual, paying particular attention to the safety instructions,

before use.

The manufacturer reserves the right to change the product specification and livery

according to continued product improvements.

193889001

07/01/2016

Table of Contents

Need help?

Do you have a question about the THHPWVAC and is the answer not in the manual?

Questions and answers

Summary of Contents for The Handy THHPWVAC

Page 1 OPERATOR’S MANUAL & PARTS LIST MODEL – THHPWVAC 2 IN 1 PRESSURE WASHER WITH WET & DRY VACUUM SAVE THESE INSTRUCTIONS SPARES & SUPPORT: 01793 333212 Please read & understand this manual, paying particular attention to the safety instructions, before use.
Page 3 SAFETY INSTRUCTIONS MACHINE CONTENTS ASSEMBLY OPERATION MAINTENANCE & STORAGE PARTS DIAGRAM & LIST TROUBLESHOOTING SPECIFICATION – PRESSURE WASHER Model THHPWVAC Product Number 193889001 Weight (N.W & G.W) (Kgs) 13.5 & 15.5 PRESSURE WASHER Voltage 230v / 50hz Pressure (Bar) 90 – Max 150...
Page 4 SAFETY INSTRUCTIONS – PRESSURE WASHER Read and understand the owner’s manual and labels affixed to the product. Learn its application and limitations as well as the specific potential hazards. Retain these instructions for future reference. The operator is responsible for following the warnings & instructions in this manual and on the product.
Page 5: Important Safety Instructions
THIS PRODUCT IS INTENDED FOR HOUSEHOLD USE ONLY. IF USED COMMERICALLY THE WARRANTY IS VOID. IMPORTANT SAFETY INSTRUCTIONS WHEN USING AN APPLIANCE, BASIC PRECAUTIONS SHOULD ALWAYS BE FOLLOWED, INCLUDING THE FOLLOWING: WARNING READ AND UNDERSTAND ALL INSTRUCTIONS. FAILURE TO FOLLOW ALL INSTRUCTIONS LISTED BELOW MAY RESULT IN ELECTRIC SHOCK, FIRE, AND/OR SERIOUS PERSONAL INJURY.
Page 6 AVOID ELECTRICAL SHOCK - The use of a Residual Current Device (“RCD”), on 230V electrics is recommended. Check the electric circuit is adequately protected and that it corresponds with the power, voltage and frequency of the machines motor. Do not plug or unplug the motor while standing in or around damp or wet ground.
Page 7 NEVER LEAVE MACHINE RUNNING UNATTENDED - Turn Power Off. Do not leave the machine unattended until it has come to a complete stop. DO NOT USE PRODUCT IF SWITCH DOES NOT TURN IT OFF. - Have defective switches replaced by an authorised service dealer. MAINTAIN YOUR MACHINE WITH CARE - Clean the machine immediately after use.
Page 8 MACHINE CONTENTS – PRESSURE WASHER Remove the product & contents from the carton. Be sure the carton is empty before discarding. If you require any assistance with regards to the contents of the Tiller, please contact us: Tel: 01793 333212 - Mon – Fri 8.30am – 5.30pm (excl. Bank Holidays) Email: customerservice@handydistribution.co.uk PRESSURE WASHER...
Page 9 CONNECTING HIGH PRESSURE HOSE TO TRIGGER HANDLE • Push the Hose Lock downwards • Insert the High Pressure Hose • Push the Hose Lock upwards • Pull on the hose to be certain it is correctly secure. CONNECTING HIGH PRESSURE HOSE TO MAIN UNIT Push the end of the high pressure hose into the Pressure Washer Outlet and turn clockwise to secure.
Page 10 HOW TO ATTACH A QUICK CONNECTOR? This Pressure Washer includes an easy to use Quick Connector. The quick connect system consists of a male end nozzle (A) and a female end coupler (B), and will come assembled and attached to the Pressure Washer. With the hose faucet turned off, disconnect the female coupler from the nozzle by pulling back on the collar in the direction away from the pressure washer.
Page 11: On/Off Switch
OPERATION – PRESSURE WASHER APPLICATIONS You may use this product for the purposes listed below: Cleaning boats, bicycles, motorcycles, motor cars, outdoor furniture, grills, guttering, patios, steps, decking. ON/OFF SWITCH This switch turns the pressure washer on and off. TRIGGER HANDLE The trigger handle has a gripping surface that provides added control of the spray wand and helps reduce fatigue.
Page 12 THE POWER LANCE For particularly dirty items or areas. Ideal for stubborn stains on driveways, patio’s or moss covered surfaces. Not suitable for wood or cars. Cannot be used to feed detergents. THE WASH BRUSH Suitable for use with detergents. Soft bristles provide protection of car paintwork and glass. Detergent can be fed through the machine and wash brush to provide a thorough clean.
Page 13 THE PATIO & DECK CLEANER The Patio & Deck cleaner is ideal for cleaning floor & wall surfaces of different materials. It is compatible with wood, plastic, concrete, natural stone and tiles. The extension lance, provides you with extended reach. Detergent can be entered into the large cap positioned on the top of the cleaner.
Page 14: General Maintenance
MAINTENANCE & STORAGE – PRESSURE WASHER When servicing, use only approved replacement parts. Use of non-genuine parts may create a hazard or cause product damage, which will invalidate your product warranty. WARNING Always wear eye protection with side shields. Failure to do so could result in objects being thrown into your eyes, resulting in possible serious injury.
Page 15: Winter Protection
STORING THE PRESSURE WASHER Store in a dry, covered area where the weather can’t damage it. Clean the strainer in the water connection. It can be easily removed with flat-nosed pliers. WINTER PROTECTION Frost will destroy an appliance that has not been completely emptied of water. The correct method is to separate the inlet hose from the water supply system.
Page 16 PARTS DIAGRAM – PRESSURE WASHER Note: Some parts are listed & shown for illustration purposes only, & may not be available individually as replacement parts.
Page 17 PARTS LIST – PRESSURE WASHER...
Page 18 TROUBLESHOOTING – PRESSURE WASHER PROBLEM POSSIBLE CAUSE SOLUTION Pressure washer does not 1. Power cord not connected to 1. Connect the power cord to a start when trigger is power source suitable electrical supply depressed 2. Switch is off 2. Turn switch on. 3.
Page 19 SPECIFICATION – WET & DRY VAC Model THHPWVAC Product Number 193889001 Weight (N.W & G.W) (Kgs) 13.5 & 15.5 WET & DRY VACUUM Voltage 230v / 50hz Watt Max Vacuum Degree 16KPa Noise 90 dB(A) Collection Capacity (Litre) Electrical Cable Length (Metre)
Page 20 SAFETY INSTRUCTIONS – WET & DRY VAC Read and understand the owner’s manual and labels affixed to the product. Learn its application and limitations as well as the specific potential hazards. Retain these instructions for future reference. The operator is responsible for following the warnings & instructions in this manual and on the product.
Page 21 or distracted from the job at hand. Be THIS PRODUCT IS INTENDED FOR aware of what you are doing at all times. HOUSEHOLD USE ONLY. Use common sense. IF USED COMMERICALLY THE AVOID DANGEROUS CONDITIONS - Make WARRANTY IS VOID. sure there is adequate surrounding workspace.
Page 22 AVOID ELECTRICAL SHOCK - The use of a WARNING: To reduce the risk of Residual Current Device (“RCD”), on 230V electrocution, keep all connections dry electrics is recommended. and off the ground. Do not touch plug Check the electric circuit is adequately with wet hands.
Page 23 DO NOT USE PRODUCT IF SWITCH DOES country where the machine is used. Do NOT TURN IT OFF. - Have defective not discharge into drains, soil or water. switches replaced by an authorised STORE IDLE EQUIPMENT - When not in service dealer.
Page 24 MACHINE CONTENTS – WET & DRY VAC Remove the product & contents from the carton. Be sure the carton is empty before discarding. If you require any assistance with regards to the contents of the Tiller, please contact us: Tel: 01793 333212 - Mon – Fri 8.30am – 5.30pm (excl. Bank Holidays) Email: customerservice@handydistribution.co.uk WET &...
Page 25 ASSEMBLY – WET & DRY VACCUM CONNECTION OF THE HOSE WITH THE VACUUM CLEANER Insert one end of the hose into the air inlet of the vacuum cleaner for vacuuming. To use the unit as a blower instead insert one end of the hose into the blower port If you want to take the hose off, pull to remove it from the air inlet or blower port.
Page 26: Vacuuming Dry Materials
OPERATION – WET & DRY VACUUM VACUUMING DRY MATERIALS 1. The filter must always be in correct position to reduce the risk of leaks and possible damage to vac. Make sure that the filter is completely covering the filter cage and that the retainer band is as close to the lid as possible.
Page 27: Blowing Feature
BLOWING FEATURE Your vac contains a blowing feature. It has the capability to blow away dirt and other debris. It is excellent to use to blow dirt and debris out of garages or off patios and driveways. Follow the steps below to use your vac as a blower. 1.
Page 28: Installation
IMPORTANT: To avoid damage to the fan and motor, always reinstall the filter before using the vac for dry material pick-up. Take the dirty filter to a disposal container and gently brush away small dirt particles that may be adhering to the filter material. IMPORTANT: After cleaning, check the filter for tears or small holes.
Page 29: Troubleshooting
TROUBLESHOOTING PROBLEM POSSIBLE CAUSE SOLUTION Vacuum will not pick up dirt 1. Clogged Filter 1. Clean or replace filter 2. Clogged Hose 2. Remove hose & clear 3. Air Leak debris 3. Make sure power head is securely attached to dust tank.
Page 30: Parts Diagram
PARTS DIAGRAM...
Page 31: Parts List
PARTS LIST...
Page 32 GJ HANDY & CO LTD USER WARRANTY POLICY 1. USERS STATEMENT OF WARRANTY Each new machine is warranted against defective material or assembly of material under normal usage. The warranty applies to the original purchaser and covers faulty parts and the labour involved in replacing and repairing those parts, which are of original manufacture.
Page 33 GJ HANDY & CO LTD USER WARRANTY POLICY 3. NOT COVERED BY THIS WARRANTY The warranty policy does not cover any depreciation or damages caused by ordinary wear, rusting or corrosion, lack of correct maintenance or operation, misuse, abuse, lack of transportation or accident. The warranty policy does not cover any costs necessary for the standard periodic maintenance services instructed by the operators manual, or service parts replacement which would include oil, filters, tyres, belts, brake linings, fuses, blades,...
Page 34: Ec Declaration Of Conformity
We Handy Distribution Ltd - SN3 5HY (Importer) declare that the product: Designation: Electric 2 in 1 1700w Pressure Washer/700w Wet & Dry Vacuum & Blower Model(s): THHPWVAC Type/Serial No. As per rating label on machine Complies with the following directives: 2006/95/EC –...
Page 36 For Spares or Support of your Handy product, please contact us: Tel: 01793 333212 (Mon – Fri 8.30am to 5.30pm) Email: customerservice@handydistribution.co.uk To see our complete range of garden machinery and equipment visit: www.thehandy.co.uk Distributed by Handy Distribution, Murdock Road, Dorcan, Swindon, SN3 5HY...
