8x8 3Gbps HD/SDI Router
P/N: AV-GM06Z3-S1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AV-GM06Z3-S1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for SIIG AV-GM06Z3-S1

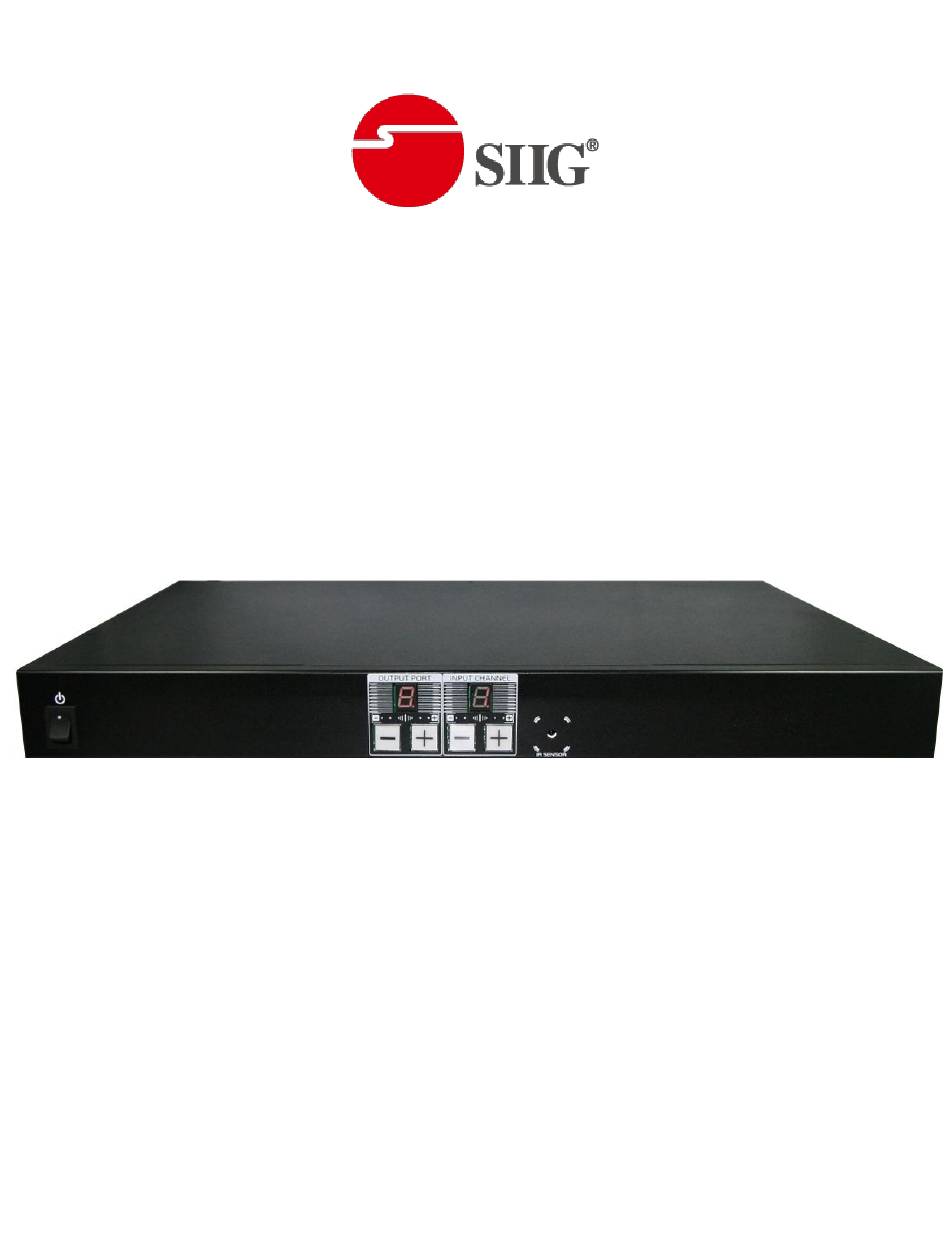

  • Page 1 8x8 3Gbps HD/SDI Router P/N: AV-GM06Z3-S1...

  • Page 2: Safety And Notice

    However, like all electronic equipments, the AV-GM06Z3-S1 should be used with care. Please read and follow the safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit.
  • Page 3 Introduction The AV-GM06Z3-S1 8x8 3Gbps HD/SDI Router provides the most flexible and cost effective solution in the market to route 3Gbps high definition video sources from any of the eight SDI sources to the any eight SDI receivers at the same time. This solution is well suited for use in home theater, conference room presentation systems, or other similar setting or application.
  • Page 4 Features  SInputs meet SMPTE 259M, 292M, 424M,425M  Synchronizes input/output (switch after vertical sync)  Allows any SDI display to view any SDI source at any time  Auto-Reclocking  The router master can switch every output channels to any SDI inputs by push-in button, IR remote controller or RS-232 control ...

  • Page 5: Specifications & Package Contents

    0~40C [32~104F] Storage temperature -20~60C [-4~140F] Relative humidity 20~90% RH [no condensation] 1x AV-GM06Z3-S1 Package Contents 2x Rack-mounting ears 1x IR remote USB or RS-232 control must be connected either one at a time. Connecting both types of cables may cause command confusion.
  • Page 6 ~ 5 ~...

  • Page 7: Panel Descriptions

    Panel Descriptions Front Panel 1. Power: Power control 2. Seven Segment LED Indicators: Control display 3. Front panel push buttons: Used to input source and display channel number 4. IR: IR receiver Rear Panel AC Power: 100-240V RS-232: RS-232 control port SW1: firmware update Digital I/O: Control Singal Sync In: External sync input...
  • Page 8 INPUT 1 –8: SDI inputs OUPUT PORT 1–8: SDI outputs ~ 7 ~...

  • Page 9: Dip Switch

    WARNING! [Firmware update only can be done via RS-232 port and connection to PC set at COM1) 1. Power off the AV-GM06Z3-S1. Execute the firmware update program on your PC via COM1 port connection to the RS-232 port of the AV-GM06Z3-S1.

  • Page 10: Hardware Installation

    1. Connect all sources to SDI Inputs on the 8x8 SDI Router 2. Connect all outputs to SDI Receiver 3. Connect the AC power supply to the 8x8 SDI Router 4. Power on the 8x8 SDI Router AV-GM06Z3-S1 ~ 9 ~...

  • Page 11: Channel Control

    Channel Control Source Side Method A: Push-in Button 1. Use the switch button on output port to select which port to be changed. (+) increase (–) decrease 2. Push the switch button on Input channel. The source will be sequentially changed. After few seconds, the setting will be active.
  • Page 12 Left (  ) button to switch input source in descending order (1, 8, 7, 6, 5, 4, 3, 2, 1, …) ~ 11 ~...

  • Page 13: Display Side

    Display Side RS-232 Serial Port Control Method A: Software Control through RS-232 Input & Source indicator Output port Software Control Menu Status Indicator 1. Scan button: Serial Port Scan: Press Scan button, the machine will scan the all com port and show them. Select the RS232 serial port connected to the machine.
  • Page 14 Only the same device id or 255 can get the command you sent. Press OK. Get the new status from the machine you select. 2. Setting button: Press Get button to read back device ID. Press Set button to write device ID. 3.
  • Page 15 Select Input* - All Output Send the same source to all output. 7. Output Port: Pull down menu and select which source to be sent to this output port. One by one setting On main menu screen. First select input source. Then select the output ports which you want to send the video and audio from this source.

  • Page 16: Limited Warranty

    Output H select Input8 Limited Warranty The SELLER warrants the AV-GM06Z3-S1 v1.2/v1.3 8x8 SDI Router to be free from defects in the material and workmanship for 3 years from the date of purchase from the SELLER or an authorized dealer. Should this product fail to be in good working order within 3 years warranty...
  • Page 17 Support For more info or tech support http://www.siig.com/support April, 2018 ~ 16 ~...
