Shop fox D4562 Instruction Sheet

Model D4562
Extension Bed for W1836
Instruction Sheet
Phone #: (360) 734-3482 • Online Tech Support: tech-support@shopfox.biz • Web: www.shopfox.biz
Introduction
The Model D4562 Bed Extension extends the bed
length of the Model W1836 Mini Wood Lathe to
40 ⁄ " between centers.
7
8
Call Technical Support at (360) 734-3482 if you
need additional help.

Inventory

(Figure 1)
Description
A. Bed Extension .................................. 1
B. Cap Screws M10-1.25 x 25 ................... 2
C. Flat Washers 10mm ........................... 2
D. Rubber Feet .................................... 2
A
C
B
D

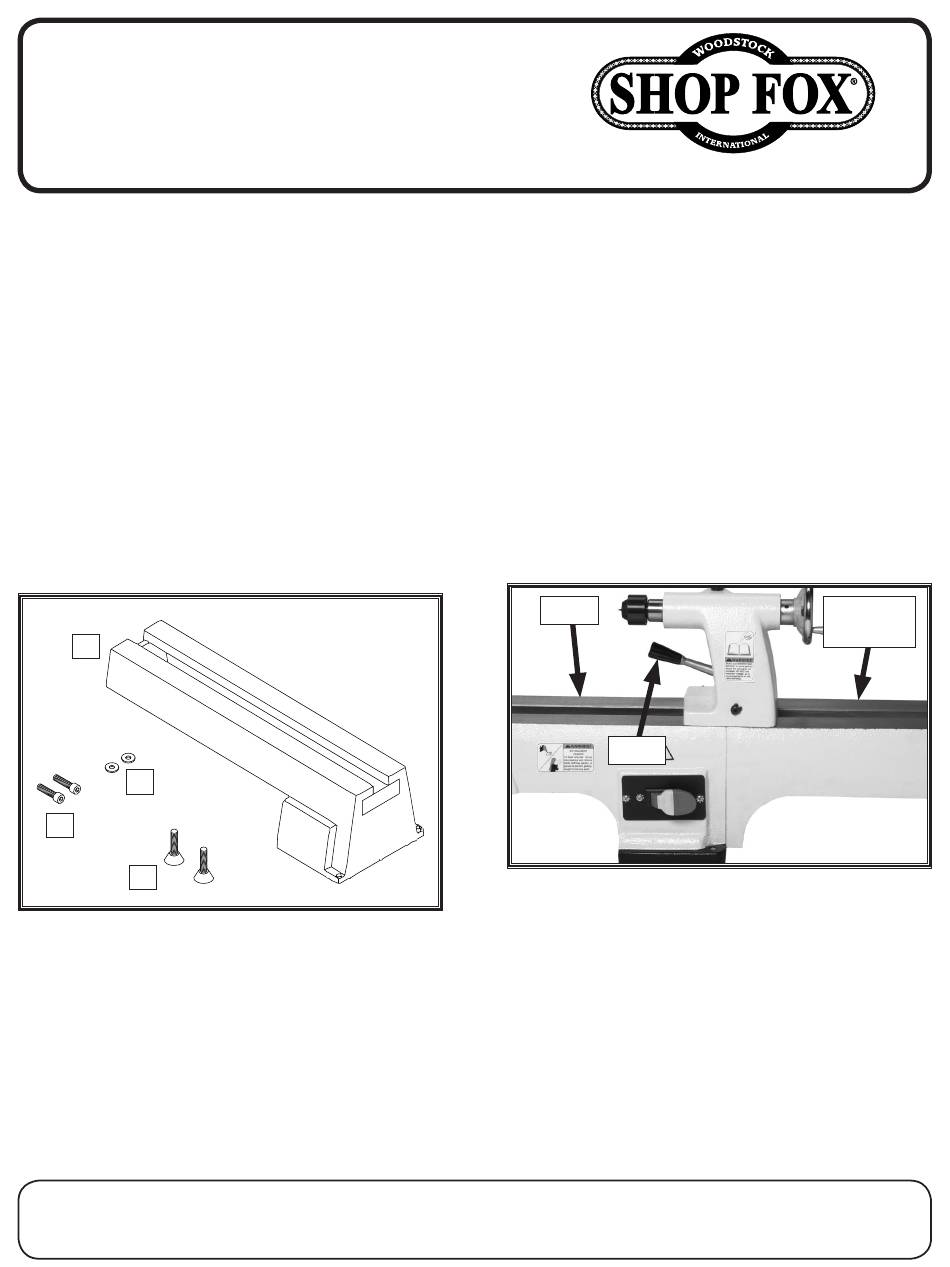

Figure 1. Model D4562 inventory.
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE OR FORM WITHOUT
#17401WK
COPYRIGHT © MAY, 2015 BY WOODSTOCK INTERNATIONAL, INC.
THE WRITTEN APPROVAL OF WOODSTOCK INTERNATIONAL, INC.

Installation

1. Install rubber feet into bottom of bed
extension.
2. Align mounting holes in bed extension and
tailstock end of lathe bed, then thread
included cap screws with flat washers
through bed extension and lathe. Finger
tighten only for now.
Qty
3. Center tailstock over bed extension and
lathe as shown in Figure 2, and engage
lock lever to bring bed extension and lathe
surfaces even with bottom of tailstock.
Lathe
Figure 2. Tailstock centered over lathe and bed
extension, and then locked into place to align
bed surfaces. (Reference photo only, actual
4. Tighten cap screws with hex wrench.
5. Slide tailstock out of the way, and use
straightedge to verify surfaces of lathe bed
and bed extension are precisely aligned.
Lever
machine not shown).
Bed
Extension
Printed in China
