KY MODEL CopterX Black Angel Instruction Manual

Kit helicopter
Hide thumbs

Advertisement

Quick Links

Download this manual
INSTRUCTION MANUAL
www.copterx.com
Copyright © 2008 KY MODEL Company Limited.

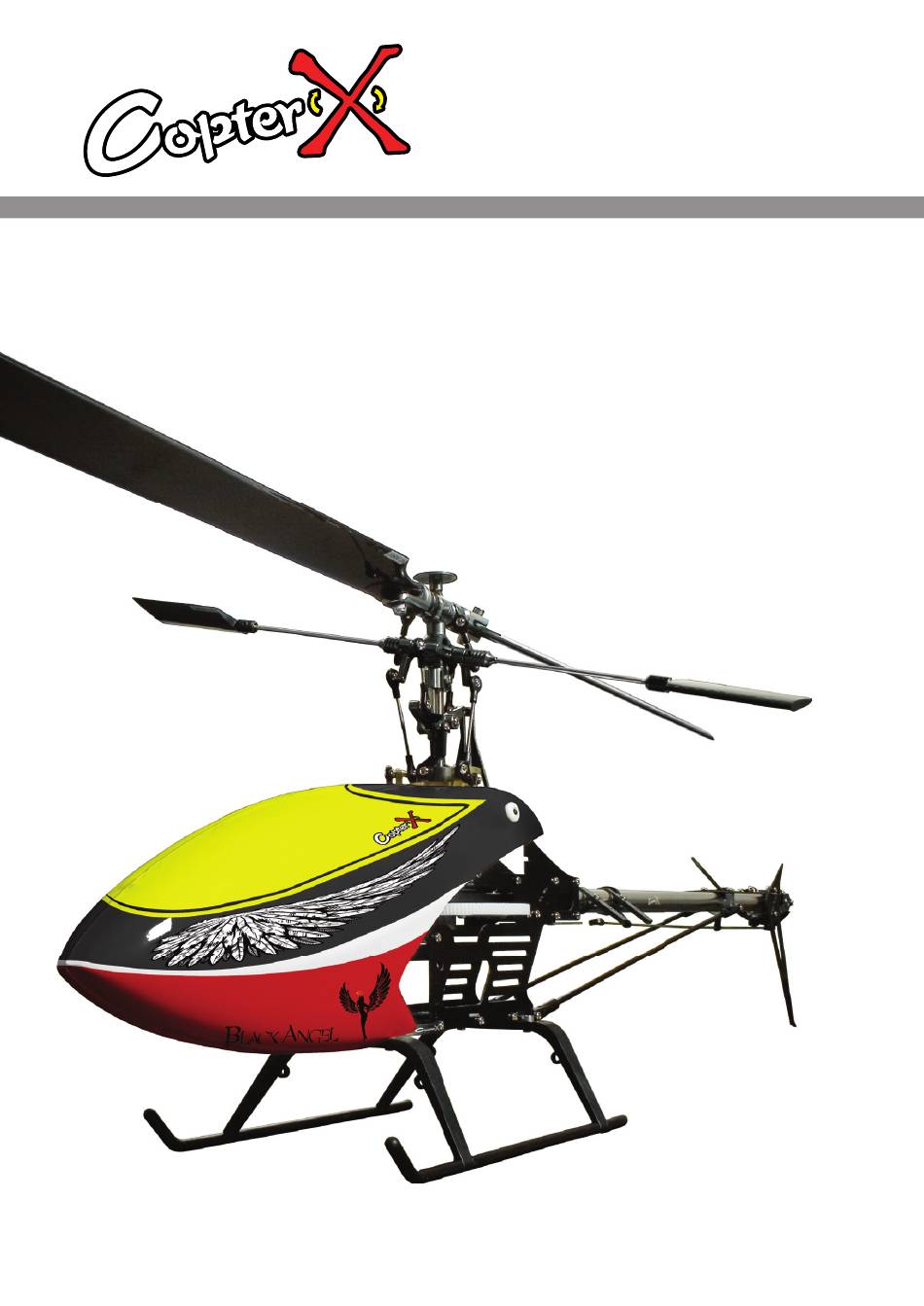

Black Angel
Kit Helicopter
Features
- Carbon fiber main blade, tail blade, fly paddle, tail fin for extra
- Carbon fiber main blade, tail blade, fly paddle, tail fin for extra
weight saving and durability.
weight saving and durability.
- CNC machined high grade aluminum rotor head and tail gear box
- CNC machined high grade aluminum rotor head and tail gear box
to ensure sensitive and accurate control.
to ensure sensitive and accurate control.
- +/- 15˚ patch range for extreme 3D maneuver.
- +/- 15˚ patch range for extreme 3D maneuver.
- One way drive gear for auto rotation maneuver.
- One way drive gear for auto rotation maneuver.
- Direct to swash CCPM system to ensure quick and slop-free
- Direct to swash CCPM system to ensure quick and slop-free
control.
control.
- Direct belt drive tail rotor system to ensure quick response and
- Direct belt drive tail rotor system to ensure quick response and
minimize power lost.
minimize power lost.
- Adjustable battery mount for quick CG adjustment to suits
- Adjustable battery mount for quick CG adjustment to suits
different flying style.
different flying style.
- 4mm main shaft for extra strength and durability for extreme 3D
- 4mm main shaft for extra strength and durability for extreme 3D
maneuver.
maneuver.
- Low fraction anti slip 4mm tail drive belt to ensure strength and
- Low fraction anti slip 4mm tail drive belt to ensure strength and
durability.
durability.
- Fiber glass high strength canopy.
- Fiber glass high strength canopy.
- High strength hex screws system to ensure durability and
- High strength hex screws system to ensure durability and
strength.
strength.
- All aluminum parts were made by preciously CNC machined high
- All aluminum parts were made by preciously CNC machined high
grade aluminum.
grade aluminum.

Advertisement

loading
Need help?

Need help?

Do you have a question about the CopterX Black Angel and is the answer not in the manual?

Questions and answers

Related Manuals for KY MODEL CopterX Black Angel

Summary of Contents for KY MODEL CopterX Black Angel

  • Page 1 - High strength hex screws system to ensure durability and strength. strength. - All aluminum parts were made by preciously CNC machined high - All aluminum parts were made by preciously CNC machined high grade aluminum. grade aluminum. www.copterx.com Copyright © 2008 KY MODEL Company Limited.

  • Page 2: Table Of Contents

    Black Angel Kit Helicopter MENU Table of content ................1.

  • Page 3: Introduction

    Kit Helicopter 1. Introduction Thank you for choosing CopterX Black Angel! You are about to enter the world of high performance electric powered mini helicopter. Black Angel is developed by our professional team with full 3D capability. Please read the following instruction to ensure proper operation of this model.

  • Page 4: Self-Preparation (Equipment)

    Black Angel Kit Helicopter 4. Self-preparation (Equipment) Radio control equipment is necessary to complete the assembly. (Not included in kit) Brushless Motor Gyro Brushless ESC Li-Poly Battery Transmitter Reveiver Micro Servo x 3pcs(movements) Blade (6ch, helicopter system) (6ch or more) Micro Servo x 1pcs(tailrudder) 5.

  • Page 5: Symbols Guide

    Black Angel Kit Helicopter 6. Symbols Guide When following symbols were shown, please add glue or oil accordingly to ensure proper operation. Thread Lock CA Glue Apply Thread Lock according to the picture above and wipe of excess if necessary.

  • Page 6: Assembly Section

    Black Angel Kit Helicopter 7. Assembly Section Code No. Name Specification Q’ty Code No. Name Specification Q’ty 121006 Feathering Shaft Ø 4x45.5 040200 Dumper Rubber Ø 8x Ø 4x4 111002D Metal Main Rotor Housing 121004 1.5mm Pin Ø 1.5x20 Larger ID Loose Fit On Metal Main Rotor Housing Smaller ID Tight Fit On Metal Main Rotor Housing...
  • Page 7 Black Angel Kit Helicopter Code No. Name Specification Q’ty Code No. Name Specification Q’ty 070074 Ø 5 Flanged Bearing Ø 5x Ø 2x2.5 111011B Flybar Seesaw 070073 Ø 5x Ø 2x2.5 Bearing Ø 5x Ø 2x2.5 121060 Flybar Ø 2x209 030034 Ø...
  • Page 8 Black Angel Kit Helicopter Code No. Name Specification Q’ty Code No. Name Specification Q’ty 021074 M2x10 Screw M2x10 021090 M2x7 Collar Screw M2x7 141017 Radius Arm 111014B Washout Base 161009 Linkage Ball 030034 Ø 3x Ø 2x0.5 Washer Ø 3x Ø 2x0.5 111019B Swashplate 161020...
  • Page 9 Black Angel Kit Helicopter Code No. Name Specification Q’ty Code No. Name Specification Q’ty 070075 Ø 11x Ø 5x5 Bearing Ø 11x Ø 5x5 211021B Main Shaft Bearing Block 211034B Motor Mount 211085B Frame Mounting Bolt(Motor) 211083B Frame Stiffener 021072 M2x6 Screw M2x6 021071...
  • Page 10 Black Angel Kit Helicopter Code No. Name Specification Q’ty Code No. Name Specification Q’ty 251035B Battery Mounting Plate 021078 M2x4 Flat Head Screw M2x4 Aluminum Battery 211038B 251025 Anti-Rotation Plate Mounting Base 021071 M2x4 Screw M2x4 211082B Anti-Rotation Mount 021074 M2x10 Screw M2x10 211029...
  • Page 11 Black Angel Kit Helicopter Code No. Name Specification Q’ty Code No. Name Specification Q’ty 211065 Tail Drive Gear 211063 Main Drive Gear Hub 070077 One Way Bearing Ø 10x Ø 6x12 241033 Main Drive Gear 021090 M2x7 Collar Screw M2x7 221072 One Way Bearing Shaft Code No.
  • Page 12 Black Angel Kit Helicopter Code No. Name Specification Q’ty Code No. Name Specification Q’ty 021074 M3x3 Set Screw M3x3 211064 5mm Collar 040201 Drive Belt 021077 M2 Nylock Nut 021840 M2x10 Socket Head M2x10 Code No. Name Specification Q’ty Code No. Name Specification Q’ty...
  • Page 13 Black Angel Kit Helicopter Code No. Name Specification Q’ty Code No. Name Specification Q’ty 311046 Idle Pully 070073 Ø 5x Ø 2x2.5 Bearing Ø 5x Ø 2x2.5 311044B Metal Tail Case 070078 Ø 8 Flanged Bearing 021075 M2x16 Screw M2x16 021072 M2x6 Screw M2x6...
  • Page 14 Black Angel Kit Helicopter Code No. Name Specification Q’ty Code No. Name Specification Q’ty 311052B Slide Shaft 070081 Ø 8x Ø 5x2.5 Bearing 341051B Bearing Holder 311054B Rudder Control Arm 021090 M2x7 Collar Screw M2x7 331059 Collar B M2x6 021087 M2 Nut 030034 Ø...
  • Page 15 Black Angel Kit Helicopter Code No. Name Specification Q’ty Code No. Name Specification Q’ty 021073 M2x8 Screw M2x8 341062B Tail Boom Brace End 090091 Metal Tail Boom Brace 021072 M2x6 Screw CF Horizontal 311040 351041 CF Horizontal Stabilizer M2x6 Stabilizer Mount 021071 M2x4 Screw M2x4...
  • Page 16 Black Angel Kit Helicopter Code No. Name Specification Q’ty Code No. Name Specification Q’ty Servo (Not included) Gyro (Not included) M2 Nut 021073 M2x8 Screw M2x8 Double Side Tape 14mm 26mm...
  • Page 17 Black Angel Kit Helicopter Code No. Name Specification Q’ty Code No. Name Specification Q’ty 021076 M3x16 Socket Head M3x16 011080 CF Paddle CF Main Rotor Blade 021086 M3 Nylock Nut 011082 Canopy Grommet 011083 Canopy 041081 Receiver Antenna Tube A=90° Tail servo horn When A be 90°, B will be around 3.6mm After setting Head Lock mode, correct position of tail servo and tail...
  • Page 18 Black Angel Kit Helicopter 0° Set flybar paddle horizontally Set control arm horizontally Set swashplate horizontally Rudder Servo Battery Gyro Motor Receiver position FUTABA / HITEC Transmitter / Servo JR Transmitter / Servo Pitch: CH6 Aileron: CH2 Elevator: CH3 Elevator: CH2 Pitch: CH6 Aileron: CH1 Aileron (CH1)
  • Page 19 Black Angel Kit Helicopter MODE 1 DOWN Fly Forward Fly Backward Tilt Right Fly Forward Left Right Fly Backward Tilt Left RIGHT LEFT Ascent Right Descent Ascent / Acceleration HIGH Left Descent / Deceleration Left Right...
  • Page 20 Black Angel Kit Helicopter MODE 2 DOWN Fly Forward Fly Backward Tilt Right Fly Forward Fly Backward Left Right Tilt Left RIGHT LEFT Ascent Right Descent Ascent / Acceleration HIGH Left Descent / Deceleration Left Right...

  • Page 21: Pitch And Throttle Setting

    Black Angel Kit Helicopter 8. Pitch and Throttle Setting General Flight GENERAL FLIGHT +9°~+11° Throttle Pitch 100% High speed +9°~+11° 65%~70% Hovering +5°~+6° Stick position at high / Throttle 100% / Pitch +9°~+11° 0% Low speed 0° +5°~+6° 100° 85° 65°...
  • Page 22 Copyright © 2008 KY MODEL Company Limited.
