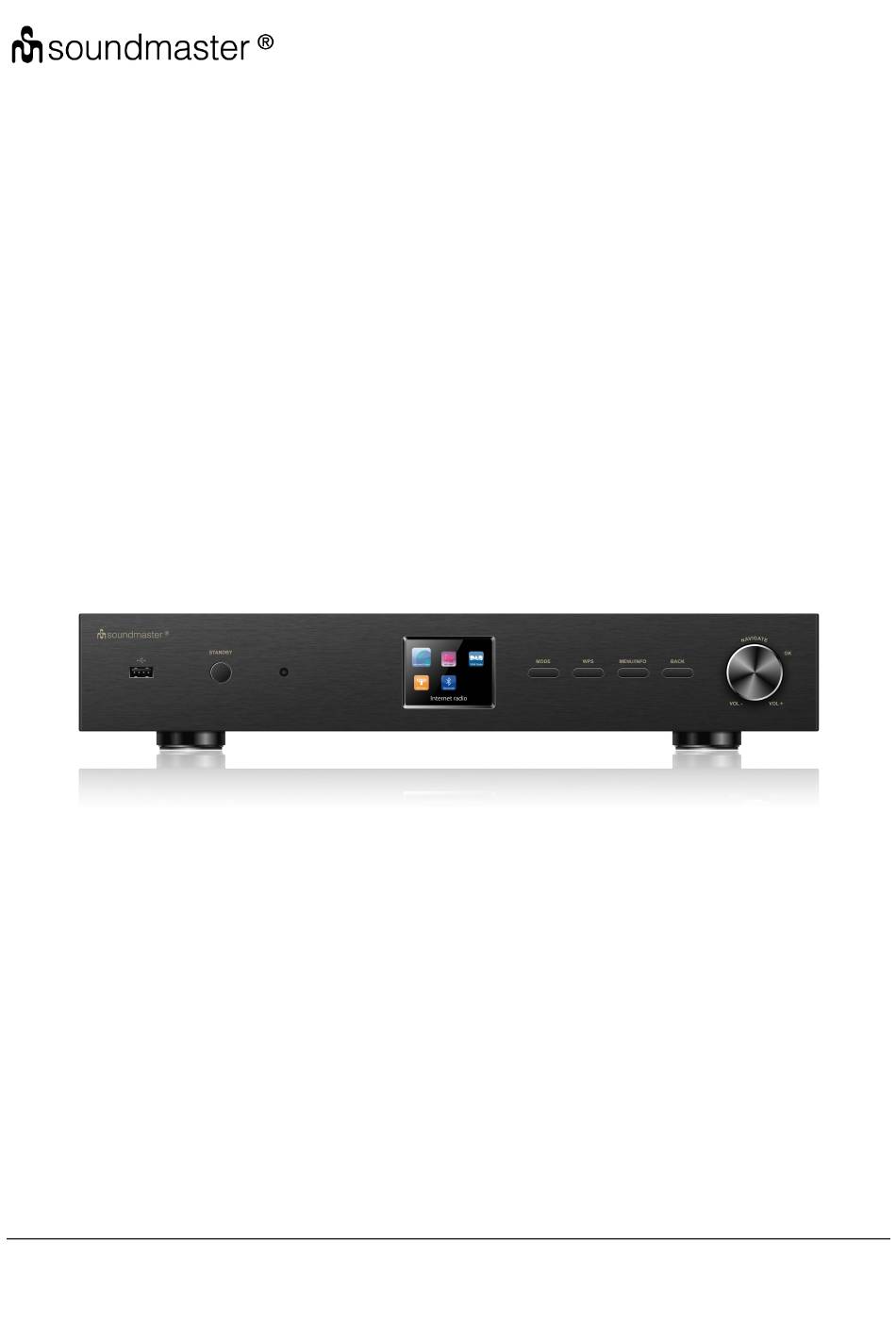

IR43DAB / English Manual
19inch Tuner
IR43DAB
User Manual
Thank you very much for buying the Tuner. In order to let you freely operate the product and
fully enjoy the overbalancing happiness it brings you, we have introduced each function of the
player in detail in this user manual. Please carefully read this user manual before use and keep
for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IR43DAB and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SOUNDMASTER IR43DAB

Summary of Contents for SOUNDMASTER IR43DAB

  • Page 1 IR43DAB / English Manual 19inch Tuner IR43DAB User Manual Thank you very much for buying the Tuner. In order to let you freely operate the product and fully enjoy the overbalancing happiness it brings you, we have introduced each function of the player in detail in this user manual.

  • Page 3: Table Of Contents

    IR43DAB / English Manual Table of Contents 1. Network Requirement 2. Safety Precaution 3. Appearance and Key Description 4. Getting Started 5. IR43DAB Functions Main Menu System Settings Internet Radio Music Player DMR (DLNA streaming) Bluetooth Sleep 5.10 Alarm 5.11 Extra Features 6.

  • Page 4: Network Requirement

     If the IR43DAB is moved from a cold environment into a warmer one, do let it adapt to the new temperature before operate the device. Otherwise, it might lead to condensation and cause malfunctions in the device.

  • Page 5: Appearance And Key Description

    IR43DAB / English Manual dried off after cleaning.  When you are necessary to ship the IR43DAB store it in its original package. Save the package for this purpose.  If you have to dispose the device in the future, note that it should not be disposed with household waste.
  • Page 6 IR43DAB / English Manual Description Functions USB jacket USB playback and charging Standby button Basic control of operation Remote control signal LED light Indication MODE Button Basic control of operation WPS Button Basic control of operation Menu/Info button Basic control of operation...
  • Page 7 IR43DAB / English Manual Coaxial Out SPDIF Coaxial digital output Line Out-R 3.5mm jack for speaker connection – Right channel Line Out-L 3.5mm jack for speaker connection –Left channel LAN port Ethernet connection DC IN Power supply Bluetooth Antenna Strengthen the Bluetooth receiver...

  • Page 8: Getting Started

    Connect the FM antenna, WiFi antenna and Bluetooth antenna to the back of IR43DAB. And connect the RCA audio cable to the Line out jacks of IR43DAB and your own speaker. Then connect the power adaptor to the back of IR43DAB and plug it into power socket. (Turn on your own speaker if need audio out.)
  • Page 9 At the first time operation, system asks if you want to start the Setup Wizard. Select YES to continue the setup. Details of the Setup Wizard can be referred to Section 5.2.1 below. After choosing NO, the next screen asks if you would like to run the wizard next time IR43DAB is started.
  • Page 10 Open Windows Media Player on the computer (11 or later). Alternatively, other platforms or server such as Windows Media Connection may be used. Allow to share your media to IR43DAB, under the “Media stream” option. Add the audio files and folders you want to share with IR43DAB to the media library.

  • Page 11: Ir43Dab Functions

    IR43DAB / English Manual IR43DAB Functions Main Menu Under the main menu, you can select the following modes: Internet Radio, Bluetooth, Media Player, DAB, FM, Sleep and Alarm System Settings 5.2.1 Setup Wizard Choose languages as your preference Time/date Display format Select 12 or 24 as the time format.
  • Page 12 Select the Wlan region to obtain the optimal Wlan connectivity: Most of Europe Scanning for the network IR43DAB is compatible with all common network protocols and encryption methods. It searches for the available networks and list them out for you choose.
  • Page 13 IR43DAB searches the available AP. Use one of the following methods of connection: There is the shortcut WPS key on the unit. Push button IR43DAB prompts you to press the connect button on the router. It then scans for a ready Push Button Connect network and connects.
  • Page 14 Enter key as for a standard encrypted network. For more information on setting up a WPS encrypted network, see your WPS router’s instructions. Completion IR43DAB attempts to connect to the selected network. It will show connected if the setup is successful. If connecting fails, IR43DAB returns...
  • Page 15 IR43DAB / English Manual to a previous screen to try again. Press to quit the setup wizard 5.2.2 Equaliser Several preset EQ modes are available: Normal, Flat, Jazz, Rock, Movie, Classic, Pop and News. Also a user-defined setting is available; create your own EQ with custom bass, treble and loudness settings.
  • Page 16  Network profile IR43DAB remembers the last four wireless networks it has connected to, and automatically tries to connect to whichever one of them it can find. From here you can see the list of registered networks. You can delete unwanted networks by turning and pressing then choosing YES to confirm delete.
  • Page 17 If you choose to keep network connected, the WiFi will not disconnect even you are in standby mode. Otherwise, the connection will only available. This option allows IR43DAB to be ready for DLNA streaming in any operating modes. Details for DLNA streaming, refer to Section 5.5.

  • Page 18: Internet Radio

    Internet Radio IR43DAB can play thousands of radio stations and podcasts from around the world though a broadband Internet connection. When you select Internet radio, IR43DAB directly contacts the Frontier Silicon Internet radio portal (which is supported by v-tuner) to get a list of stations.
  • Page 19 IR43DAB / English Manual If you are already listening to an Internet radio station, you can press Back button or on the remote control to quickly return to the last visited branch of the menu tree, rather than MENU to go to the first menu of Internet radio mode.
  • Page 20 Internet radio portal. To register your IR43DAB, choose Station list > Help > Get access code to get your radio’s unique portal access code first. (Do not confuse the portal access code with the Radio ID from System settings.

  • Page 21: Music Player

    IR43DAB / English Manual Once your radio is registered with the portal, you can immediately use the Internet radio favourites and added stations features. To store a playing station as a favourite, press and hold until the display shows ‘Favourite added’. The station appears in the default favourites list Stations.
  • Page 22 Select the shared media you want to play. From this point on, the menus are generated from the shared media server. The first menu shows a list of media types, for example Music, Video, Pictures and Playlists. IR43DAB can only play music and playlists.
  • Page 23 IR43DAB / English Manual There is also a search function which finds tracks in a similar way to Internet radio search. From Music, there are numerous ways of selecting tracks including Genre, Artist, Album, Composer and Rating. Once you have found a track you want to play, press .
  • Page 24 IR43DAB / English Manual From this point on, menus are generated from the folders on the USB device. Browse folders with the navigate reel and Back button, or direction keys on the remote control. The display shows folder and file names (not necessarily track names).

  • Page 25: Dmr (Dlna Streaming)

    IR43DAB. You can share the music files from PC, Android mobile or tablet, and directly use your PC, Android mobile, tablet or iPhone / iPad to control music playback on the IR43DAB. It is simple called DLNA streaming.
  • Page 26 IR43DAB / English Manual Open Windows Media Player to enable Allow remote control of my Player. Right click any music in the library and choose Play to IR43DAB.
  • Page 27 IR43DAB / English Manual A box of music playback pops up for the streaming.
  • Page 28 It is suggested to use iMediaShare on Android mobile, tablet or iPhone/iPad. Procedures for playing shared music on the app are as follows: Select IR43DAB as the player. Select music server and choose the music. Select player Select server...

  • Page 29: Dab

    5.6.1 Scanning for stations The first time you select DAB radio mode, or if the station list is empty, IR43DAB automatically performs a full scan to see what stations are available. You may also need to start a scan manually to update the list of stations for one of the following reasons: Available stations change from time to time.
  • Page 30 IR43DAB / English Manual If reception was not good for the original scan, this may result in an empty or incomplete list of available stations. If you have poor reception of some stations (burbling), you may wish to list only stations with good signal strength.
  • Page 31 IR43DAB / English Manual access your favourite stations 1- 0 quickly and easily by using the number buttons on the remote control. 5.6.3 Now playing information While the stream is playing, the screen shows its name and DLS (Dynamic Label Segment) information broadcast by the station giving real-time information such as programme name, track title and contact details.
  • Page 32 IR43DAB / English Manual To find a station, press . The frequency display starts to run up as IR43DAB scans the FM band. Alternatively, you can scan up or down by pressing and holding the buttons <- or -> or tune manually with quick presses, or by turning the navigate reel.

  • Page 33: Bluetooth

    IR43DAB / English Manual 5.7.3 Settings Scan settings /Choose FM at first, it will go to a specific station playing. Then press “Menu” on the product to get above table. By default, FM scans stop at any available station. This may result in a poor signal-to-noise ratio (hiss) from weak stations.

  • Page 34: Sleep

    IR43DAB / English Manual Press on the remote control to play or pause the music. You can also press on the remote control to play the previous or next track. 5.9 Sleep To set the sleep timer, select Sleep under Main menu or press SLEEP/SNOOZE button on the remote control.

  • Page 35: Extra Features

    5.11 Extra Features 5.11.1 RCA analog stereo out socket It allows you to connect the provided RCA audio cable from IR43DAB to your own HiFi speaker system to enhance sound performance.

  • Page 36: Troubleshooting

    IR43DAB / English Manual 5.11.2 Coaxial out socket It allows you to connect a Coaxial audio cable from the device to your own HiFi speaker system to enhance sound performance. 5.11.3 SPDIF out socket It allows you to connect an Optical audio cable from the device to your own HiFi speaker system to enhance sound performance.
  • Page 37 IR43DAB / English Manual WiFi connection cannot be 1. Check the availability of WLAN network on the established. router. 2. Place the device closer to the router. 3. Make sure the password is correct. Wired connection cannot be 1. Check the availability of LAN network on the access established.
  • Page 38 IR43DAB and/or your device. All other undetermined cases. IR43DAB may process large amount of data after a period of operation, no matter in which mode, it will cause the system freeze or malfunction. Reboot IR43DAB if necessary.

  • Page 39: Specifications

    IR43DAB / English Manual Specification Model number IR43DAB Description Internet radio / network audio player Display 2.4", 320 x 240, TFT colour display IEEE 802.11b/g/n wireless (WiFi) Network supported 10/100 Ethernet (LAN) Encrypted key WEP, WPA, WPA2 (PSK), WPS Streaming...
  • Page 40 IR43DAB / English Manual Importer Wörlein GmbH Gewerbestrasse 12 D 90556 Cadolzburg, GERMANY Tel.: +49 9103 7167 – 0 Fax.: +49 9103 7167 – 12 Email: info@woerlein.com Web: www.woerlein.com...
  • Page 41 IR43DAB / English Manual...
  • Page 42 IR43DAB / English Manual Notice: The paint on the Aluminum back panel used is for the purpose of appearance enhancement, it is not insulated material. Specifications are subject to change without further notice. Copyright by Wörlein GmbH, D 90556 Cadolzburg...
