LEGRAND Vaddio CeilingMIC Installing Instructions

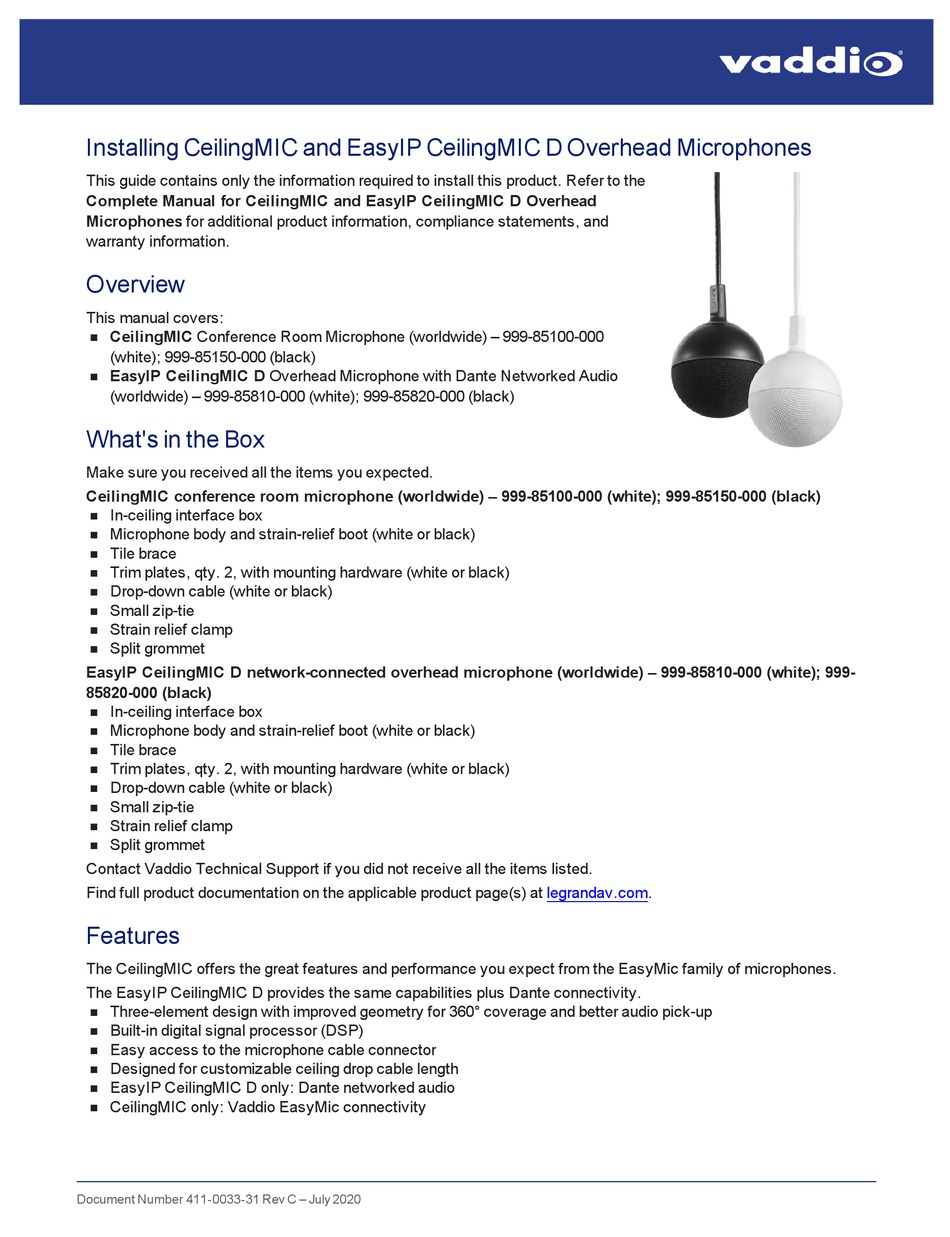

Installing CeilingMIC and EasyIP CeilingMIC D Overhead Microphones
This guide contains only the information required to install this product. Refer to the
Complete Manual for CeilingMIC and EasyIP CeilingMIC D Overhead
Microphones for additional product information, compliance statements, and
warranty information.

Overview

This manual covers:
CeilingMIC Conference Room Microphone (worldwide) – 999-85100-000
n
(white); 999-85150-000 (black)
EasyIP CeilingMIC D Overhead Microphone with Dante Networked Audio
n
(worldwide) – 999-85810-000 (white); 999-85820-000 (black)

What's in the Box

Make sure you received all the items you expected.
CeilingMIC conference room microphone (worldwide) – 999-85100-000 (white); 999-85150-000 (black)
In-ceiling interface box
n
Microphone body and strain-relief boot (white or black)
n
Tile brace
n
Trim plates, qty. 2, with mounting hardware (white or black)
n
Drop-down cable (white or black)
n
Small zip-tie
n
Strain relief clamp
n
Split grommet
n
EasyIP CeilingMIC D network-connected overhead microphone (worldwide) – 999-85810-000 (white); 999-
85820-000 (black)
In-ceiling interface box
n
Microphone body and strain-relief boot (white or black)
n
Tile brace
n
Trim plates, qty. 2, with mounting hardware (white or black)
n
Drop-down cable (white or black)
n
Small zip-tie
n
Strain relief clamp
n
Split grommet
n
Contact Vaddio Technical Support if you did not receive all the items listed.
Find full product documentation on the applicable product page(s) at legrandav.com.

Features

The CeilingMIC offers the great features and performance you expect from the EasyMic family of microphones.
The EasyIP CeilingMIC D provides the same capabilities plus Dante connectivity.
Three-element design with improved geometry for 360° coverage and better audio pick-up
n
Built-in digital signal processor (DSP)
n
Easy access to the microphone cable connector
n
Designed for customizable ceiling drop cable length
n
EasyIP CeilingMIC D only: Dante networked audio
n
CeilingMIC only: Vaddio EasyMic connectivity
n
Document Number 411-0033-31 Rev C – July 2020
