BEU SYSTEM PRACTICES
AT&TCo Standard
i
SECTION 501-164-130
Issue 12, August 1981
STATION DIALS
1035 AND F-56309 TYPES
IDENTIFICATION AND CONNECTIONS
1. GENERAL
1.01
This section contains information for 1035-
and F-56309 type dials. These dials are in-
tended for use with telephone sets equipped with ro-
tary dials to provide TOUCH-TONE" signaling.
T
.02
The reasons for reissuing this section are
listed below. Revision arrows are used to em-
phasize the more significant changes.
. Revise Fig. 11, 24, and 28
Change titles of Fig. 13, 15, 16, and 20 to show
appropriate Manufactured Discontinued
(MD) telephone sets.
1.03
The 1035AF3A dial is a direct replacement for
the 1035C3A (MD) dial (Fig. 1).
2. IDENTIFICATION
ORDERING GUIDE
2.01
*Add
Order
as
follows:
Bracket, 109B
Dial, 1035 AF3A-*
D-180644 Kit of Parts (554B [MD], 555B [MD]
,
556B [MD], and 558B [MD] telephone sets).
Note:
The 1035B3 (MD) and F-56309 (MD)
dials are similar. Initial production dials were
coded F-56309 and later models 1035B3. The
1035C3A (MD) and 1035AF3A dials are the
same in appearance. An * and a # designation
are used on the lower left and right buttons, re-
spectively.
appropriate color code suffix from Table A.

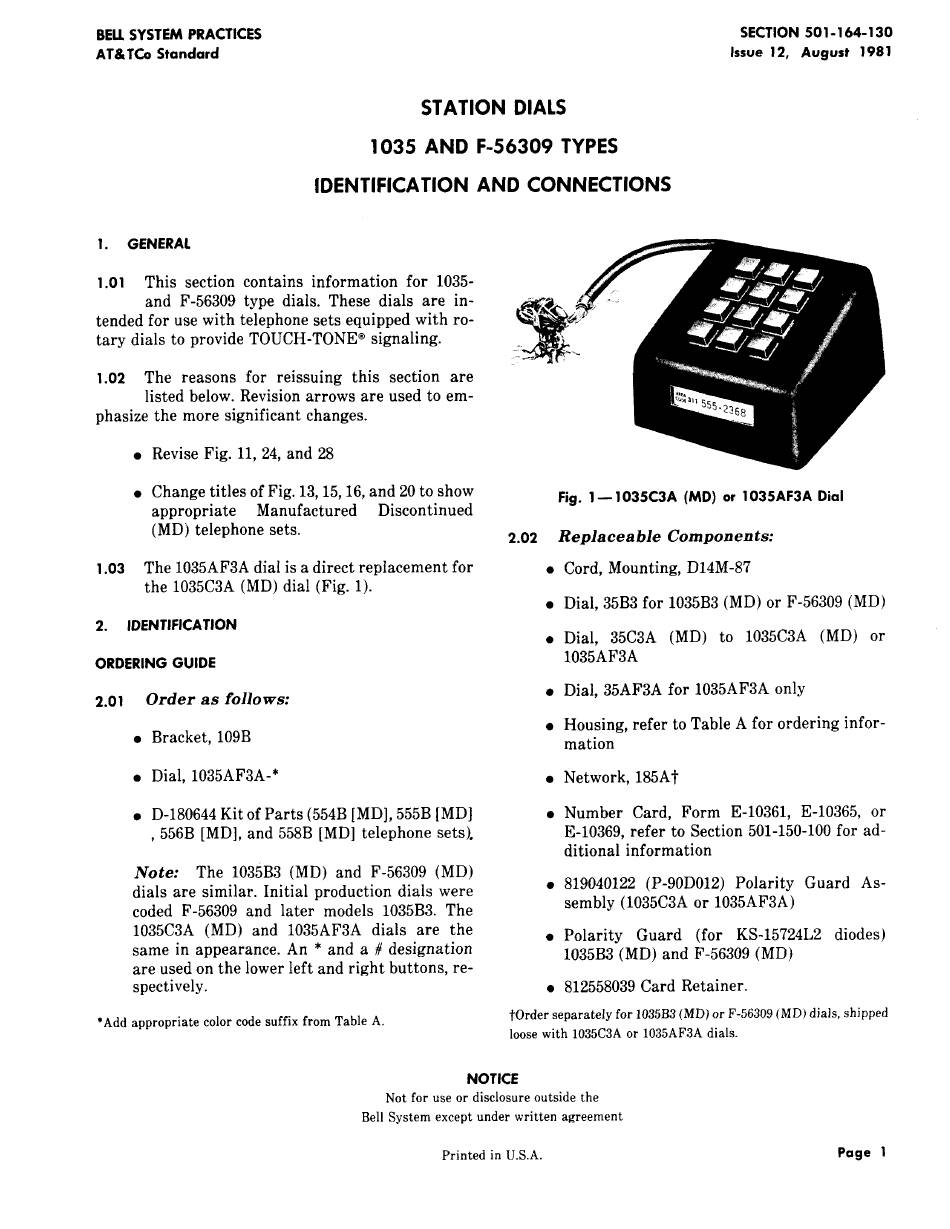

Fig.
l—
1035C3A (MD) or 1035AF3A Dial
2.02
Replaceable Components:
Cord, Mounting, D14M-87
Dial, 35B3 for 1035B3 (MD) or F-56309 (MD)
Dial, 35C3A (MD) to 1035C3A (MD) or
1035AF3A
Dial, 35AF3A for 1035AF3A only
Housing, refer to Table A for ordering infor-
mation
Network, 185AT
Number Card, Form E-10361, E-10365, or
E-10369, refer to Section 501-150-100 for ad-
ditional information
819040122 (P-90D012) Polarity Guard As-
sembly (1035C3A or 1035AF3A)
Polarity Guard (for KS-15724L2 diodes)
1035B3 (MD) and F-56309 (MD)
812558039 Card Retainer.
tOrder separately for I035B3 (MD) or F-56309 (MD) dials, shipped
loose with I035C3A
or
1035AF3A dials.
NOTICE
Not for use or disclosure outside the
Bell System except under written agreement
Printed in U.S.A.
Page 1
