Shoremaster 1007970 Instructions

Poly Swim Raft w/3 Step Ladder
Instructions
Part #: 1007970 - Yellow
1007980 - Grey
1024603 - Tan
Failure to follow instructions may result in personal injury and may invalidate the
applicable warranty.

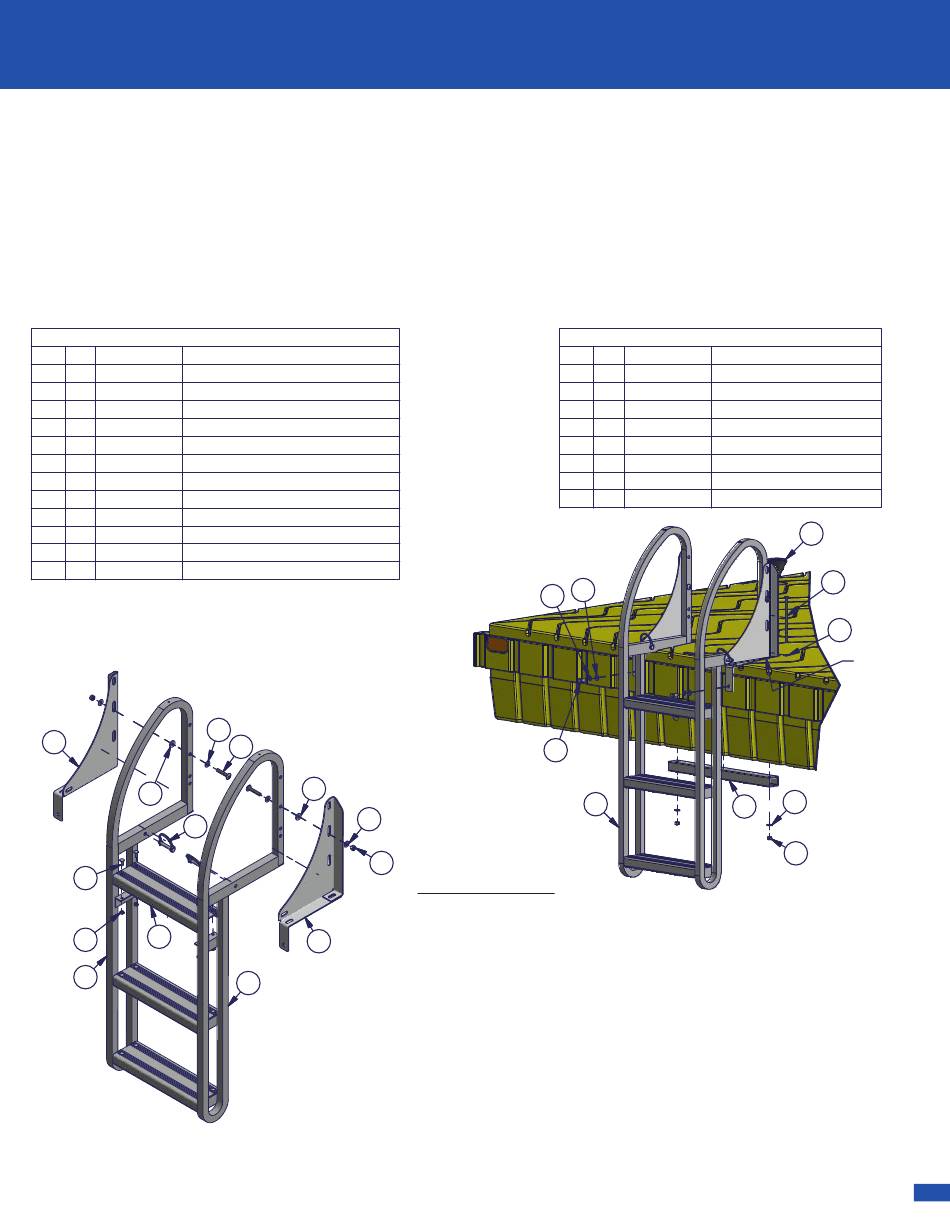

Parts List

ITEM QTY PART NUMBER
1 1 1005615 3 STEP LADDER FRAME LEFT
2 1 1005616 3 STEP LADDER FRAME RIGHT
3 3 1005785 Prt Ladder Step 15.0
4 12 1001950 Bolt Carriage 1/4-20 x .75 SS 304
5 12 1001797 1/4" NUT BRASS
6 2 1002469 POLY WASHER 3/8 ID X 1"OD X .093
7 2 1000338
Pin Snap 3/8 x 1.75
8 4 1002599 Washer Flat 3/8 SS
9 2 1001805 Nut Nyloc 3/8-16 Brass
10 1 1001778 Ladder Pivot Left
11 1 1001779 Ladder Pivot Right
12 2 1002426 BOLT 3/8" x 2.0 PHILLIPS MACH SCREW
See 1006596 - Pivoting Ladder instructions
for assembly and operating steps.
10
6
7
4
3
5
1
DESCRIPTION
8
12
6
8
9
11
2
ITEM
1
2
3
4
5
6
7
8
5
8
7
2

Attach Ladder

Step 1.
The rear of each Ladder Pivot is bolted through the
hole marked on the drawing as Hole Location. Two 3/8" x
6-1/2" bolts and two 3/8" washers are placed through the
rear of each ladder pivot. The bottoms of the two bolts are
secured through a Ladder Brace using two 3/8" washers and
two 3/8" Nyloc nuts.
Step 2.
The front of each Ladder pivot is bolted into a
threaded insert molded into the raft using two 3/8" x 1" bolts,
two 3/8" washers and two 3/8" lock washers on top.
SWIm RAftS
SWIm RAftS
Parts List
QTY PART NUMBER DESCRIPTION
2 1001094 Swim Raft Rubber Anchor Hold
1 1007634 3 Step Pivoting Ladder
1 1004979 Ladder Brace
2 1002447
3/8 X 6-1/2 Hex Bolt
6 1002599
3/8" Washer
2 1001805 3/8 Nyloc Nut
2 1002419 3/8 X 1 Hex Bolt
2 1002596 3/8 Lock Washer
3
SHOREMASTER.COM
1
4
5
Hole
Location
5
6
