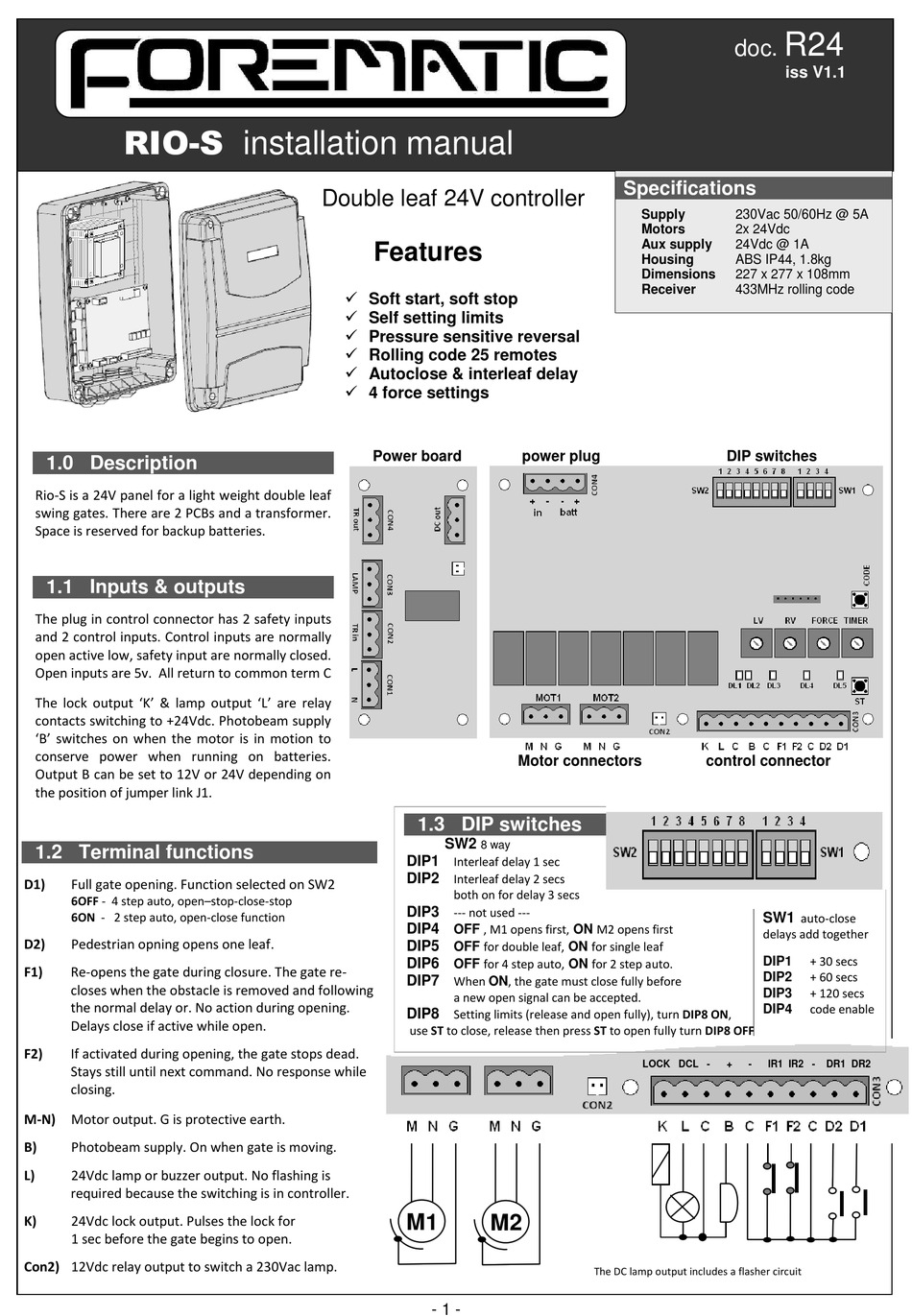

Forematic RIO-S Installation Manual

Rio-S
RIO-S installation manual

1.0 Description

Rio-S is a 24V panel for a light weight double leaf
swing gates. There are 2 PCBs and a transformer.
Space is reserved for backup batteries.
1.1 Inputs & outputs
The plug in control connector has 2 safety inputs
and 2 control inputs. Control inputs are normally
open active low, safety input are normally closed.
Open inputs are 5v. All return to common term C
The lock output 'K' & lamp output 'L' are relay
contacts switching to +24Vdc. Photobeam supply
'B' switches on when the motor is in motion to
conserve power when running on batteries.
Output B can be set to 12V or 24V depending on
the position of jumper link J1.

1.2 Terminal functions

D1) Full gate opening. Function selected on SW2
6OFF - 4 step auto, open–stop-close-stop
6ON - 2 step auto, open-close function
D2) Pedestrian opning opens one leaf.
F1) Re-opens the gate during closure. The gate re-
closes when the obstacle is removed and following
the normal delay or. No action during opening.
Delays close if active while open.
F2) If activated during opening, the gate stops dead.
Stays still until next command. No response while
closing.
M-N) Motor output. G is protective earth.
B) Photobeam supply. On when gate is moving.
L) 24Vdc lamp or buzzer output. No flashing is
required because the switching is in controller.
K) 24Vdc lock output. Pulses the lock for
1 sec before the gate begins to open.
Con2) 12Vdc relay output to switch a 230Vac lamp.
Installation manual
Double leaf 24V controller
Features
 Soft start, soft stop
 Self setting limits
 Pressure sensitive reversal
 Rolling code 25 remotes
 Autoclose & interleaf delay
 4 force settings
Power board

1.3 DIP switches

DIP1
DIP2
DIP3
DIP4
DIP5
DIP6
DIP7
DIP8
use ST to close, release then press ST to open fully turn DIP8 OFF
M1
- 1 -
power plug
Motor connectors
SW2
8 way
Interleaf delay 1 sec
Interleaf delay 2 secs
both on for delay 3 secs
--- not used ---
OFF , M1 opens first, ON M2 opens first
OFF for double leaf, ON for single leaf
OFF for 4 step auto, ON for 2 step auto.
When ON, the gate must close fully before
a new open signal can be accepted.
Setting limits (release and open fully), turn DIP8 ON,
M2
The DC lamp output includes a flasher circuit
R24
R24
doc.
doc.
iss V1.1
Specifications
Supply 230Vac 50/60Hz @ 5A
Motors 2x 24Vdc
Aux supply 24Vdc @ 1A
Housing ABS IP44, 1.8kg
Dimensions 227 x 277 x 108mm
Receiver 433MHz rolling code
DIP switches
control connector
SW1
delays add together
DIP1
DIP2
DIP3
DIP4
LOCK DCL - + - IR1 IR2 -
auto-close
+ 30 secs
+ 60 secs
+ 120 secs
code enable
DR1 DR2
