Mini Gadgets OmniBottle User Manual

Omnieye deluxe bottle with hidden camera
Hide thumbs

Advertisement

Quick Links

Download this manual

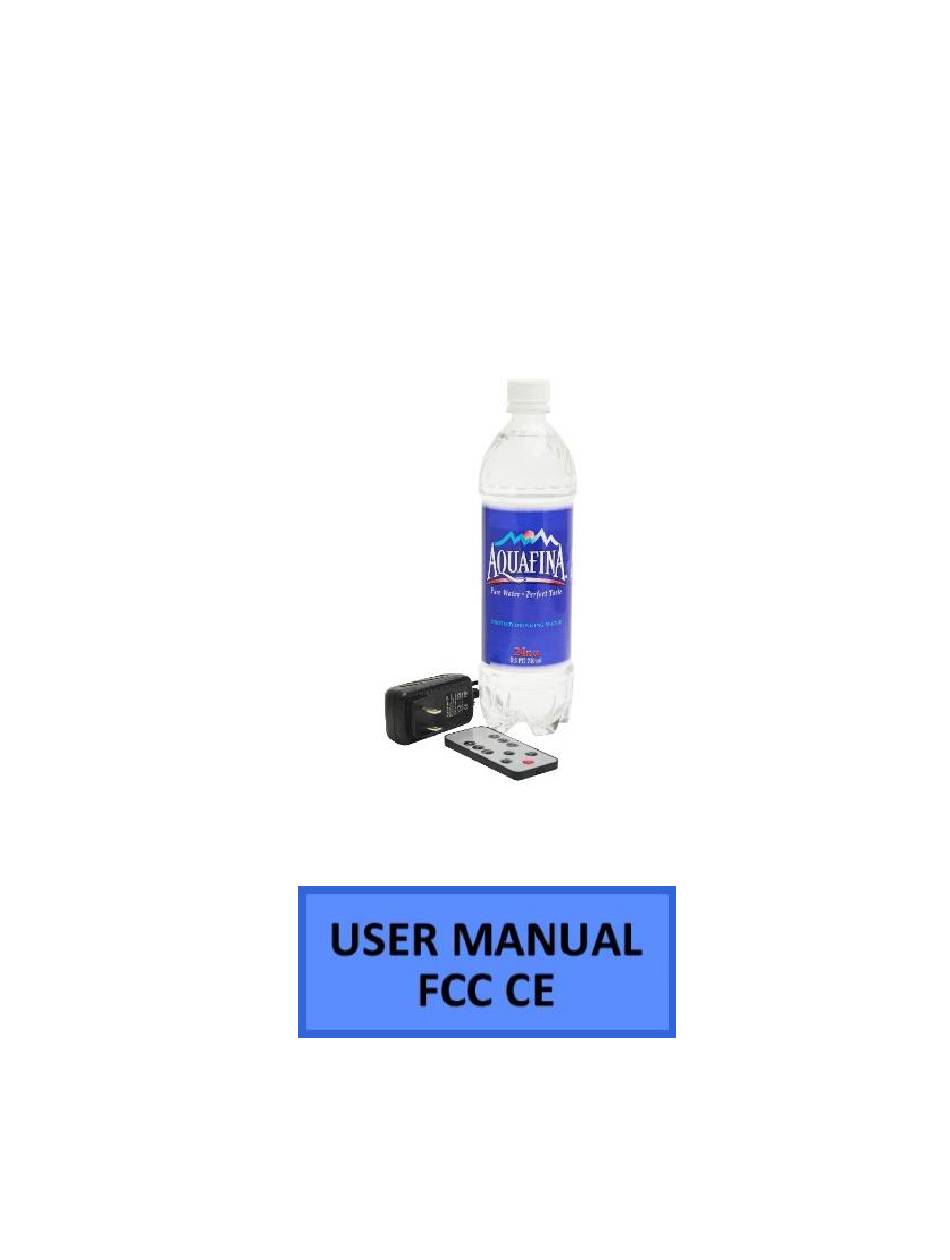

OmniEye Deluxe Bottle
With Hidden Camera
SKU: OmniBottle
1
Version 1.4

Advertisement

loading
Need help?

Need help?

Do you have a question about the OmniBottle and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Mini Gadgets OmniBottle

Summary of Contents for Mini Gadgets OmniBottle

  • Page 1 OmniEye Deluxe Bottle With Hidden Camera SKU: OmniBottle Version 1.4...
  • Page 2 THANK YOU FOR PURCHASING THE OMNIBOTTLE HIDDEN CAMERA Please read this manual before operating the camera and keep it handy. Your purchase should include:  1 x OmniBottle  1 x AC Wall Charger  1 x MicroUSB Cable ...
  • Page 3 GET FAMILIAR WITH YOUR OMNIBOTTLE HIDDEN CAMERA Version 1.4...
  • Page 4 Version 1.4...
  • Page 5 Version 1.4...
  • Page 6 The OmniBottle has 2 methods of charging: 1. First, you can connect the provided charging cable to the battery charging port on the 3D printed housing inside the bottle (see page 3 to locate charging port).

  • Page 7: Operating The Camera

    recommend charging for 4-6 hours to get a full charge. 2. Secondly, you may remove the battery from the housing, disconnect the battery connection and then use the matching charging connector and wall jack that was provided in your box to charge the battery via a wall outlet (see page 5).
  • Page 8 2. If you plug the device into an electrical outlet, the device will power on automatically and enter into motion detection mode. The Green light will blink once and then the Red light will blink 3 more times and turn off (if motion is detected immediately).
  • Page 9 detection button one time. The Green light will come on, and the device will be in standby mode. HOW TO RECORD VIDEO 1. When the camera is in Standby Mode, press the “Continuous Recording Button.” (see page 4) The Indicator LED will flash two times. 2.
  • Page 10 2. Once the photo is taken, the light will turn back to green and once again be in standby mode. HOW TO RECORD MOTION DETECTION 1. When the camera is in Standby Mode, press the “Motion Detection Button” (see page 4). 2.
  • Page 11 HOW TO STOP RECORDING MOTION DETECTION 1. While the camera is recording motion detection, press the “Motion Detection Button” once more. (The Indicator LED will turn on.) 2. The camera has stopped recording motion detection and is now in Standby Mode. HOW TO USE PIR SENSOR (If Applicable) Note: The “Motion Detection”...
  • Page 12 CHANGING YOUR DEVICE SETTINGS (INCLUDING THE DATE/TIME STAMP) Your OmniBottle comes with an A/V cable that is used to connect the device to a monitor/TV so that you can adjust various settings. 1. Connect your device to a monitor/TV using the provided A/V Cable.
  • Page 13 a. Resolution – Select from different resolutions. b. Time Stamp – Use this option to enable or disable the date/time stamp on videos. c. Loop Record – Choose whether you want the device to automatically overwrite the oldest file on the memory card if the memory becomes full.
  • Page 14 h. Setup -> Format – Use this to format your MicroSD card. All data on the disk will be permanently erased. i. Setup -> Language – Choose your language. j. Setup -> TV Output – Select between NTSC or PAL for video output. We recommend you do not adjust this setting.
  • Page 15 p. Setup -> FW Upgrade – This is not active on this device. q. Setup -> FW Version – Displays the firmware version of the device. MICROSD CARD SLOT To access the MicroSD Card Slot, you must unscrew the top of the device. See page 3 to locate the slot. 1.
  • Page 16 MicroSD cards 65GB and above will require special formatting to work. The device will not function with these cards if they are not properly formatted beforehand. Visit www.mgidownloads.com/Software and download the “guiformat.zip” file. Extract the files and follow the instructions in the “64GB SD Card Formatting.pdf” document.
  • Page 17  AutoPlay Removable Disk > Open folder to view files Or… Go to Start > Computer > Removable Disk Version 1.4...
  • Page 18 3. Open the Removable Disk drive. 4. Open the [folder name] folder. 5. Double click the file you want to view.  VLC Player is recommended for watching videos. If you are having video playback issues, such as a completely black video recording or “squiggly lines”, we recommend you use VLC media player to play back the videos.
  • Page 19 mouse, and then chose “Paste.” This will copy the file to your computer.  To delete a file, right click your mouse on the file name and choose “Delete” from the menu. You can quickly select all of the files by pressing “CTRL+A” on your keyboard.

  • Page 20: Troubleshooting

    TROUBLESHOOTING THE DEVICE WON’T TURN ON  Make sure the power cable is securely plugged into a functioning electrical outlet or the battery is charged. THE DEVICE HAS CRASHED  Press the reset button one time while the device is on. DEVICE CONTINUALLY RECORDS IN MOTION MODE ...

  • Page 21: Specifications

    SPECIFICATIONS Video 1920x1080 Resolution Video Format .MP4 Frames per 30 fps Second Vision Angle 65° Battery Life 10 Hours Continuous Recording Up to 30 Days in PIR Mode (if applicable) Motion 8 meters for straight-line Detection distance Photo 2560x1920 Resolution Photo Format .JPG Type of Memory...
  • Page 22 Recording Usage 10mins per 1GB USB Interface 2.0 USB Player Software VLC recommended Video H.264 Compression Version 1.4...
  • Page 23 Version 1.4...
  • Page 24 ☐ Remote ☐ Wall AC Adapter ☐ ___GB MicroSD Card ☐ Micro USB Cable ☐ 3.5mm to USB Cable ☐ A/V Cable ☐ MicroSD Card Reader ☐ Charging Adapter with Indicator Light ☐ OmniBottle QC Tech:__________________________________ Date: ____________________________________ Version 1.4...
