Symcod LBC-02/IP Manual

Telnet vt-100 emulation compatible as/400, unix, linux, windows

Table of Contents

Download this manual

1171 West Notre-Dame

Victoriaville, QC

CANADA

G6P 7L1

Telephone: (819) 751-0095 or (800) 203-9421

Fax: (819) 751-1292

LBC-02/IP

TELNET VT-100 EMULATION

COMPATIBLE

AS/400, Unix, Linux, Windows

Documentation Version (07/08/2007)

Use this documentation with the product : LBC-02/IP

Our Internet site:

http:// www.symcod.com/

Programmer Analyst: Steve Bilodeau

Email:

sbill@symcod.com

Table of Contents

Need help?

Do you have a question about the LBC-02/IP and is the answer not in the manual?

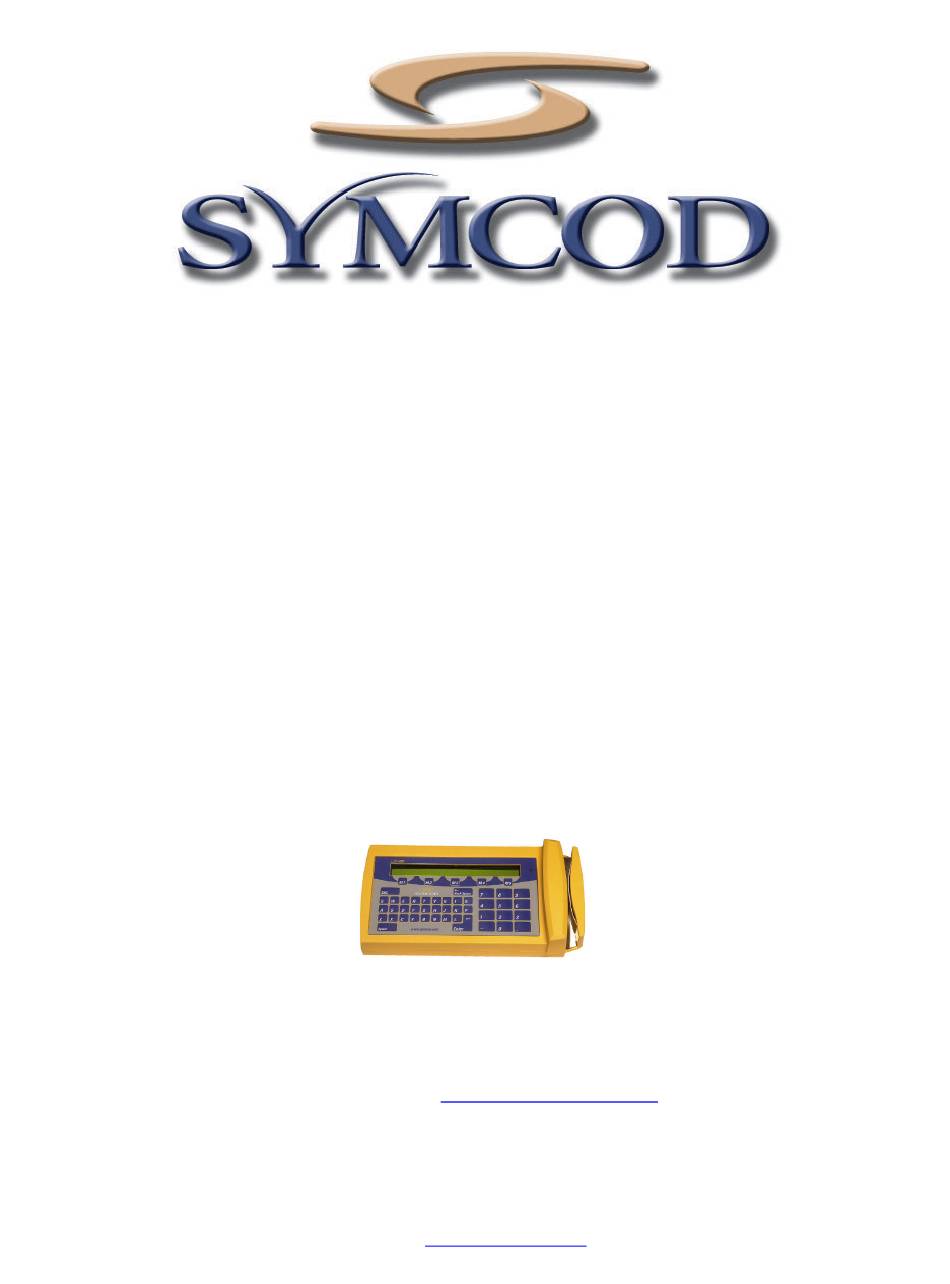

Page 1 Telephone: (819) 751-0095 or (800) 203-9421 Fax: (819) 751-1292 LBC-02/IP TELNET VT-100 EMULATION COMPATIBLE AS/400, Unix, Linux, Windows Documentation Version (07/08/2007) Use this documentation with the product : LBC-02/IP Our Internet site: http:// www.symcod.com/ Programmer Analyst: Steve Bilodeau Email: sbill@symcod.com...
Page 2 ESC = RESET (ESC R) LBC-02 KEYPAD SEQUENCES (Make this sequence directly on the LBC-02/IP KeyPad): ESC . 0 = Go to BOOT mode (In terminal Mode) ESC . 1 = Reset TCP/IP connection and Close TCP connection (In terminal Mode) ESC .
Page 3 KEYBOARD CONFIGURATION, IF YOU SEND THIS SEQUENCE AT LINE 3 OR MORE : ><K0 = Barcode set to OFF ><K1 = Barcode set to ON ><K2 = Keyboard set to OFF ><K3 = Keyboard set to ON ><K4 = Keyboard and Barcode set to OFF ><K5 = Keyboard and Barcode set to ON ><K6 = Keyboard mapping for UNIX ><K7 = Keyboard mapping for AS/400...
Page 4 TTL IN Enable / Desable / Request Status, , IF YOU SEND THIS SEQUENCE AT LINE 3 OR MORE : ><TxIy x = TTL Number 1 or 2 y = Sets the terminal TTL IN x to 0-DESABLE, 1-ENABLE 2-Request Status (Default = Disable) Sequence example, set TTL input 2 set to Enable: ><T2I1 &xy TTL IN RETURN:...
Page 5 * You can see your product DEVICE VERSION in the BOARD CONFIG software. MODE PASSIVE *To open a connection with the LBC-02/IP in mode PASSIVE use the port: 1024 In TERMINAL mode you can: - Press successively ESC. 0 to return to BOOT mode - Press successively ESC.
