Multi-Clean Bio-Pump AC 421810 Manual

Please use this equipment with care and observe all
warnings and cautions.
WEAR protective clothing and eyewear when dispensing
chemicals, emptying equipment or changing metering tips
ALWAYS observe safety and handling instructions.
ALWAYS direct discharge away from you or other persons.
ALWAYS dispense chemicals in accordance with instructions
on label and SDS.
Exercise CAUTION when maintaining your equipment.
KEEP equipment clean to maintain proper operation.
ALWAYS re-assemble equipment according to instruction
procedures. Be sure all components are fi rmly screwed or
latched into position.
1
3
4
1
Squeeze Tube Installation
Install the squeeze tube by removing the pump cover by depressing the tab on the front of the unit. (1) Place one end of the squeeze
tube on the left side of the pump in the slot provided. (2) Wrap the squeeze tube around the rollers of the pump. (3) Then stretch the
squeeze tube so that the end of the tube goes into the slot provided. (4) Replace the cover on the pump.
5
2

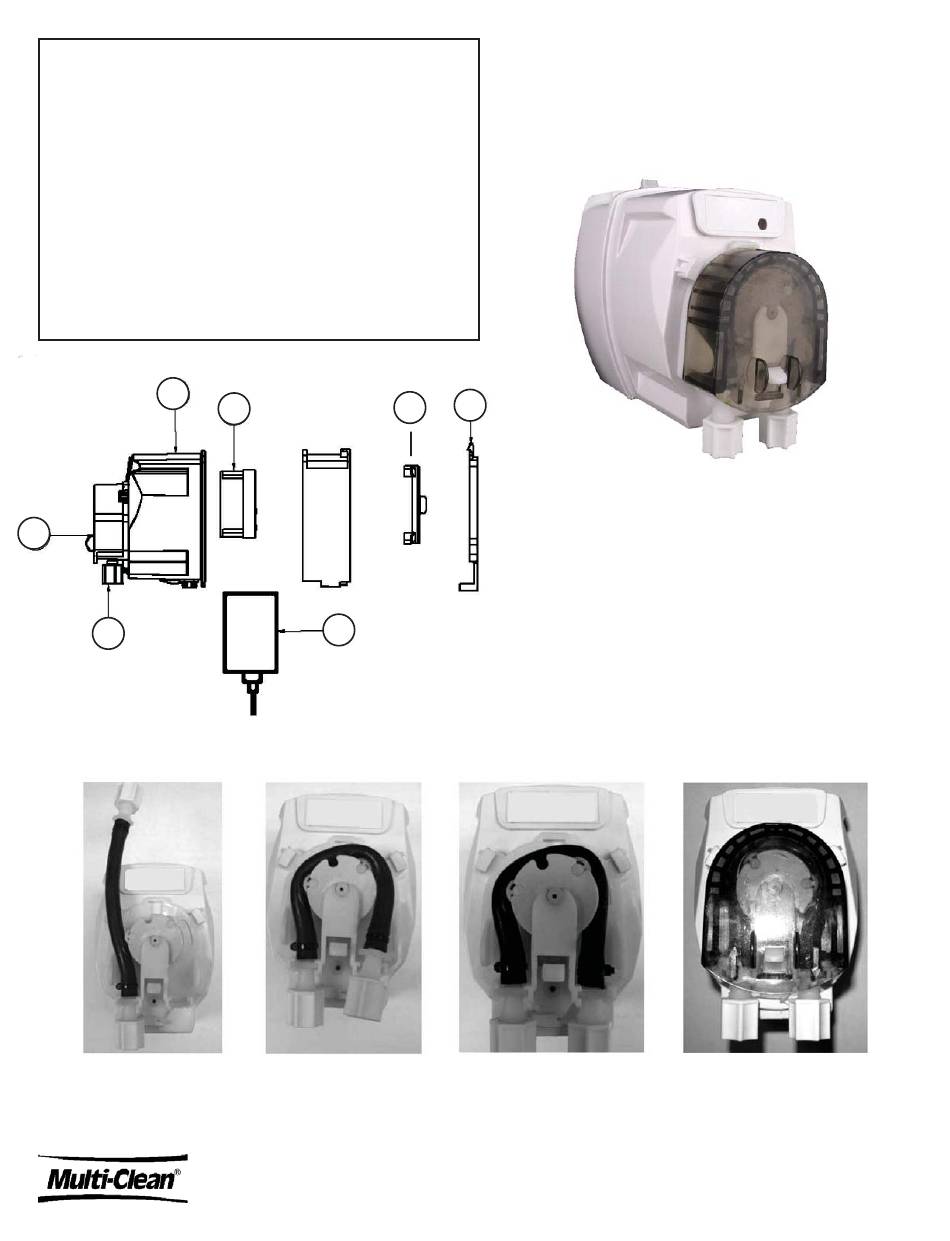

1. Pump housing
7
2. Timer boot
3. Pump
4. Squeeze tube
5. Timer cover
6. Base plate
7. Power supply
2
Part Number 421810
6
Setup Instructions
1. Remove all parts from carton.
2. Mount base plate to wall.
3. Install squeeze tube, see below.
4. Attach power supply.
5. Program timer, see back page
6. Attach pump to base plate.
7. Route draw hoses to product and drain
see fi gure 5 for fl ow direction.
3
Bio-Pump AC
Bio-Power Pump
4
19042016
