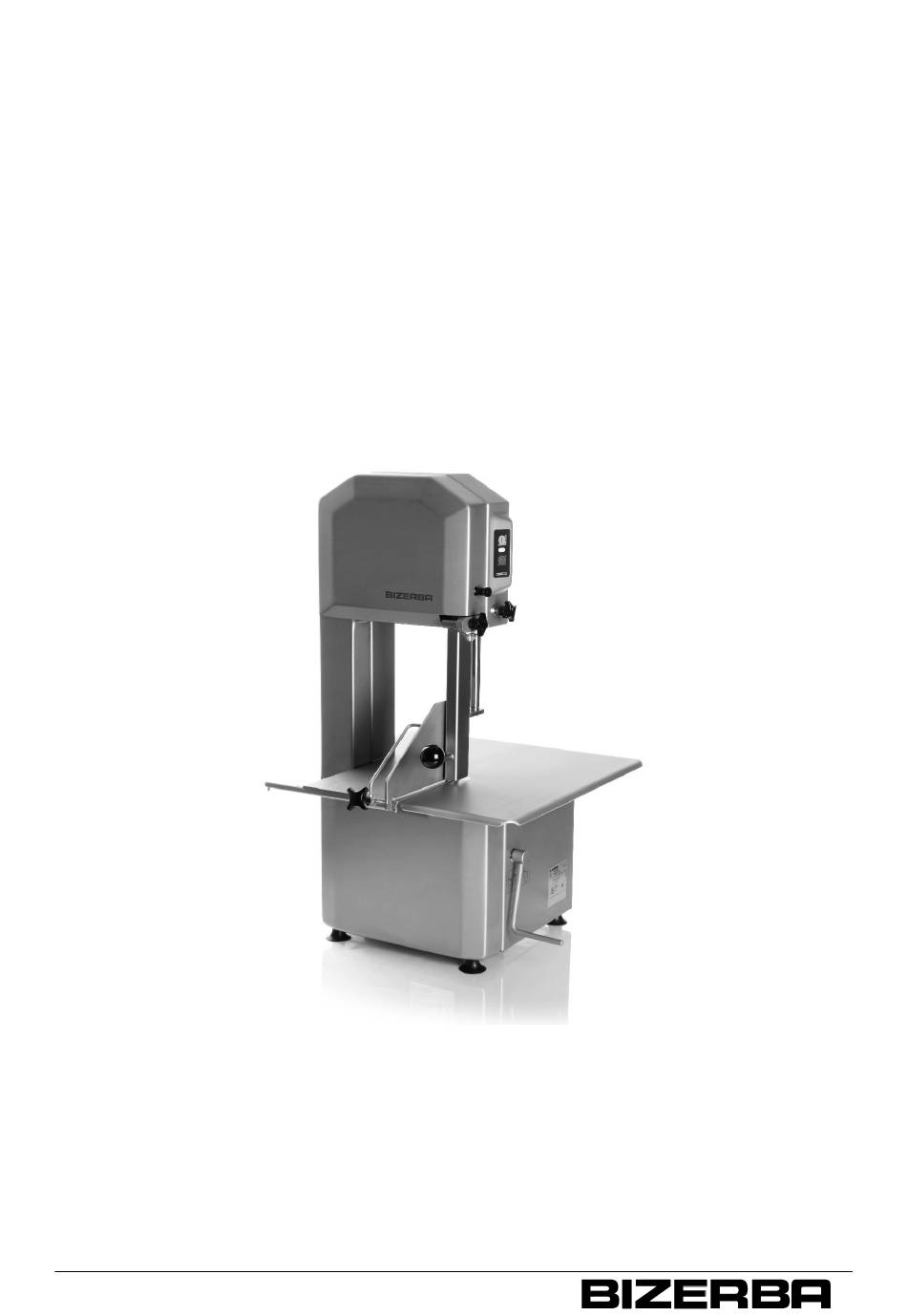

- Page 1 Meat and bone saw Carneoline Model FK 23 Operating instructions 6.066.98.5.10.05 en...
- Page 2 All rights reserved Tous droits réservés Reservados todos los derechos Tutti i diritti riservati © 08/2014 Bizerba GmbH & Co. KG, 72336 Balingen P.O. Box 10 01 64 72301 Balingen, Germany Telephone (+49 7433) 12-0, Fax (+49 7433) 12-2696 Email: marketing@bizerba.com...
- Page 3 Chapter index About these instructions About this machine Safety instructions Installation Machine and operating elements Operation Troubleshooting Maintenance Technical data Appendix 6.066.98.5.10.05 en...
- Page 4 6.066.98.5.10.05 en...
-
Page 5: Table Of Contents
Naming of FK 23 components ....... . . 2 -... - Page 6 Dimensions FK 23 ........
-
Page 7: About These Instructions
The machine may only be operated by trained personnel over the age of 14. This means that the operator has to be familiar with the contents of these operating instructions. Installation, maintenance and repair must be performed by Bizerba authorized specialists only. -
Page 8: Warnings
About these instructions Operating instructions FK 23 Warnings Warnings are divided into danger levels by the signal word above the warning symbol. Structure of warnings and meaning of signal words are described in these instructions as follows. DANGER Source of danger with high risk of imminent danger to persons! -
Page 9: About This Machine

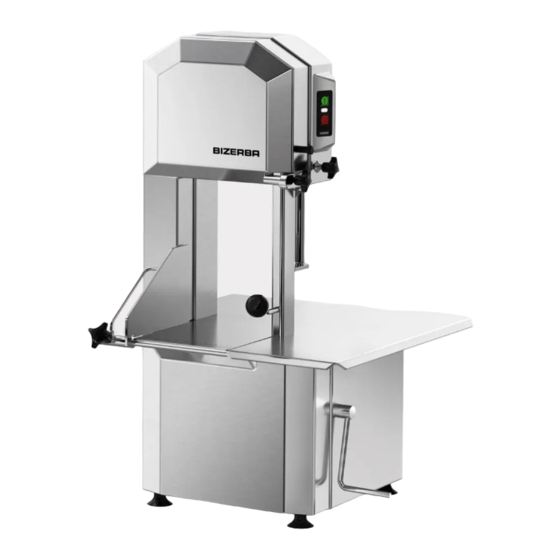

Operating instructions FK 23 About this machine About this machine Intended use This meat and bone saw is a technical work resource which is only suitable for application at work. This band-saw machine in desktop version was designed for clean and fast cutting or por- tioning of meat, frozen meat, bones and other food. - Page 10 About this machine Operating instructions FK 23 The height of the protective bar with the upper saw blade guide can be adjusted using the star knob. It can be quickly adjusted to any product height of max. 250 mm and clamped.
-
Page 11: Naming Of Fk 23 Components
Operating instructions FK 23 About this machine 2.2.1 Naming of FK 23 components Fig. 1: Naming of FK 23 components The machine is available in different versions. The figure shows an example: Deflection roller ON/OFF switch Product pusher Star knob, material pusher... -
Page 12: Accessories
To ensure that the machine is recycled environmentally friendly, return the machine to the manufacturer or the dealer after intended use has expired. Naturally, Bizerba and its dealers will take back free of charge old machines no longer in operation. - Page 13 Operating instructions FK 23 About this machine Please contact your specialist in this case. The application of these disposal regulations are based upon legal reg- ulations of the respective country. 6.066.98.5.10.05 en 2 - 5...
- Page 14 About this machine Operating instructions FK 23 2 - 6 6.066.98.5.10.05 en...
-
Page 15: Safety Instructions
Protective devices may not be removed, modified or bypassed. DANGER Open the electrical installation area! Risk of life from electric current. – The electrical installation area may only be opened by Bizerba Service. – Pull power plug before moving the machine. WARNING Unauthorized persons! Serious injuries to fingers and hands and damage to health. -
Page 16: Safety Instructions For Operation
Safety instructions Operating instructions FK 23 Safety instructions for operation WARNING Insufficient personal protective unit! Damage to health. – It is recommended to wear ear protection. – Please wear gloves when handling frozen products. – Please wear suitable working cloths. -
Page 17: Protective And Safety Equipment
Check if the machine is complete before it is re-started. – Check if components are positioned correctly and firmly. – Only use original Bizerba spare parts and accessories. Protective and safety equipment – Door lock, saw protected against switch-on when door open –... -
Page 18: Information Plates On Machine
Safety instructions Operating instructions FK 23 Information plates on machine DANGER! Read operating instructions prior to opera- tion to prevent serious bodily injury. Disconnect power prior to cleaning and maintenance. Authorized personnel only Operation, cleaning, sanitation and mainte- nance of the machine must be performed by qualified and trained personnel only. -
Page 19: Installation
The machine may only operate when positioned on a level floor. Installation and assembly Installation, putting into operation as well as instruction regarding operation, cleaning, maintenance, care and servicing, is initially carried out by the responsible Bizerba Custom- er Service Agent or the Bizerba specialist. 4.2.1... -
Page 20: Electrical Connection
Installation Operating instructions FK 23 4.2.2 Electrical connection Information on the rating plate Bizerba logo BIZERBA Machine type Model FK 23 Machine description Meat and Bone Saw Machine number Production code X-.. Protection class IP 55 Electrical data see specification plate Manufacturer's address Bizerba GmbH &... -
Page 21: Start-Up
Start-up Initial start-up as well as instructions on how to operate, clean, maintain and service the machine are initially provided by the responsible Bizerba service department or by a Bizer- ba specialist. Machine can only be operated if the saw door is closed. - Page 22 Installation Operating instructions FK 23 Pull out power plug. Clean machine as per cleaning instructions. 4 - 4 6.066.98.5.10.05 en...
-
Page 23: Machine And Operating Elements
Operating instructions FK 23 Machine and operating elements Machine and operating elements Membrane keyboard <I> (green) ON switch Lamp (white) <O> (red) OFF switch (reduced actuat- ing force) Fig. 6: Membrane keyboard Pressing the green key starts the drive. The signal lamp lights up. -
Page 24: Protective Bar With Saw Blade Guide
Machine and operating elements Operating instructions FK 23 For sawing, the pusher is swiveled away in order to accommodate the product. During cutting, the left hand rests on the lever knob and pushes the product against the saw blade. The pusher can be blocked in lifted posi- tion using the star knob. -
Page 25: Adjustment Device For Upper Wheel
Operating instructions FK 23 Machine and operating elements Position 0 = saw blade without tension: Position for periods during which the ma- chine is not in use / after work is completed Position 1 = saw blade with tension: Po-... - Page 26 Machine and operating elements Operating instructions FK 23 This setting should be checked from time to time, particularly after a saw blade change. Changing settings Loosen locking lever on rear side. Turn the star knob to slightly change the position of the upper wheel.
-
Page 27: Operation
Operating instructions FK 23 Operation Operation Only products approved in compliance with the specifications of this documentation may be sliced. See chapter on Intended Use. Preparations for sharpening The protective bar should always be adapted to the product height! Sawing without using the material pusher is not permissible. -
Page 28: Saws
Operation Operating instructions FK 23 Meat pan For longer cutting periods and in order to speed up operation, place a meat pan be- hind the machine and let meat pieces drop into it. Saws DANGER Movable parts, especially the saw blade! Serious injuries. - Page 29 Operating instructions FK 23 Operation Using your left hand, move product against saw blade with product pusher. Feed product by holding it with your right hand. Saw blade! Risk of injury. Do not put your fingers into the sawing field.
- Page 30 Operation Operating instructions FK 23 6 - 4 6.066.98.5.10.05 en...
-
Page 31: Troubleshooting
Switch off machine immediately if untypical noises are heard or if there is a suspected risk of injury. Call the responsible Customer Service if you are unable to rectify the fault yourself. Please provide your Bizerba customer service point with the following details: – Machine type (see rating plate), –... - Page 32 Troubleshooting Operating instructions FK 23 7 - 2 6.066.98.5.10.05 en...
-
Page 33: Maintenance
Operating instructions FK 23 Maintenance Maintenance Preparation for cleaning Clean thoroughly: – before putting into operation – depending on use and application frequency – if extremely soiled, several times a day – after end of process – after a longer down time... -
Page 34: Removing Components
Maintenance Operating instructions FK 23 Removing components Do not place parts on top of each other to avoid mechanical damage. Fig. 17: Removing components Put on cut-resistant gloves. Open saw door at handle (magnetic lock). Remove collecting bin via the door. -
Page 35: Cleaning
Operating instructions FK 23 Maintenance Peel off saw blade deflector and deflector from bearing bolt. Now the machine is ready for cleaning. Cleaning CAUTION High-pressure cleaner! If water gets into the machine it can damage electric components. – Do not use a high pressure cleaner for cleaning. -
Page 36: Cleaning Plan Sawing
Maintenance Operating instructions FK 23 Cleaning plan Sawing Work steps Cleaning Procedure Cleaning devices Note agents Preparatory Switch off the measures machine, pull out power plug. Disassemble in accordance all removable with instruction parts manual Rough clean- Remove any Plastic deflector,... - Page 37 The safety sheets and product sheets supplied with the cleaning and disinfectants must be read. The cleaning agent can be acquired from the BIZERBA customer services: Description Order No. Packaging unit...
-
Page 38: Preparing The Machine For Operation
Maintenance Operating instructions FK 23 Preparing the machine for operation To avoid interferences and injuries, assembly must be carried out carefully and conscien- tiously. Attach the components as follows: Fig. 18: Mount components Put on cut-resistant gloves. Push the deflector on the bearing bolt. -
Page 39: Care Of Machine, Servicing, Maintenance
Operating instructions FK 23 Maintenance Then loop it over the upper wheel and place it on the drive disk by routing it through the deflectors. Check the position of the saw blade in the guidance and on the wheels. Tension saw blade, bring clamping unit lever in position 1. - Page 40 Maintenance Operating instructions FK 23 8 - 8 6.066.98.5.10.05 en...
-
Page 41: Technical Data
Operating instructions FK 23 Technical data Technical data Dimensions FK 23 Fig. 19: FK 23 Outer dimensions (max. space requirement): Length = 580 mm = 22.8" Width = 520 mm = 20.5" Height = 857 mm = 33.7" Installation surface: Length = 350 mm = 13.8"... -
Page 42: Power Supply
Technical data Operating instructions FK 23 Power supply Technical data of power supply – Mains supply Single-phase alternating current or three-phase alternating current, see rating plate – Permissible mains voltage tolerance (static) normal At 120 to 400V: +6% to -10% of nominal value At 230 to 400V: +6% to -10% of nominal value –... - Page 43 Operating instructions FK 23 Appendix Appendix Declaration of conformity Declaration of conformity for plastic materials with direct food contact 6.066.98.5.10.05 en...
- Page 44 Appendix Operating instructions FK 23 6.066.98.5.10.05 en...
-
Page 45: Declaration Of Conformity
The basis for the declaration of conformity is the contract documents (Bizerba pur- chase order documents). In the event of a modification to a machine of the above description that is not coor- dinated with Bizerba or not carried out by Bizerba, this declaration looses its validi- Date: 01.08.2014 Signature of manufacturer: i. -
Page 46: Declaration Of Conformity For Plastic Materials With Direct Food Con
Functional barriers made of plastic are not used in the specified machine. Information on suppliers or preliminary suppliers can be provided on request. Date: 22.10.2012 Signature of manufacturer: ppa. Title of signatory: Andreas Wilhelm Kraut Chief Executive Officer Development (CEO-D) Bizerba GmbH & Co. KG 6.066.98.5.10.04 en...
