Summary of Contents for FURNITURE VILLAGE 5687-2
- Page 1 Self Assembly Instructions...
-
Page 2: Pre-Assembly Preparation

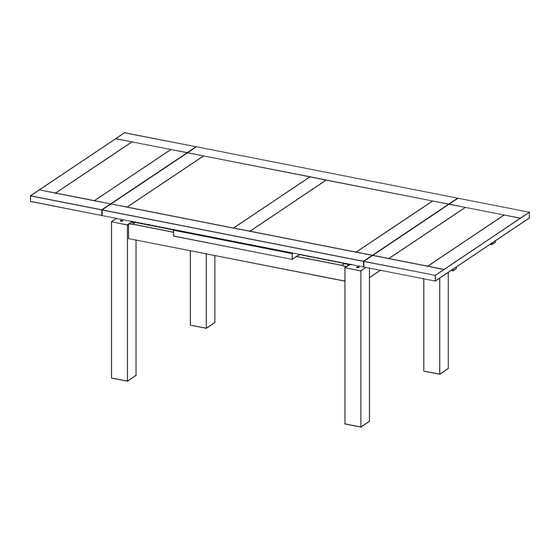

4-6 DINING EXTENSION TABLE Stock number: 5687-2 Thank you for purchasing this product. Please read the instructions carefully before use to ensure safe and satisfactory operation of this product. Pre-assembly preparation Please ensure instructions are read in full before attempting to assemble this product. - Page 3 2 x 4 Fittings and parts checklist Item Description Qty. Item Description Qty. Table top Cross dowel Lock washer Threaded bolt Hex nut Spanner Flat washer Page : 2 IW- 1 7- 5687-01-2-PD#23319...
- Page 4 Step By Step Assembly Instructions Step 1 1.1 : Lay all parts on a flat, stable, clean and soft surface. 1.2 : Insert 4x cross dowels (A) into the holes on top of legs (2) as shown.Ensure the horizontal marking on each fitting (A) is facing as shown. 1.3 : Screw 8x threaded bolts (B) into fitting (A) that are already concealed in legs (2) as shown.
- Page 5 Step By Step Assembly Instructions Step 2 2. 1 : Attach each leg (2) into place by inserting bolts (B) into the pre-drilled holes of each wooden corners as shown. 2.2 : Insert flat washers (C), lock washers (D) and hex nuts (E) onto threaded bolts (B) on leg (2) and in order as shown (C) followed by (D) followed by (E).
- Page 6 Step By Step Assembly Instructions Step 3 3. 1 :Extend the leaves under top by sliding the leaves all the way out as shown. 3.2 : Lift up and push ends of leaves inwards until no gap is visible. Ensure the cross dowels on support rail is seated in the slot of apron Note: To close table, reverse the procedure.
-
Page 7: Care And Maintenance
Care and Maintenance Wood Furniture Wood displays different grain patterns depending on which way they are cut - for example, the 'medullary ray' which can appear on oak furniture is a mark of good quality timber - these are just characteristics of the natural beauty of the wood.
