Summary of Contents for Dream Glass Air

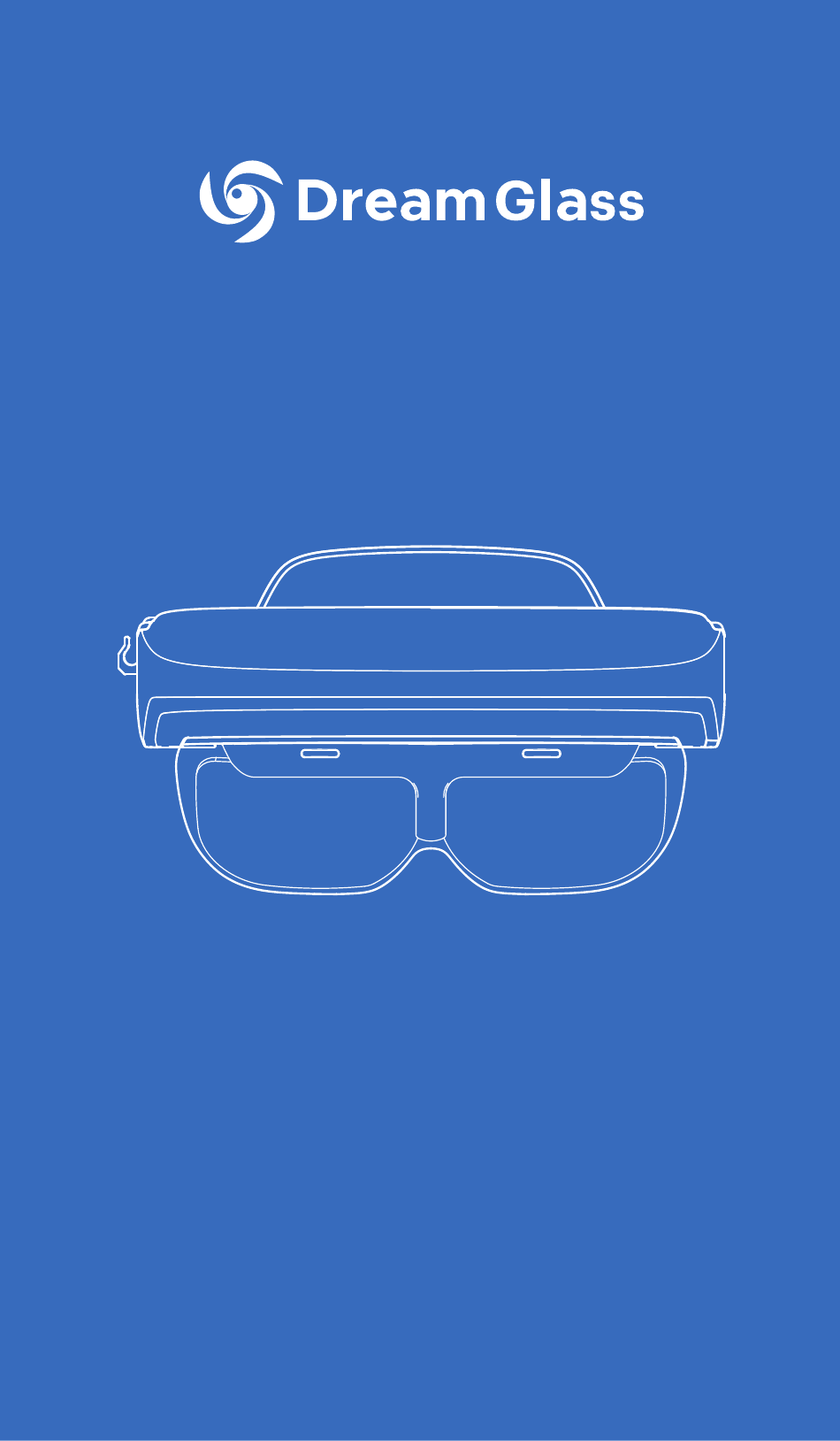

- Page 1 Dream Glass Air Quick Start Guide Version 1.0...
- Page 2 Thank you for choosing Dream Glass. To ensure that you can experience Dream Glass quickly and correctly, please read this manual carefully before use. The product pictures in this manual are all sketch graphics. Please be advised that the actual product might differ from the sketches.
-
Page 3: Table Of Contents
Contents 1 Inside the Box 2 Headset Components 3 Controller 4 Setting Up · How to Assemble and Wear · Adjusting Pupil Distance · How to Use Black Out Shade 5 Instructions · WiFi Setup · Bluetooth Settings · 3D Settings ·... -
Page 4: Inside The Box
1 Inside the Box Optical Lens Black Out Shade Headset Front Cushion Controller Lens Bag Cleaning Cloth Quick Start Guide Micro USB Cable Head Strap... -
Page 5: Headset Components
2 Headset Components Front Cushion Headphone Jack Black Out Shade Loudspeaker Optical Lens Loudspeaker Micro USB Cable... -
Page 6: Controller
3 Controller HDMI Battery Indicator Light ·Short Press:confirm and enter Power Button Direction Key ·Long Press 3 Seconds: ·Short Press:up/down power on/off /left/right ·Long Press 3 Seconds: turn on/off the cursor function Back ·Return to the previous ·Select 3D format screen Volume Home... -
Page 7: Setting Up
4 Setting Up · How to Assemble and Wear Please assemble and wear the headset by following the instructions below. 4.Press and hold 2.Assemble head strap the power button for 3 seconds to turn on headset 1.Assemble optical lens 3.Connect controller (Notice:Please keep the logo side of the cable up to connect) -
Page 8: Adjusting Pupil Distance
· Adjusting Pupil Distance（PD） Please adjust your Pupil Distance properly for the best visual effect when using the headset for the first time. You can adjust with your controller through the following steps: Press “Home”, go to “Pupil Distance”→ Press “Left”: decrease PD/ Press “Right’”: increase PD... -
Page 9: How To Use Black Out Shade
· How to Use Black Out Shade The black out shade is recommended if you want a more isolated/immersive viewing or use Dream Glass in a strong light environment. Please find the two buckles on the back of the black out shade and insert into the grooves of the... -
Page 10: Instructions
5 Instructions · WiFi Setup Follow the according steps to connect to your desired WiFi: Press “Home”, go to “Settings”→“WiFi”, then enter the password. · Bluetooth Settings If you want to connect to Bluetooth devices such as airpods or Bluetooth speakers, go to “Settings”-“Bluetooth” and select your device name from the showing list. -
Page 11: Settings
· 3D Settings Dream Glass supports different 3D formats which includes Up/Down 3D,Left/Right Square 3D,Left/Right Widescreen 3D.Press the “3D” button to select a suitable 3D format according to the video. · Browsing Local Contents If you are ready to expand your visual imagination with Dream Glass on your favorite local media contents,you can either open"My Apps”-"Puffin TV”or plug your USB... -
Page 12: Downloading Apps
· Downloading Apps Explore more with Dream Glass by downloading new applications you love. You can go to “My Apps”-“Aptoide TV”-“Categories” to download free apps such as YouTube, Netflix, Keep Yoga, Real Racing, Texas Poker and more. -
Page 13: Wireless Screencasting
You can read the screencasting guide on your headset by clicking "Casting” before you start. Screen Mirroring: Click the Screen Mirroring button of your smartphone (iPhone for example), select"HappyCast"from the device list to pair with Dream Glass. Screen Mirroring Screen Stop Mirroring Mirroring... - Page 14 Mobile APP Screencasting: Open the app and click the screencasting button as shown below(YouTube for example), select "HappyCast” from the device list to pair with Dream Glass. connect to a device iPhone Screen Mirroring AirPlay&Bluetooth devices HappyCast...
-
Page 15: Connecting To External Devices
“HDMI IN” and follow the instructions on the screen. (2)Connecting with game consoles If you are a fan of the Nintendo Switch, PS4, Xbox, etc., Dream Glass will be your best gaming companion ever. Please connect with an HDMI cable, go to “Home”- “HDMI IN” to connect. - Page 16 (3)Connecting with drones Please connect to your drone as shown in the following picture. After inserting your smartphone into the drone’s operating handle, please use the screen mirroring function as mentioned above. 4)Connecting with Bluetooth earphones/speakers Please make sure the Bluetooth function is turned on for your earphones or speakers.
-
Page 17: Charging Indication
6 Charging Indication As shown in the picture, insert the Micro USB cable to charge your controller. Charging Indicator 1.The number of indicator lights show your residual battery power when you turn on the controller. 2.The charging indicator lights flash when the controller is connected to the power supply. -
Page 18: Specifications
7 Specifications 90 ° Fits over eyeglasses, See-through Lens freeform surface lens, off-axis reflection Resolution 4K（3840*2160),1920*1080 per eye Display Pixel Per Inch Aspect ratio 16:9 60Hz 3D format Side by side, Over /Under Built-in speaker,3.5mm Jack/Bluetooth Audio Audio output connection Sensor Tracking 3DOF head tracking... - Page 19 Headset Only for Dream Glass use port WiFi 2.4G/5G dual-band, Hotspot Compute Bluetooth Compatible Smartphone，Tablet，PC，Laptop， connectivity device Switch，PS4，Xbox，Drone USB drive FAT32 format Software System Android 7.1.2 Battery 8000 mAh Lithium batteries Working Power About 5hours duration Charging 5V at 2A Max.
-
Page 20: Precautions / Warnings
8 Precautions / Warnings · Precautions - Please handle Dream Glass with care and store it properly to prevent damage (from falling etc.) - Do not yank, tie, tighten or bend the wires. - In order to ensure a long battery life, please use a standard power adapter. - Page 21 If so, please stop using it immediately. - Using Dream Glass for a long period of time may affect the eyesight of teenagers. Children under 12 years old should use it under parental supervision.
-
Page 22: Warranty Information
We accept returns of items that were purchased directly from DreamWorld provided that they are unused, in the original packaging (i.e. Dream Glass devices must be inside the original, unopened box and the seal on the box must not be tampered with or broken in any manner). - Page 23 · Warranty Policy DreamWorld offers a 12-month warranty on all the Dream Glasses we have sold. You can get your Dream Glass repaired within 12 months from purchase date after paying the maintenance fee. Please contact service@dreamworldvision.com.cn if you need repair services. This warranty is valid only if you...
- Page 24 Contact Us www.dreamworldvision.com @DreamGlass.Official @DreamGlassAR @dreamglassar...
