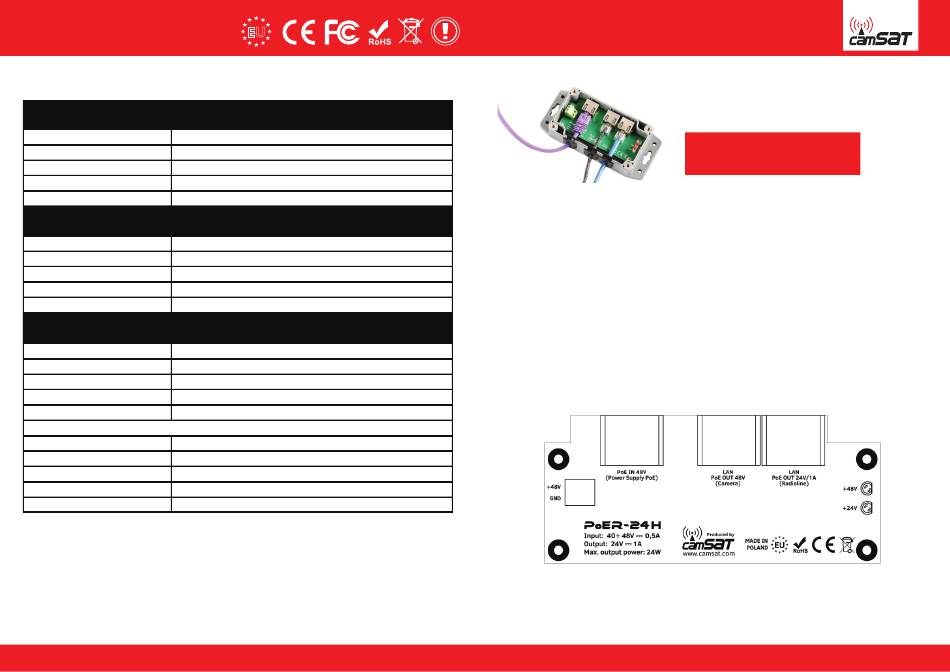

Camsat PoER-24h Quick Start

MADE IN MADE IN
POLAND POLAND
www.camsat.com
5. Parameters
Port: PoE IN 48V (power supply)
Power input 48V DC in standard PoE 802.3af
Maximum power 50W
LAN NO
Standard PoE 802.3af – power on pins +7,8; -4,5
Socket RJ45
Port: LAN/PoE OUT 48V (IP CAMERA)
Power input 48V DC (direct connection from power supply – loop)
Maximum power 30W
LAN YES
Standard PoE 802.3af PoE 802.3af – power on pins +7,8; -4,5
Socket RJ45
Port: LAN/PoE OUT 24V (IP RADIOLINE)
Power output 24V DC
Maximum power 15W
LAN YES
Standard PoE 802.3af passive PoE – power on pins +7,8; -4,5
Socket RJ45
Other:
Housing External IP65
Size 116x66x41mm
Mounting U-bolt to pole 35-55 mm
Surge protection YES
Certification CE and RoHS
4
Full user's manual available at www.camsat.com
EU EU
It is used to power IP cameras (48V) and the wireless system (24V) from a single PoE
power supply or PoE Switch in standard 802.3af (power on pins + 7.8 - 4.5). All power
connectors have a surge protection, so that devices connected to PoER are protected
from dangerous power surges.
Included:
Power converter PoER-24h x 1 pc.
U-bolts fastening the mast x 1 set.
Start Guide x 1 pc.
Declaration of conformity x 1 pc.
1. Installation
Full user's manual available at www.camsat.com
P ER-24h
o
QUICK START
ver. 1.0
Hermetyczny konwerter zasilania
ze standardu PoE48V na PoE24V
przeznaczony do kamer IP
1
