Summary of Contents for CUBO CB1-0-01

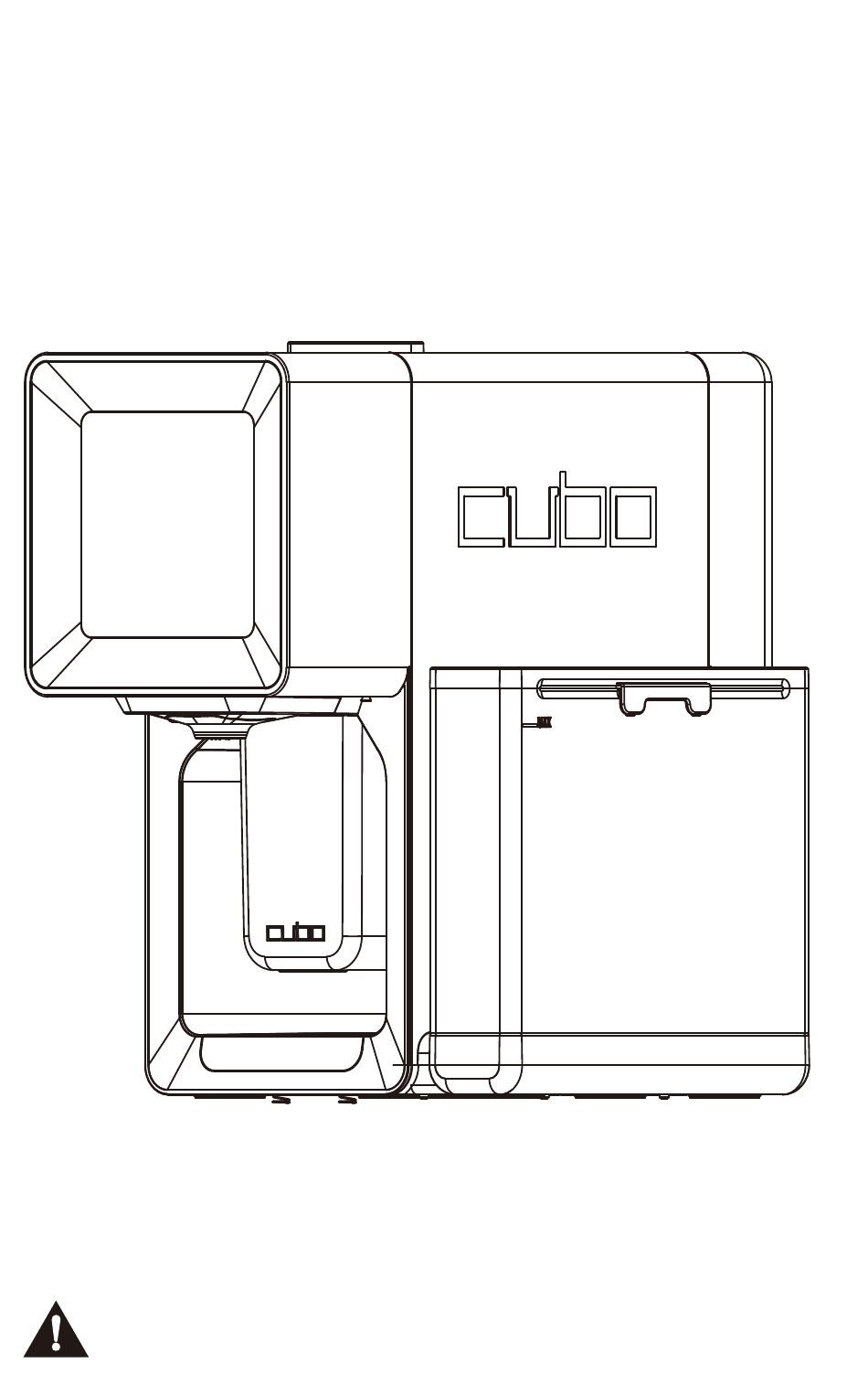

- Page 1 CUBO INSTRUCTION MANUAL Model：CB1-0-01 Read this instruction manual carefully before operating this machine!
- Page 3 IMPORTANT SAFEGUARDS When using electrical appliances, basic safety precautions should always be followed including the following: a ) Read all instructions. b ) To protect against risk of electrical shock do not put in water or other liquid. c ) This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they are closely supervised and instructed concerning use of the appliance by a person responsible for their safety.
- Page 4 This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: (1) This device may not cause interference. (2) This device must accept any interference, including interference that may cause undesired operation of the device.
-
Page 5: Table Of Contents
Content ................1 PRODUCT OVERVIEW .............. 1 OPERATING INSTRUCTIONS 1. Before use ..................1 2. First time cleaning ................ 2 3. Variations and adjustments ............3 4. Auto cleaning .................. 4 ................... 4 CUBOPODS 1. Storing CUBOPODS ..............4 2. Using CUBOPODS ................ 4 .................. - Page 6 ..................11 ERROR SCREENS 1. CUBOPOD errors ................11 2. Crushing errors ................11 3. Preparation error ................12 4. Power-on exception ..............12 5. System errors ................... 13 ................15 TROUBLESHOOTING ....... 15 TECHNICAL PARAMETERS AND COMPLIANCE ................16 LIMITED WARRANTY...
-
Page 7: Product Overview
>> PRODUCT OVERVIEW DIS PLAY WATER TANK LID （Add water without S POUT removing lid) TANK LEVEL MAGNET PODBIN WATER TANK DRIPTRAY AND DRIPGRID POWER ON SWITCH (behind) >> OPERATING INSTRUCTIONS 1. Before use Connect power cable. Fill the water tank up to the Make sure the water tank is MAX indication. -
Page 8: First Time Cleaning
Switch On. Close the lid making sure no CUBOPOD is inserted. 2. First time cleaning When you turn on the machine for the first time, after the welcome screen appears, you will be asked to watch a brief presentation. Touch WATCH NOW or MAYBE LATER to skip. -
Page 9: Variations And Adjustments
Open lid. Insert frozen CUBOPOD. Close lid. Extend tray and place a cup. After reading the CUBOPOD, machine will display the START screen: Touch START to begin preparation. 3. Variations and adjustments It is possible, for most drinks, to add a personal touch by changing the temperature and dilution. ▪... -
Page 10: Auto Cleaning
4. Auto cleaning: After every preparation, the machine will perform a self-cleaning cycle, ensuring it is always neat and ready for a new CUBO. You may enjoy your beverage while the machine takes care of itself. >> CUBOPODS 1. Storing CUBOPODS CUBOPODS must be kept in the freezer. -
Page 11: Order Cubopods
▪ Order CUBOPODS Displays a QR code linking to our website where you can order more CUBOPODS to enjoy. ORDER CUBOPODS BACK button takes you back to SETTINGS menu.. EXIT button takes you back to home screen. ▪ Cleaning options menu You may need (or want) to perform different cleaning procedures over time. -
Page 12: Deep Cleaning
If you chose BACK and the detergent cleaning has been automatically called after a preparation, you will see a warning screen: EXIT button takes you back to homescreen. CLEAN button takes to detergent cleaning screen. Skipping this step allows the user to save time and water to prepare the same drink more than once in a row. - Page 13 ▪ Empty podbin and put it in position ▪ Fill with white vinegar Touch YES to start descaling. Rinse the machine after the first part of the process.
-
Page 14: Functional Information
CUBOPOD is registered and cannot be reused. If the CUBOPOD is unreadable for any reason, the machine won’t start the preparation process. The machine only prepares CUBO™ compatible pods, called CUBOPODS. 2. Sleep and Low power The machine enters sleep mode after 90 seconds without use. The screen turns off and the side LEDs exhibit a breathing pattern. -
Page 15: Leds
▪ Water tank ▪ Podbin 4. LEDs The LEDs on the machine's side change color according to status. Whenever the lid is open, the led flashes red, indicating the need for attention. When a removable part is missing or not properly fitted or locked, the LEDs also flash red. -
Page 16: Podbin Warnings
▪ If the water tank temperature sensor reads more than 40°C (104°F), a warning will be displayed. You can ignore it if you are not going to prepare cold drinks (center button) or replace the water otherwise. Touch OK to dismiss the message. Note: After replacing the water it may take some time for the temperature sensor to normalize. -
Page 17: Spout Warning
3. Spout warning ▪ When the Spout is removed, a warning screen is displayed. Just put it back in place and latch it to normalize. >> ERROR SCREENS 1. CUBOPOD errors All information about the preparation of the drink is available on the CUBOPOD. In case of errors, they will be displayed on the screen. -
Page 18: Preparation Error
▪ Obstructed way If during crushing, the sensor detects an obstruction, the same error screen will be displayed, and the same procedure will apply. ▪ Jammed CUBOPOD When the CUBOPOD is crushed, it falls into the podbin. If it does not occur as expected, a jammed CUBOPOD error message will be displayed: If this happens, open the lid and manually push the empty CUBOPOD. -
Page 19: System Errors
5. System errors ▪ AC frequency failure Error indicating that machine did not detect the AC frequency, thus cannot operate. ▪ Temperature sensor failure Error indicating that one of the temperature sensors has failed, thus machine cannot operate. ▪ Crusher sensors failure Error indicating that one of the sensors has failed. - Page 20 ▪ Mixer failure Error indicating that mixer motor has failed. ▪ Heater failure Error indicating that heater has failed. ▪ Memory Access Failure Error indicating that machine has identified a memory access failure.
-
Page 21: Troubleshooting
TROUBLESHOOTING >> PODBIN REMOVED · Check if the podbin is properly in place. appears on the screen TANK NOT · Check if the water tank is correctly installed DETECTED appears in place. on the screen JAMMED CUBOPOD · CUBOPOD jammed, open the lid and manually appears on the push down the empty CUBOPOD, and then screen... -
Page 22: Limited Warranty
This Limited Warranty covers any defects in material or workmanship under home use only for one year from the date of purchase. During the Warranty Period, CUBO will repair or replace, at no charge, products or parts of a product that proves defective because of improper material or workman- ship, under normal use and maintenance. - Page 24 IMPORTER: CUBO BEVERAGES LLC 5805 Sepulveda Blvd, 5th Floor, Sherman Oaks, CA 91411 MADE in CHINA...
