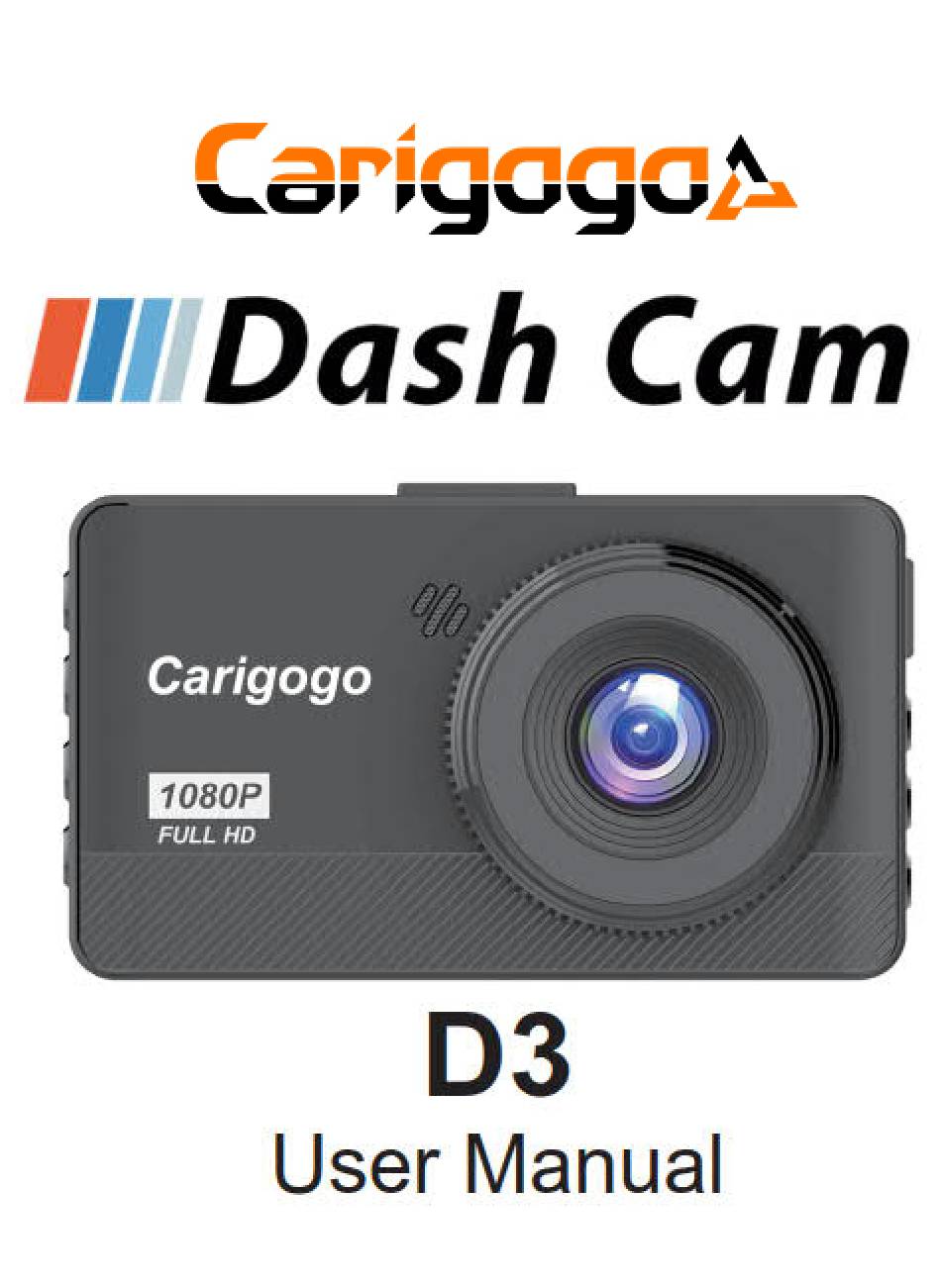

Summary of Contents for Carigogo D3
-
Page 2: Table Of Contents
Table of Contents Product Specifications ........1 Package Contents ..........2 Warranty & Customer Support ......2 Camera Overview ..........3 Device Layout .................3 Buttons ..................4 Status Icons ................5 Getting Started ...........6 Installation ................6 Charging the Battery ...............8 Inserting the Memory Card ............9 Removing the Memory Card ...........9 Formatting the Memory Card ..........10 Powering the Device Manually ..........10 Basic Operation ..............11... - Page 3 Date Stamp ................13 G-Sensor ................13 Parking Guard ..............14 Car Number ................14 System Settings ..........14 Screen Saver ................14 Auto Power Off ..............14 Frequency ................14 Beep Sound ................15 Language ................15 Date/Time ................15 Format ...................15 Default Setting ...............15 Version ..................15 Photo Settings ..........16 Caputer Mode ...............16 Resolution ................16 Continuous Shooting .............16...
- Page 4 Date Stamp ................18 Playback ............18 Camera Playback Mode ............19 Computer Playback ...............20 Product Care ............ 20 Questions & Answers ........21...
-
Page 5: Product Specifications
Product Specifications JL5601 Display 3.2 inch IPS LCD Audio I/O Internal high-sensitivity mic and speaker External Memory Class 10 or higher Micro SD card (up to 32GB) G-Sensor Low / Medium / High / Off Shutter Electronic Frequency 50HZ / 60HZ Exposure +3、+2、+1、+0.0、-1、-2、-3 Battery... -
Page 6: Package Contents
Package Contents The following items should be found in the package: ●1*Carigogo D3 Dashboard Camera ●1*Car charger ●1*3M adhesive mount ●1*Suction cup mount ●1*USB cable ●1*User manual ●1*Thank you card Warranty & Customer Support For questions, support, or warranty claims, please contact us at the address below. -
Page 7: Camera Overview

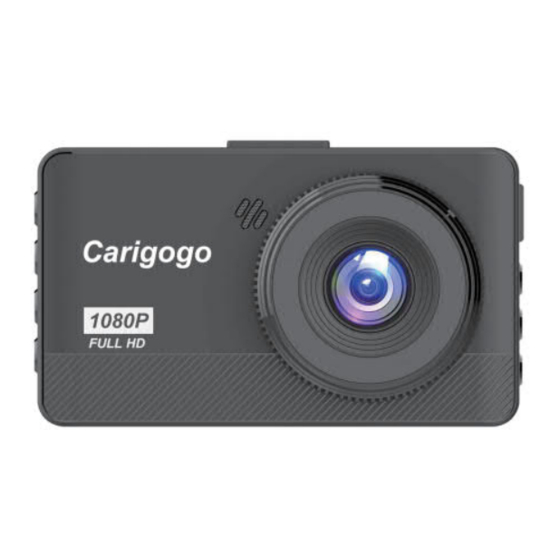

Camera Overview Device Layout 10 11 1. Micro SD Card Slot 7. Emergency Lock 2. UP 8. POWER 3. MENU 9. Mini-USB Port 4. DOWN 10. Bracket mounted hole 5. OK 11. Rear Camera Hole 6. MODE - 03 -... -
Page 8: Buttons
Buttons Button Function Hold to turn the device on or off manually Menus: Confirm a selection Video Mode: Start recording video Photo Mode: Take photo Playback Mode: Play/pause recording Cycle through menus or exit current menu Menus: Move selection up Playback Mode: Decrease or reverse playback speed / Cycle left through recordings Menus: Move selection down... -
Page 9: Status Icons
Status Icons Icon Meaning Video Resolution Blinking – Recording High Dynamic Range enabled Connected to power source Battery level (not connected to power source) Audio recording disabled Audio recording enabled Video Recording Mode Playback Mode Photo Mode Loop Recording Memory card detected G-Sensor White Balance Motion Detection... -
Page 10: Getting Started
Getting Started Installation 1.Attach the camera to the window mount Make sure that you mount the camera in a safe, appropriate location where it will not obstruct the driver’s view. Clean your windshield before applying the mount. 2.Mounting the rear camera Mount the rear camera as shown below, using rear camera extension cable, connect rear camera to the main unit. - Page 11 You will need to insert a memory card before you can begin recording. Do not insert or remove a memory card while the device is powered on. The Carigogo D3 supports Micro SD cards up to 32GB in size. 4.Connect the car charger to the car's 12V~24V DC outlet Run the cable down from your camera to the 12V~24V cigarette lighter port of your vehicle, as shown in the diagram.
-
Page 12: Charging The Battery
●If the device is not charging properly, take the device and the charger to an authorized Carigogo Service Center or contact Customer Care. Connecting the charger improperly may cause serious damage to the device. Any damage caused by misuse is not covered by the warranty. -
Page 13: Inserting The Memory Card
Inserting the Memory Card The D3 accepts Micro SD memory cards (class 10 or higher) with a maximum capacity of 32GB. Depending on the memory card manufacturer and type, some cards may not be compatible with your device. Using an incompatible card may damage the device or the memory card, or corrupt the data stored on it. -
Page 14: Formatting The Memory Card
Do not remove the memory card while the device is transferring or accessing information. Doing so can result in data loss or corruption, or damage to the memory card or device. Carigogo is not responsible for losses that result from the use of damaged memory cards, including the loss of data. -
Page 15: Basic Operation
Basic Operation Automatic recording The D3 will automatically power on and start recording once it begins receiving a charge, such as when you start your car. There will be a red dot blinking on the top left of the screen to indicate that it’s currently recording. -
Page 16: Dual Camera
-Dual Camera（Rear Camera Needed） Default setting: off Allows you to turn off/ or turn on the rear camera. -Loop Recording Default setting: 3 Minutes Video will be continually recorded in 1, 3 or 5 minutes segments. When the storage limit is reached on the memory card, new recordings will automatically overwrite oldest recordings. -
Page 17: Exposure
-Exposure Default setting: +0.0 Manually adjust the camera’s exposure value to brighten or darken recordings. Positive values brighten recordings, while negative value darken them. -Motion Detection Default setting: Off When the machine is in the standby state, the camera will automatically monitor whether there is any moving object in front. -
Page 18: Parking Guard
-Parking Guard Default setting: Off When this function is enabled, the camera will automatically enter parking mode whenever it is shut down. When parking mode is enabled and a collision is detected, the dash cam will turn on and begin recording a 20 second video clip, which it will then lock to prevent overwriting. -
Page 19: Beep Sound
-Beep Sound Default setting: On Enable or disable the device’s sound effects. -Language Default setting: English Set your preferred menu language. -Date/Time Set the time and date on your device. To enter the date/time: ●Up/ Down – Change current value ●OK –... -
Page 20: Photo Settings
Photo Settings These settings affect your still photo captures. In Photo Mode, Press MENU once to open the Still Menu. -Capture Mode Default setting: Single Shot There are 3 modes, single shot/ 2s Delay/ 5s Delay/10s Delay Single shot:capture the picture now 2s Delay:capture the picture two seconds later 5s Delay:capture the picture five seconds later 10s Delay:capture the picture ten seconds later... -
Page 21: White Balance
-White Balance Default setting: Auto Adjust the white balance for different lighting environments. When set to Auto, the camera will automatically determine the appropriate white balance for each shot. -Color Default setting: Normal There three selection ：Normal、Black and White、Sepia. Normal: Primary Color. Black and White: Monochrome Bitmap. -
Page 22: Date Stamp
-Date Stamp Default setting: Date/Time Apply a date and/or time stamp to captured images (works similarly to the Date Stamp function in the Video Menu). Playback Camera Playback Mode Default setting: Date/Time Apply a date and/or time stamp to captured images (works similarly to the Date Stamp function in the Video Menu). -
Page 23: Camera Playback Mode
To delete a selected recording: 1.In Playback Mode, use the buttons to navigate through your recordings. 2.Once you find the recording you want to delete, press to view options. 3.Press the button to scroll down to "Delete". 4.Press OK once to view options to "Delete Current" recording or "Delete All"... -
Page 24: Computer Playback
Computer Playback Recommended Media Players: QuickTime Media Player / VLC / Windows Media Player Using an SD card adapter Insert your Micro SD card into an SD card adapter, then insert the SD card adapter into your computer or card reader to access your card storage. Your videos will be stored under “\DCIMA\MOVA”. -
Page 25: Questions & Answers
Questions & Answers Q: How to keep the SD card recording continuously and avoid the memory card been full? A: Use a 32GB SD card, and set the loop-recording to 3 min and gravity sensing to Low. Q: Can this camera work when my car is parked, someone is approaching my car? A: This camera has a G sensor which means it starts recording when any little vibration happen ,like a crash.
