Summary of Contents for LCI Power Tongue Jack
- Page 1 Power Tongue Jack OEM INSTALLATION MANUAL...
-
Page 2: Table Of Contents

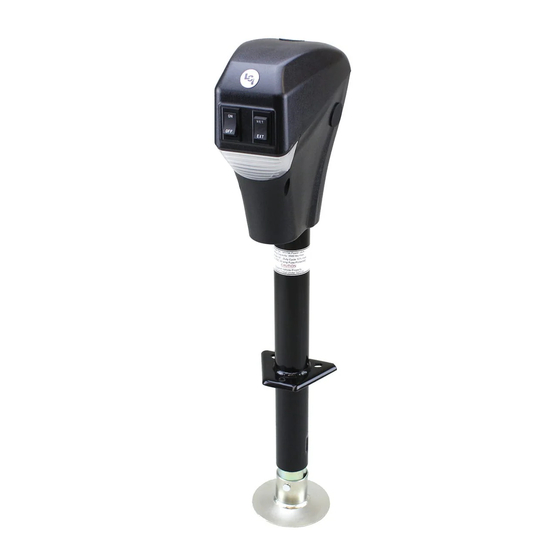

Notes Introduction The Power Tongue Jack is used with travel trailer A-frame applications. The textured casing helps protect from chips and cracks. Four LED lights provide excellent illumination while reducing power consumption. Helical cut gears reduce noise and improve operating efficiency. Enhanced rocker switch improves its durability. -
Page 3: Resources Required
Preparation Support the trailer according to OEM instructions. Remove the footpad from the Power Tongue Jack (if necessary). Remove the hairpin cotter pin (Fig.1D) and clevis pin (Fig. 1B) holding the footpad (Fig. 1C) to the jack leg (Fig. 1A). Set the pins and the footpad aside. -
Page 4: Installation
(Fig. 3B). Secure the Power Tongue Jack to the coupler plate with the three required 3/8" - 16 x 1” hex bolts (Fig. 4A). Connect the red power wire from the Power Tongue Jack housing to a grounded 12V power supply on the trailer. -
Page 5: Operation
Push RET (Fig. 6C) to retract the power tongue jack until the coupler properly mounts the hitch ball and the leg of the power tongue jack is fully retracted. Note: Make sure the leg of the power tongue jack (Fig. 5A) is fully retracted prior to moving the tow vehicle. Fig. 5 Fig. -
Page 6: Manual Operation
Remove the crank handle (Fig. 9). G. Replace the rubber plug (Fig. 8A). Note: Be sure the leg (Fig. 7A) of the power tongue jack is fully retracted prior to moving the tow vehicle. Page 6 Rev: 10.23.19... -
Page 7: Notes
Notes Page 7 Rev: 10.23.19 CCD-0001562... - Page 8 LCI representative has been provided. Any unauthorized use shall void any applicable warranty. The information contained in this manual is subject to change without notice and at the sole discretion of LCI. Revised editions are available for free download from lci1.com.
