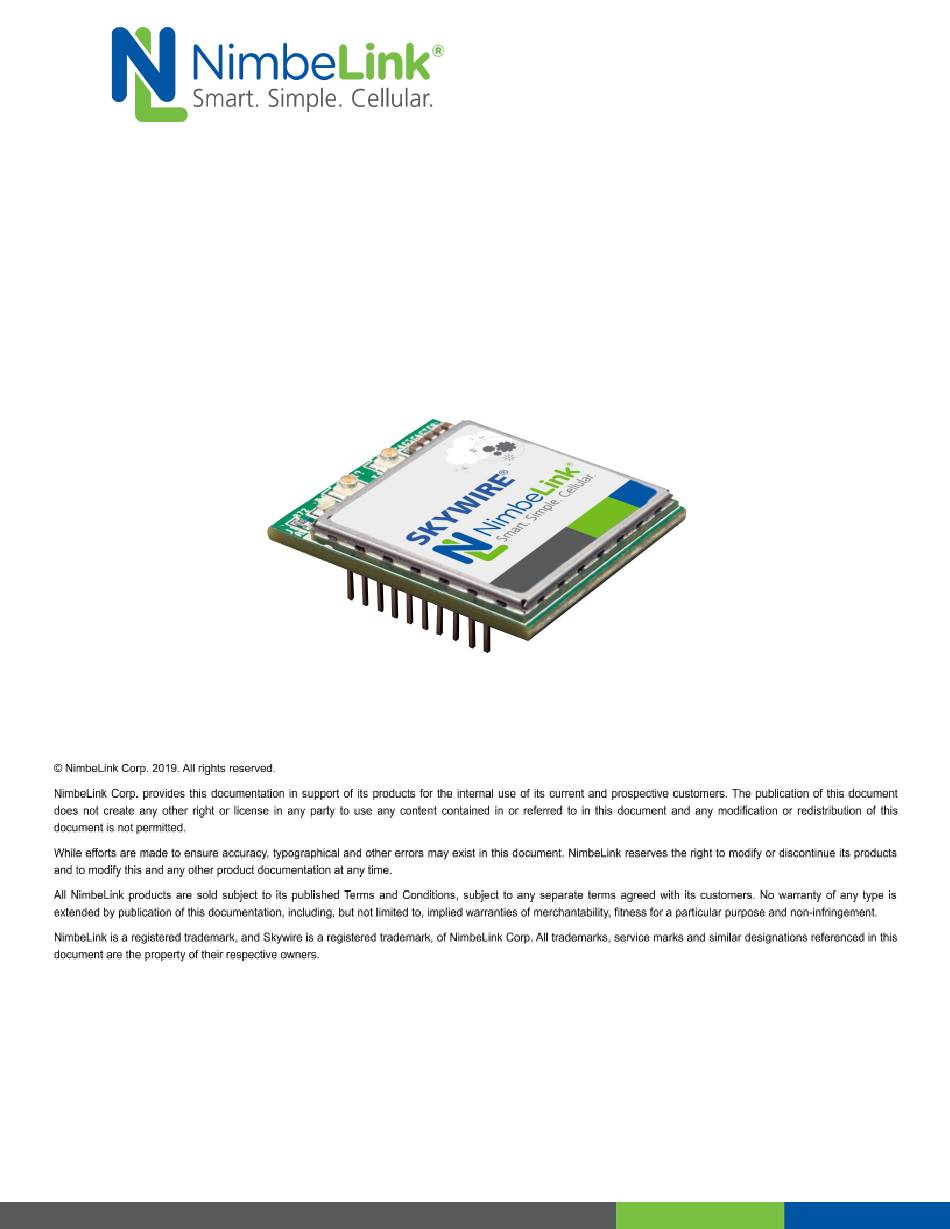

- Page 1 Firmware Update Procedure for NL-SW-LTE-QBG96 NimbeLink Corp Updated: August 2019 PN 1002195 REV 2 NimbeLink Corp All Rights Reserved...
- Page 2 Windows Firmware Update Procedure Install USB device drivers Plug Modem into Development kit Connect USB and Apply Power Recognize Modem Run Update Application Load Firmware Files Configure COMs Load Firmware Check New Firmware Version PN 1002195 REV 2 NimbeLink Corp All Rights Reserved...
- Page 3 1. Introduction As cellular carriers and chipset providers update the network and products that support it, new features get added that are desirable to enable in NimbeLink modems. This document provides instructions on how to update the NL-SW-LTE-QBG96 modem to newer firmware over the USB interface.
- Page 4 After turning the modem on, the modem takes 5-10 seconds before the USB ports are initialized and recognized by the operating system. Using device manager, note the COM port of the "Quectel USB DM Port" device for later. PN 1002195 REV 2 NimbeLink Corp All Rights Reserved...
- Page 5 Select any of the files in the folder and the tool will add the appropriate files. 2.7 Configure COMs Select the com port of the DM loader noted in section 2.3. Set the Baudrate to 921600. PN 1002195 REV 2 NimbeLink Corp All Rights Reserved...
- Page 6 AT command ports: AT+QGMR Response: BG96MAR02A07M1G_01.010.01.010 Note: The FW version that is output from this command will vary with the FW version that is used for the FW update. PN 1002195 REV 2 NimbeLink Corp All Rights Reserved...
