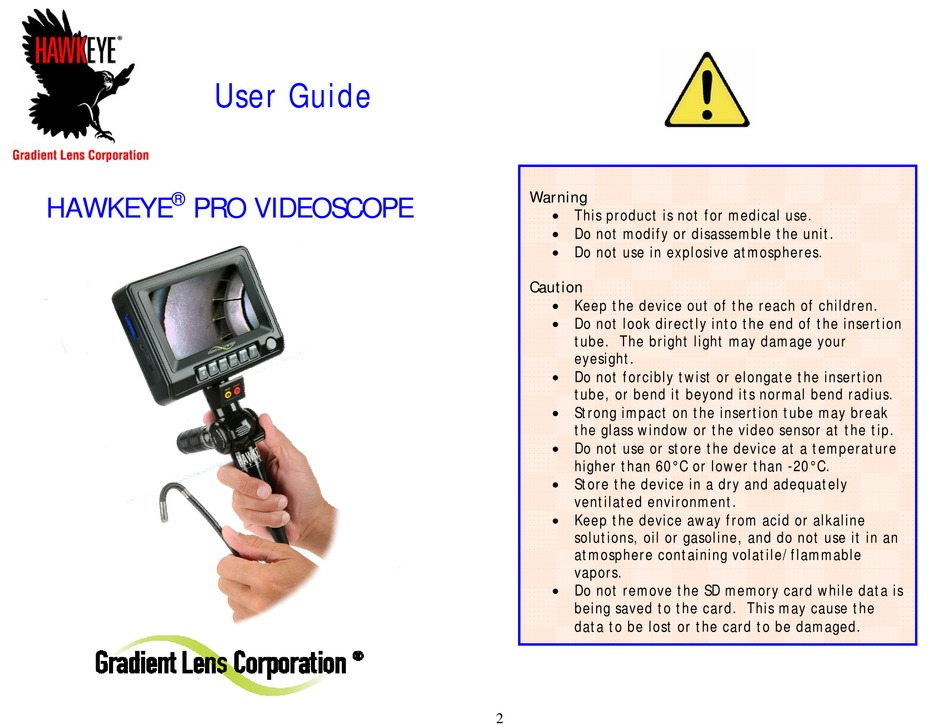

User Guide
®
HAWKEYE
PRO VIDEOSCOPE
Warning
 This product is not for medical use.
 Do not modify or disassemble the unit.
 Do not use in explosive atmospheres.
Caution
 Keep the device out of the reach of children.
 Do not look directly into the end of the insertion
tube. The bright light may damage your
eyesight.
 Do not forcibly twist or elongate the insertion
tube, or bend it beyond its normal bend radius.
 Strong impact on the insertion tube may break
the glass window or the video sensor at the tip.
 Do not use or store the device at a temperature
higher than 60°C or lower than -20°C.
 Store the device in a dry and adequately
ventilated environment.
 Keep the device away from acid or alkaline
solutions, oil or gasoline, and do not use it in an
atmosphere containing volatile/flammable
vapors.
 Do not remove the SD memory card while data is
being saved to the card. This may cause the
data to be lost or the card to be damaged.
2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Hawkeye Pro and is the answer not in the manual?

Questions and answers

Related Manuals for Gradient Lens Hawkeye Pro

Summary of Contents for Gradient Lens Hawkeye Pro

  • Page 1 User Guide ® Warning HAWKEYE PRO VIDEOSCOPE  This product is not for medical use.  Do not modify or disassemble the unit.  Do not use in explosive atmospheres. Caution  Keep the device out of the reach of children. ...
  • Page 2 – Description ® Hawkeye Pro Videoscope – Description ® Hawkeye Pro Videoscope ® The Hawkeye Pro Videoscope consists of a CMOS image sensor mounted in the tip of a flexible insertion tube. ® The Hawkeye Pro Videoscope is shipped in a protective case. The case has The insertion tube is attached to a control handle that allows remote control of ...
  • Page 3 – Warnings – Controls ® ® Hawkeye Pro Videoscope Hawkeye Pro Videoscope Controls Insertion Tube All models have a stainless steel monocoil at their center for resistance to accidental crushing, and have a tungsten outer braid to resist damage while sliding over harsh surfaces.
  • Page 4 – Connections – Setup ® ® Hawkeye Pro Videoscope Hawkeye Pro Videoscope Install 90-degree Prism Tip Input / Output Connections Charger Input USB Out If the 90° Prism Tip is needed: Composite Video Out Remove the Tip Cap. SD Memory Card Slot Notice the locating flat on the scope tip.
  • Page 5 – Setup – Setup ® ® Hawkeye Pro Videoscope Hawkeye Pro Videoscope Charge Main Battery Install Light Source Connect the power supply to the DC/IN jack as shown. Plug the power supply into an AC outlet and allow the PVM to charge its internal battery. A full Install the charged battery into the LED Light Source: Remove the tail cap.

  • Page 6: Operation

    – Operation – Operation ® ® Hawkeye Pro Videoscope Hawkeye Pro Videoscope Power On Articulating the Viewing Tip Turn the video display power ON by pressing and holding the power button for In the 4-way configuration, one thumb lever controls right/left movement and 3-5 seconds.
  • Page 7 – Operation ® Hawkeye Pro Videoscope – Operation ® Hawkeye Pro Videoscope Turn the light source on to maximum brightness. Display / Image Capture With the tip in the straight-ahead position, slowly begin to insert the scope into the cavity to be viewed. Watch the image to see where the scope is pointed as ...

  • Page 8: Normal Mode

    – Operation ® Hawkeye Pro Videoscope – Operation ® Hawkeye Pro Videoscope Image Review Mode Normal Mode View captured photos or video clips: Push the  or button to enter Image Review mode. You can scroll forward or back through the photos and videos Capture a Still Photo: In Normal mode, press the button on the control using the ...
  • Page 9 Each unit is optimized from the default to select year/month/day settings by Gradient Lens Corp. prior to shipping. These optimized settings or hour/minute/second appear on a label on the main unit should they need to be re-entered.
  • Page 10 – Operation – Operation ® ® Hawkeye Pro Videoscope Hawkeye Pro Videoscope Connecting to an Auxiliary display DIGITAL ZOOM Use the included AV cable to connect your auxiliary display to the jack on the Select this function by pressing the OK button. Use the  and  buttons to side of the video display .

  • Page 11: Troubleshooting

    – Operation ® Hawkeye Pro Videoscope – Troubleshooting ® Hawkeye Pro Videoscope The following troubleshooting hints should help you to solve some performance problems on site. If a problem is not solved using these Changing the Battery suggestions, call the Service Center at the number listed under the SERVICE section of the Warranty page and arrange to return your videoscope for evaluation and repair.

  • Page 12: Control Summary

    – Control Summary – Troubleshooting ® ® Hawkeye Pro Videoscope Hawkeye Pro Videoscope If Articulation Is Difficult…  Articulation locks may be fully or partially engaged. Release locks. Button Normal mode Image Review mode Menu mode  Articulation cable movement may be hindered by bends in the insertion tube.
  • Page 13 This warranty is also void if the instrument is not used in accordance with the manufacture’s recommendations or if required service is performed by anyone other than an Gradient Lens Corporation authorized agent. No other express or implied warranty is given. SERVICE Should service of the equipment be required, contact us for an RMA.
  • Page 14 InterTest, Inc. • 303 Route 94 • Columbia, NJ 07832 ® Office: 908-496-8008 • Fax: 908-496-8004 service@intertest.com • www.intertest.com...
