Material: 80 GSM Bond Paper or 50# Bond Paper White
Ink: Black
Resolution: 150 DPI or above
Printing method: Offset Printing
Binding: Perfect Bond
Folded size: 105 x 143 mm (H x W)
This drawing contains proprietary information and trade secrets of Furrion Property Holding Ltd.
METRIC
[INCH]
METRIC [INCH]
CRITICAL DIMENSION
CHECKING IS COMPULSORY
3
VOLUME
cm
MASS
grams
3
DENSITY
g/cm
GENERAL TOLERANCES
EXCEPT AS NOTED
0 TO 6mm = ±0.1
>6 TO 30mm = ±0.2
>30 TO 80mm = ±0.3
>80 TO 180mm = ±0.4
>180mm = ±0.5
ANGULAR = ± 3°
DO NOT PRINT THIS PAGE
Printing Notes:
Unauthorized use or copying is prohibited.
1.0
18-Sep.-19
REV.
DATE
MATERIAL:
FINISH SPEC:
SCALE:
DATE:
10-Dec-18
NAME:
IM for LTE Wi-Fi Router with Swappable SIM Card
NEW
MODIFICATIONS
COMPOSITE-NO
DRAWN BY:
APPROVED BY:
Lucas Sun
Program: Indesign CC
Black
Jonathan
NAME
Furrion Property Holding Ltd.
Karl Fung
PART NO.
XX
ECN NO.
SHEET 1 OF 1
REVISION:
1.0
IM-FAV00072
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Furrion Access FAN17B87
Summary of Contents for Furrion Access FAN17B87
- Page 1 Program: Indesign CC Black DO NOT PRINT THIS PAGE Printing Notes: Material: 80 GSM Bond Paper or 50# Bond Paper White Ink: Black Resolution: 150 DPI or above Printing method: Offset Printing Binding: Perfect Bond Folded size: 105 x 143 mm (H x W) This drawing contains proprietary information and trade secrets of Furrion Property Holding Ltd.
- Page 2 LTE Wi-Fi Router with Swappable SIM Card Instruction Manual Manuel d’instructions Manual de instrucciones Model/Modèle/Modelo: FAN17B87 FAN17B8F...
-
Page 3: Welcome
Welcome Thank you for purchasing the Furrion Wi-Fi Router with Swappable SIM Card. Before ® operating your new product, please read these instructions carefully. This will ensure safe use and reduce the risk of injury. This instruction manual contains information for installation, maintenance of the product and safe use. -
Page 4: Table Of Contents
Contents Welcome ....................2 About your Product ................4 Product Features ...........................4 FCC Statements ............................4 IC Statement ............................5 Product Overview ..................6 Installation ....................8 What’s in the box ........................... 8 Slide in the Router ..........................8 Preparation .....................9 Material Preparation ..........................9 Furrion Network Service Activation ..................... -
Page 5: About Your Product

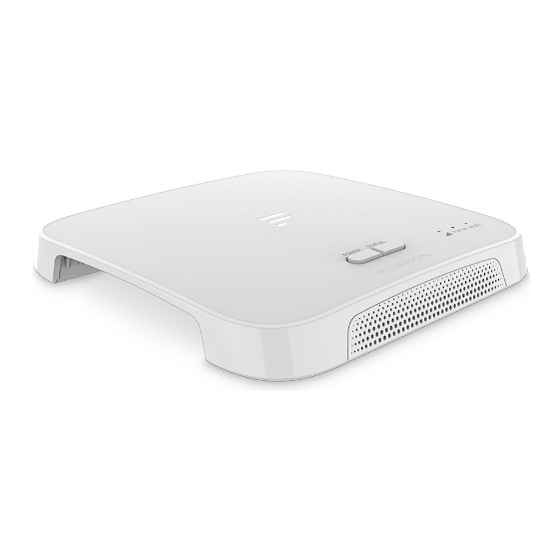

About your Product Furrion LTE Wi-Fi Router supports LTE B2/B4/B5/B12/B13/B14/B66/B71 and WCDMA B2/B4/B5. Popular operating systems such as Windows, Linux and Mac, and smart devices like iOS and Android are compatible with this product. This device is ready for the Furrion network. Once you have installed the device, turn on the power and after few minutes the router should attach itself to the LTE network as default. -
Page 6: Ic Statement
About your Product Reorient or relocate the receiving antenna. − − Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the − receiver is connected. Consult the dealer or an experienced radio/TV technician for help. −... -
Page 7: Product Overview
Product Overview Status Indicator WPS/Status Button Network Status LED (Green) Power Button Reset Button POWER STATUS TOP UP RESET Reset Button Button/ Description Indicator ● In OFF mode, press and hold the POWER button for about 4 seconds to turn on the device. The Status Indicator LED will be illuminated and then Power Button off. - Page 8 Product Overview Button/ Description Indicator ● Press and hold the RESET button with a pointed object for 10 seconds to reset the device to factory default settings. All the LEDs blink 3 times, Reset Button indicating you have reset the device successfully. ●...
-
Page 9: Installation
Installation What’s in the box 1. Pull to remove the cover attached over the existing Ceiling Mount Bracket. (Fig. 1) Make sure you have the following items included in the packaging. If any item is damaged or missing, contact your dealer. -
Page 10: Preparation
Preparation ● Method 3 - Through the Furrion This device is ready for the Furrion network. Simply slide the device into the Access for activation. ceiling mount bracket. For first time use, NOTE: You are required to have you are required to activate the Furrion access to the Internet via an external Network Service online, which allows Wi-Fi network. - Page 11 Preparation 2. Take out the original SIM card. Place another activated SIM card on the tray, with the notch end correctly oriented and the metal contacts facing down. 3. Put down and lock the SIM card holder securely.
-
Page 12: Internet Access Through The Router
Internet Access through the Router Power on Your Router Connect to the Router Wirelessly Turn on the power connected to the 1. Scan for wireless networks on your Ceiling Mount Bracket. mobile device or laptop. It may take The LTE Wi-Fi Router will be turned on a few minutes for the network to automatically upon receiving power. -
Page 13: Connect To Your Router For Wi-Fi Configuration
Router Configuration Connect to Your Router for Log in to the Configuration Wi-Fi Configuration Interface 4. Scan for wireless networks on your The default IP of this LTE Wi-Fi Router is 192.168.0.1 with subnet 255.255.255.0. mobile device or laptop. It may take a few minutes for the network to Make sure the smart device or appear. -
Page 14: Quick Setup Of Your Router
Router Configuration Quick Setup of your Router After selection of Ext Wifi, you can select an available AP (Access Point) for Internet access. Change Administration Password Click SCAN to scan available APs and the following window will appear: After successful login, the following screen will appear and you will be required to setup a new password for the “admin”... -
Page 15: Advance Setting
Router Configuration Change Wireless Settings You should now be able to access the Internet after the LTE Wi-Fi Router A new window will pop up, where you can configuration is finished. change wireless settings. Network Name (SSID): Rename the SSID of the LTE Wi-Fi Router. For example, rename it to My Furrion Router. -
Page 16: Maintenance
Maintenance Power off or Reboot Your To reboot: LTE Wi-Fi Router ● Log in to the configuration interface (see “Login” section about how to log in), then click the button. Note: Be careful the LTE Wi-Fi Router might be hot after operating for a long time. -
Page 17: Specifications
Specifications Technical Specifiations OPERATING CONDITIONS POWER RATING 9~16 Vdc CURRENT CONSUMPTION Typical: 12Vdc @ 500mA, Max. 1A OPERATION TEMPERATURE -20°C to 55°C / -4°F to 131°F RF SPECIFICATIONS 2462MHz/2422MHz to 2452MHz 2412MHz to 5240MHz/5190MHz to 5230MHz/ 5210MHz FREQUENCY RANGE 5180MHz to 5825MHz/5755MHz to 5795MHz/ 5775MHz 5475MHz to SUPPORTED SYSTEM... - Page 18 Furrion Innovation Center & Institute of Technology • 52567 Independence Ct., Elkhart, IN 46514, USA • Toll free:1-888-354-5792 • Email: support@furrion.com ©2007-2019 Furrion Ltd. Furrion and the Furrion logo are trademarks licensed for use by ® Furrion Ltd. and registered in the U.S. and other countries. ©2007-2019 Furrion Ltd.
