3-Seat Cushioned
Swing
Model No. 088-1519-4
Instruction Manual
Toll-free: 1-877-483-6759
IMPORTANT: Please read and understand this manual before any assembly. Before
beginning assembly of product, make sure all parts are present. Compare parts
with packaging contents list. If any part is missing, or if you have any questions,
call our Toll-free number at 1-877-483-6759.
R
MD
Advertisement
Table of Contents
Related Manuals for for Living 088-1519-4
Summary of Contents for for Living 088-1519-4

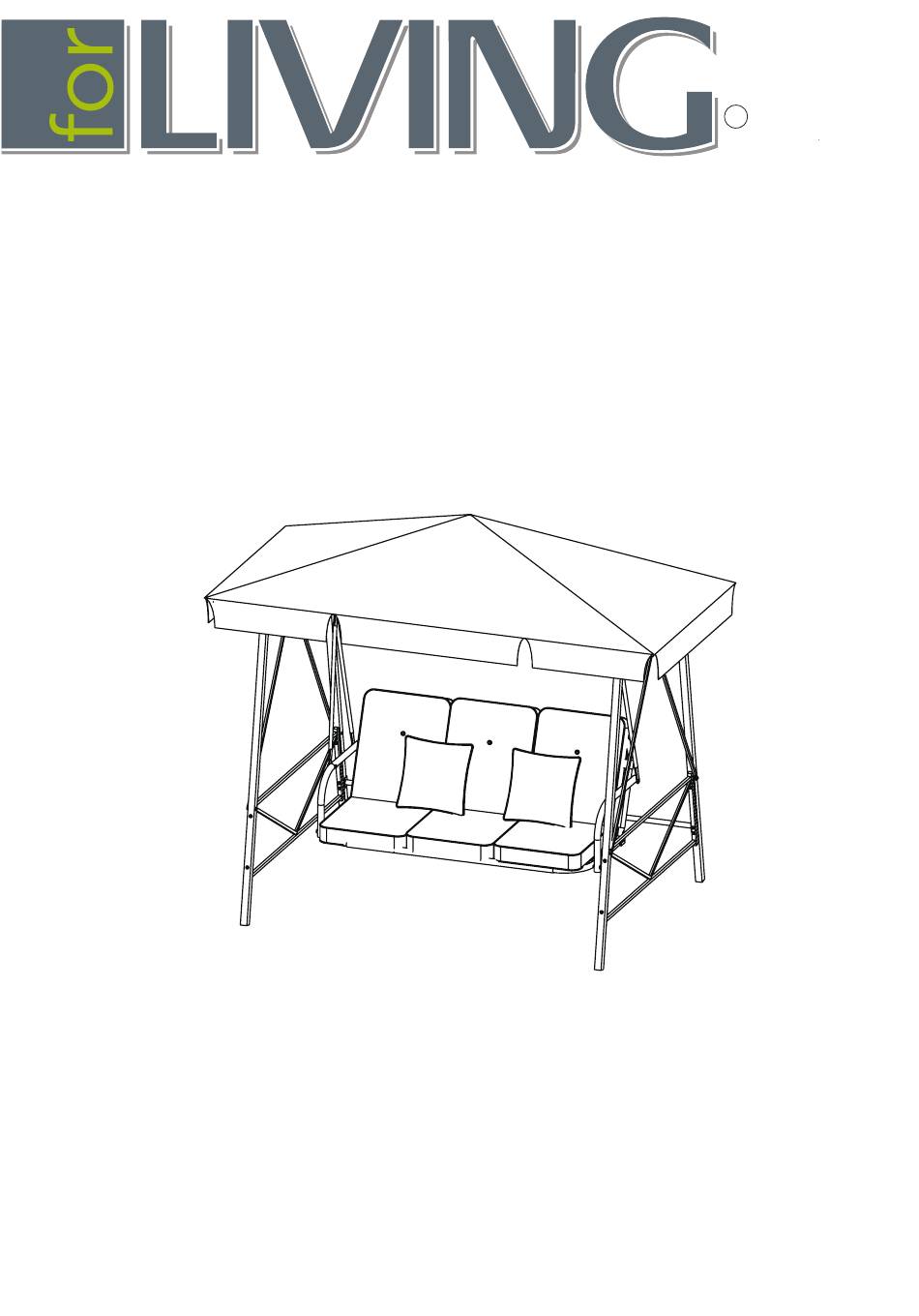

- Page 1 3-Seat Cushioned Swing Model No. 088-1519-4 Instruction Manual Toll-free: 1-877-483-6759 IMPORTANT: Please read and understand this manual before any assembly. Before beginning assembly of product, make sure all parts are present. Compare parts with packaging contents list. If any part is missing, or if you have any questions,...
- Page 2 Table of Contents Important Safety Instructions Parts List Assembly 4-10 Cleaning and Maintenance Warranty Warning! To reduce the risk of serious injury, read the following safety instructions before assembling and using the product. Caution! Always keep children under close supervision while they are using or around this product. Never leave children unattended.
- Page 3 Model No. 088-1519-4 Front leg 1 - 1 Canopy 17 - 1 Front leg 2 - 1 Cushion 18 - 3 Rear leg 3 - 1 Pillow 19 - 2 Rear leg 4 - 1 Bolt M6 x 36L - 2...
- Page 4 Caution! • Do not place the product underneath electrical lines. • Keep children away during assembly. This product contains small parts which can be swallowed by children. • Keep fingers away from the places where they can be pinched or trapped. •...
- Page 5 Model No. 088-1519-4 Step 1 Requires: 1, 2, 3, 4, 5 Attach the Top crossbar 5 to the Front leg 1 & 2 and Rear leg 3 & 4. Step 2 Requires: 6, C, P,J Attach the Short top crossbar 6 to the assembled top crossbar (1, 2 & 5) & (3, 4 & 5).
- Page 6 Step 3 Requires: 7, B, H, J Attach the Connection bar 7 to the Front leg 1 and Rear leg 3. Do not tighten completely. Repeat procedure for the other side. Not shown at actual size Step 4 Requires: 8, A, B, H, J (4a) (4b) Attach the support bar 8 to leg 1 &...
- Page 7 Model No. 088-1519-4 Step 5 Requires: 9, D, H, J (5a) Attach the Side panel 9 to leg 1 & 3 . Do not tighten completely. Repeat procedure for the other side. x 12 Not shown at actual size (5a) (5b) Don’t use any bolt...
- Page 8 Step 7 Requires: 10, 11 Attach the rear leg crossbar 10 & 11 to the assembled frame. Tighten all bolts and nuts. Not shown at actual size Step 8 Requires: 12, 13, 14, G, I, K, B, F, H, J (8a) (8b) Attach the Seat and back 13 to Hanging...
- Page 9 Model No. 088-1519-4 Step 9 Requires: L Hang the whole seat to short top crossbar. Make sure all bolts and nuts are securely tightened. Not shown at actual size Step 10 Requires: 15, 16, 17 Insert the Canopy frame bar 15 to the Canopy frame top centre piece 16, then...
- Page 10 Step 11 Requires: 1, 15, 17 Insert the whole Canopy 15 to the whole Frame leg 1. Fasten the leg 1, 2, 3 & 4 with lashing. Step 12 Requires: 18,19 Put the cushion and pillow on the seat and back.
- Page 11 40.41 kg 88.9 lbs This For Living product carries a one (1) year warranty against defects in workmanship and materials. Trileaf Distribution agrees to replace the defective product free of charge within the stated warranty period, when returned by the original purchaser with proof of purchase.
