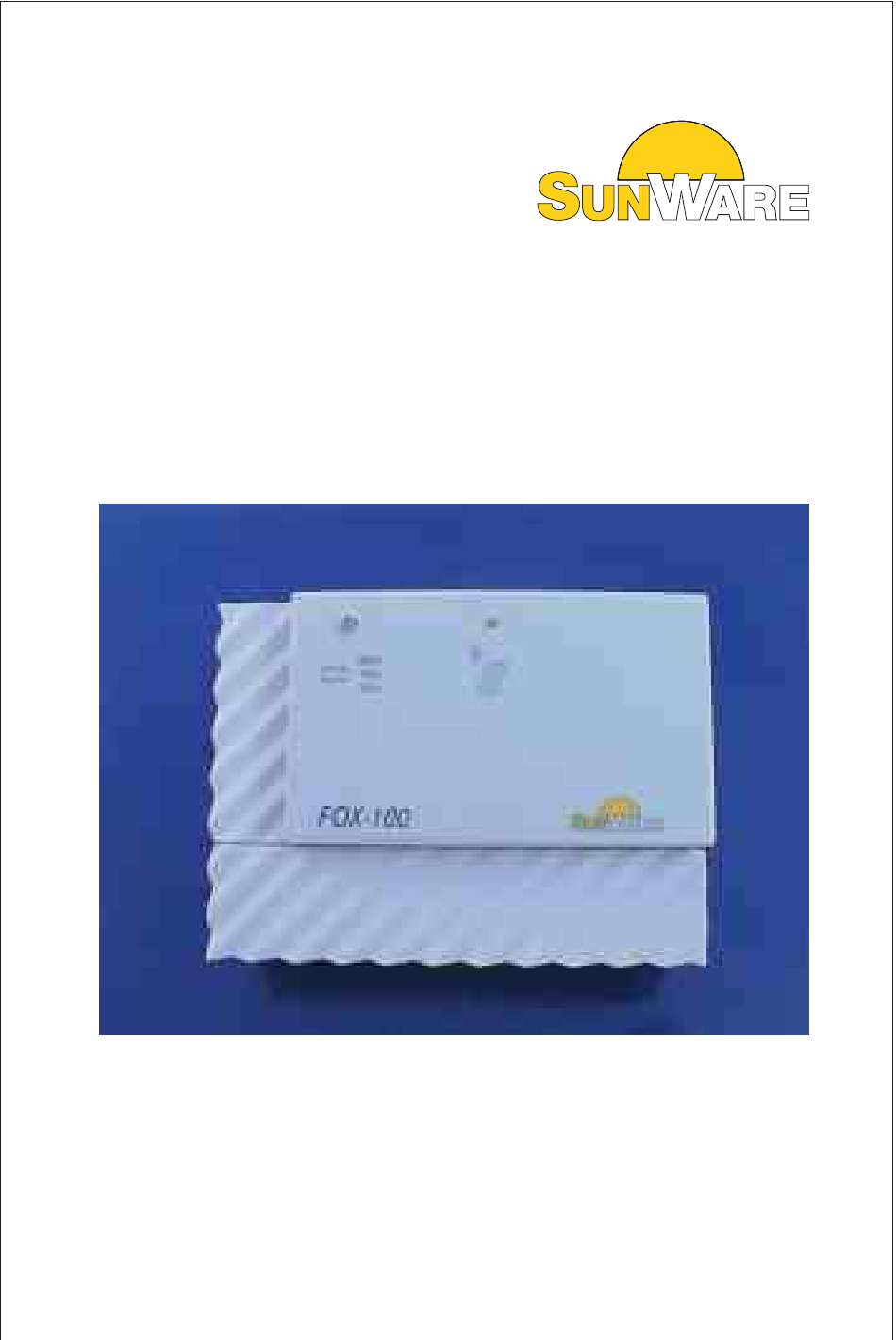

- Page 1 Installation- Manual Solar Charge Regulator FOX-100...
- Page 2 FOX-100 frontside view LED Battery charge condition - green = 71% - 100% fully charged - yellow = 31% - 70% normal - red = 0 % - 30 % discharged LED charge current flow Connector battery Fuse holder (10 A)
- Page 3 FOX-100 backside view Mounting holes drill 2,5 mm x 10 mm Mounting holes drill 2,0 mm x 10 mm...
- Page 4 Installation mark with drilling schedule first drive 2 screws place regulator onto screws drive two bottom screws...
- Page 5 Installation 1. Remove fuse 2. connect battery cable...
- Page 6 Installation 3. connect solar panel 4. reinsert fuse...
- Page 7 Current flow indicator - by day LED is ON - by night LED is OFF...
- Page 8 FOX-100 - Solar Charge Regulator Technical Data: I Solar: max 8 amp. U System: 12 V Fuse: 10 A Voltage drop: 0 V to 0,6 V Conditions of use: -25° - 50°C not thawing Features: - reverse current protection - 3 phase charging curve...
