Summary of Contents for TRE i SYSTEMS EG-3

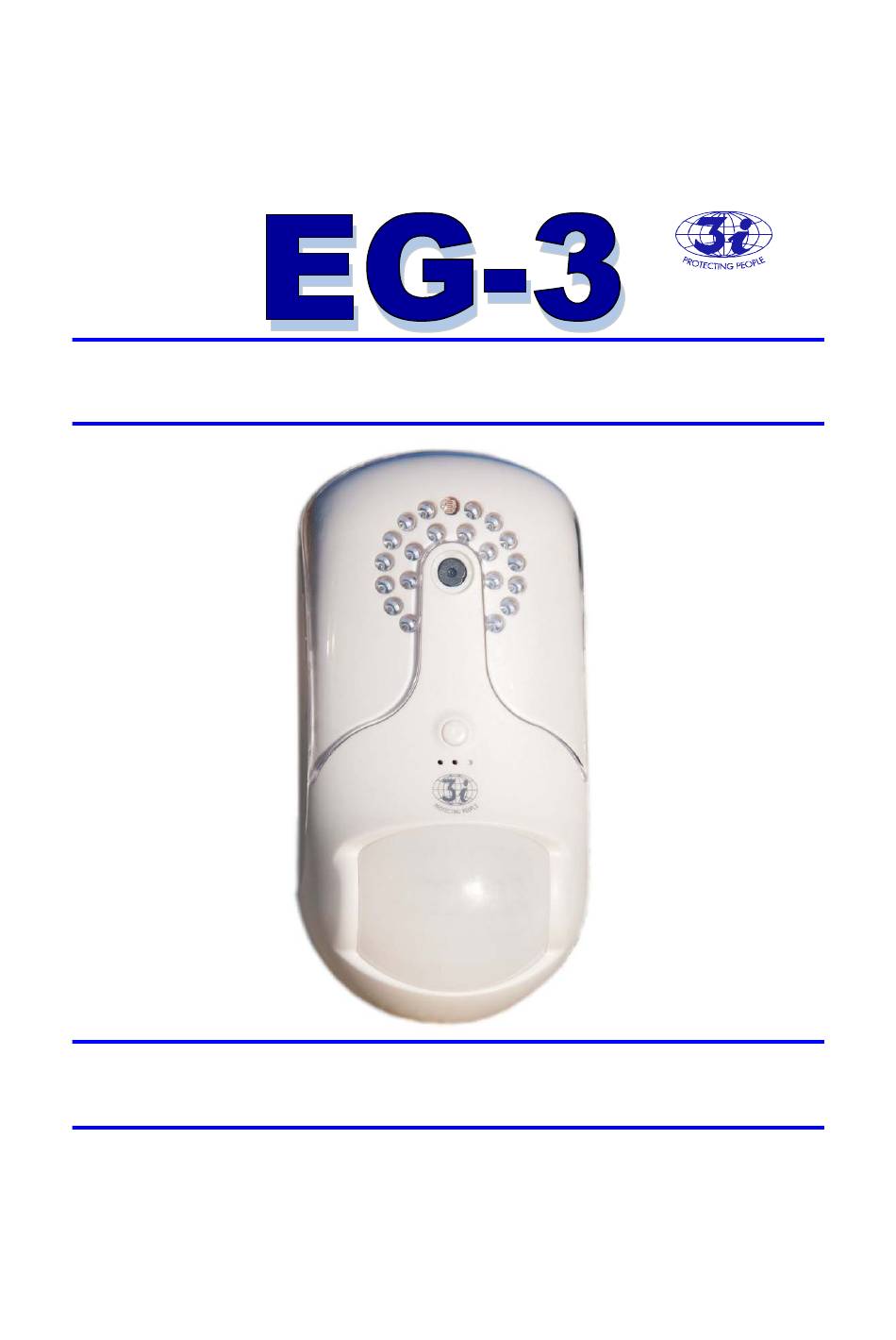

  • Page 1 ® SISTEMA DI SICUREZZA MULTIFUNZIONE SISTEMA DI SICUREZZA MULTIFUNZIONE SISTEMA DI SICUREZZA MULTIFUNZIONE SISTEMA DI SICUREZZA MULTIFUNZIONE con TRASMISSIONE SMS, MMS e E con TRASMISSIONE SMS, MMS e E con TRASMISSIONE SMS, MMS e E con TRASMISSIONE SMS, MMS e E- - - - mail mail mail mail...

  • Page 2: Table Of Contents

    3.3 Wireless indoor or outdoor siren installation in mode EG-3HW ....25 EG-3WL (WIRELESS) 4.0 Installation of EG-3 as EG-3WL with a wireless “Pegaso” panel ....26 4.1 Activation and memorizing EG-3 to function in mode EG-3WL ....27 EG-3SL (STAND-ALONE) 5.0 Installation of EG-3 to function in mode EG-3SL ........

  • Page 3: Introduction

    1.0 Description The EG-3 is a product that may be installed in four different modes of operation and based on how it has been installed, will protect your home, office, store, factory etc. by capturing images of the events taking place and through its built-in GPRS 2G module, SMS telephone dialler and CMOS camera can transmit 3 SMS messages and 5 images to 4 memorized telephone numbers and to 2 E-mail addresses.

  • Page 4: Getting To Know The Product

    Micro SD card compartment Arming LED GPRS / GSM Field LED SIM card Battery holder connection 69 mm On / Off switch Reset and sensor self learning button Blue LED indicator Micro USB Hardwire Dip-switch connector terminal EG-3 Instruction manual Page 21...

  • Page 5: Installation

    • The surface to which it is fixed must be sturdy and not have any form of vibration. • In the immediate area in which the EG-3 is installed there must not be sources of heat or air conditioning that can create air movement.

  • Page 6: Start-Up Procedure

    LED will become first Red (in presence of GSM field) and if there is presence of GPRS field, it will then become Green. • The LED (2) will light up green when the EG-3 is armed, if the unit is disarmed with the keychain transmitter it will go “OFF”.

  • Page 7: Eg-3Hw (Hardwire)

    3.1 Hardwire connections to terminal block In all modes the EG-3 must receive is power from the furnished power supply. Other forms of power may cause damage to the unit and as a consequence all warrantee benefits will be lost.

  • Page 8: Activation And Memorizing Peg-1 Transmitter On The Eg-3Hw

    2. Press the PEG-1 transmitter to generate an R.F. transmission. The blue LED will go “off”. This indicates that the EG-3 has received the signal and that the code has been memorized. 3. You may memorize a maximum 20 PEG-1 transmitters. So if you wish to memorize another Keychain transmitter, repeat the procedures 1 and 2 above.

  • Page 9: Eg-3Wl (Wireless)

    EG-3WL (WIRELESS) 4.0 Installation of EG-3 as EG-3WL with a wireless “Pegaso” panel In this mode, the EG-3 will receive all commands from the “Pegaso” control panel installed and will act similar to a slave sensor to this panel. You must...

  • Page 10: Activation And Memorizing Eg-3 To Function In Mode Eg-3Wl

    The blue LED will light and after about 7 seconds the LED will go “OFF”. After this the button may be released. The memory has been cancelled. THE EG-3 IN ALL MODES is factory supplied without anything memorized on-board. Once finished with the initialization and memorization procedures, you may position the battery and close the battery and terminal block compartments.

  • Page 11: Eg-3Sl (Stand-Alone)

    25 seconds, it will be fully armed. To disarm you must press the same button and 2 beeps are emitted. This indicates that the EG-3 has been disarmed. Once the EG-3SL is armed, the on-board PIR becomes active and if triggered, an SMS alarm message will be sent to the 4 memorized telephone numbers and an R.F.

  • Page 12: Activation And Memorizing The "Pegaso" Codes In The Eg-3Sl

    1. Two flashes indicate that the PEG-3 or PEG-1 has been already memorized. 2. Three flashes indicate that the EG-3SL memory is full. The EG-3 is factory supplies without anything memorized on-board TO CANCEL THE SELF LEARNING MEMORY If the memory is full , it may be cancelled by: Pressing the RESET/LEARN button and keep it pressed constantly.

  • Page 13: Eg-3Slm (Stand-Alone Master)

    ENGLISH EG-3SLM (STAND-ALONE MASTER) 6.0 installation of EG-3 to function in mode EG-3SLM In the mode EG-3SLM, the EG-3 will function in the same way as a MODALITA’ SLM wireless “PEGASO” control panel. To activate the EG-3SLM in this mode, set the dip switch as shown in fig. 4 to the right.

  • Page 14: How To Memorize All Slave Sensors When In Mode Eg-3Slm

    1. Two flashes will indicate that the PEG-3, PEG-1 OR SENSOR has been already memorized. 2. Three flashes will indicate that the EG-3SLM memory is full. The EG-3 is factory supplied without anything memorized on-board. TO CANCEL THE SELF LEARNING MEMORY If you wish to cancel the memory, you must: Press the RESET/LEARN button and keep it pressed constantly.

  • Page 15: Programming & Commands

    BURGLARY, one for FIRE and one for PANIC or MEDICAL DESTRESS alarm, 4 Telephone num- bers and 2 E-mail addresses. To achieve this the EG-3 must be powered up and from a normal cellular telephone, you must send SMS command messages as indicated below.

  • Page 16: Real Time Control Of Eg-3 Through Sms Messages

    How to personalize the 64 character SMS messages sent by the EG-3: Burglary alarm mess.: command format: EG-3 Password + DM01 + SMS text of max 64 characters + # Fire alarm mess.: command format: EG-3 Password + DM02 + SMS text of max 64 characters + # Panic or Medical distress alarm mess.: command format: EG-3 Password+DM03+ SMS text of...

  • Page 17: Procedure To Totally Cancel The Eg-3 Memory

    SMS command. On the EG-3 terminal block the terminal 6 with the terminal 7 from open will become closed for 5 se- cond and then it will return to its original status. The terminals 6 & 8 from normally closed will become normally open for 5 seconds and then retrun to its original status.

  • Page 18: Normal Functioning Sequence In The 4 Installation Modes

    SMS with the alarm trigger message. When the EG-3 is disarmed, if a sensor has a low battery the EG-3 will inform the end user with an SMS “Low Battery” message. No alarm trigger will take place.

  • Page 19: How To Enter Into Eg-3 Manteinance Mode

    GSM and GPRS signal is weak or where there are R.F. disturbances that can effect negatively the good operation of the system. INTERFERENCE For the same reason above, do not install the EG-3 in an area in which the unit can disturb other equipment which employs R.F. transmission. PRIVACY Be sure that the EG-3 does not violate the locale privacy laws in the country in which it is installed.
  • Page 20 Per qualsiasi problema rivolgersi al più vicino rivenditore autorizzato o centro For any problems contact TRE i SYSTEMS TRE i SYSTEMS ® ® ® ® TRE i SYSTEMS TRE i SYSTEMS...
