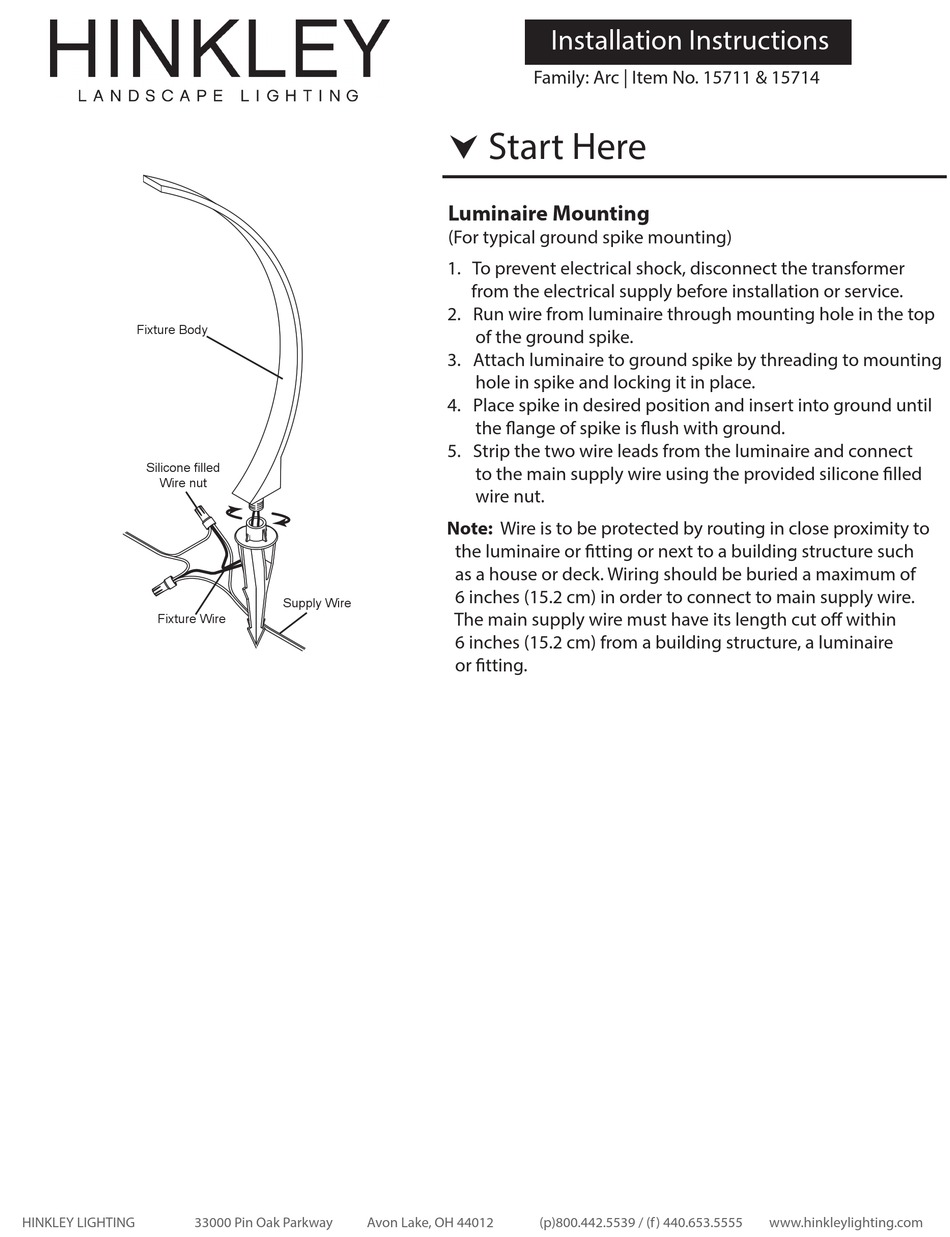

Hinkley Arc Series Installation Instructions

Fixture Body
Silicone filled
Wire nut
Fixture Wire
HINKLEY LIGHTING 33000 Pin Oak Parkway
 Start Here
Luminaire Mounting
(For typical ground spike mounting)
1. To prevent electrical shock, disconnect the transformer
2. Run wire from luminaire through mounting hole in the top
3. Attach luminaire to ground spike by threading to mounting
4. Place spike in desired position and insert into ground until
5. Strip the two wire leads from the luminaire and connect
Note: Wire is to be protected by routing in close proximity to
the luminaire or tting or next to a building structure such
as a house or deck. Wiring should be buried a maximum of
6 inches (15.2 cm) in order to connect to main supply wire.
Supply Wire
The main supply wire must have its length cut o within
6 inches (15.2 cm) from a building structure, a luminaire
or tting.
Avon Lake, OH 44012
Installation Instructions
Family: Arc | Item No. 15711 & 15714
from the electrical supply before installation or service.
of the ground spike.
hole in spike and locking it in place.
the ange of spike is ush with ground.
to the main supply wire using the provided silicone lled
wire nut.
(p)800.442.5539 / (f ) 440.653.5555 www.hinkleylighting.com
