Aqua Medic Refill System 2.0 Operation Manual

The level control Refill System 2.0 is an automatic top up unit for a cabinet filter.
1. Safety instructions
- Disconnect power when working on the unit.
- Protect the controller, power supply and connections from moisture.
- Not suitable as a toy for children.

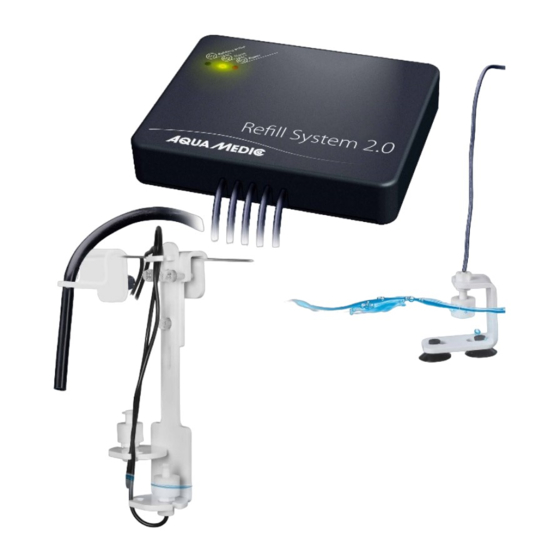

2. Delivery
1. Power supply AC/DC, Input 100 - 240 V AC 50/60 Hz, Output 12 V DC 1.0 A
2. Control unit
3. Float switch N1
4. Float switch N2
5. Refill pump Input DC 3.5 - 12 V DC / 0.5 – 5.0 W H
6. Float switch N3
7. 2 m refill hose 8/12
3. Features
- Permanent monitoring of the water level in the aquarium with float switches incl. delay circuit.
- Automatic refilling of evaporated aquarium water.
- Adjustable water level with overflow protection in the filter tank (safety shutdown in case of a defective level
sensor).
- Dry-running protection of the refill pump – optical and acoustic alarm.
- Easy installation and maintenance due to plug connections on all cables.
- 12 V low voltage
4. Installation
Important! Please turn on the power supply only when all the cables and sensors are connected,
otherwise the control unit may be damaged. Unplug the power from the unit in case plugs are to be
pulled.
The Aqua Medic Refill System 2.0 is designed as a refill unit for cabinet filter systems. An attachment of the
sensors N1 and N2 including the supplied holder to the aquarium is only possible with a sufficiently high border
of the aquarium (about 13 cm).

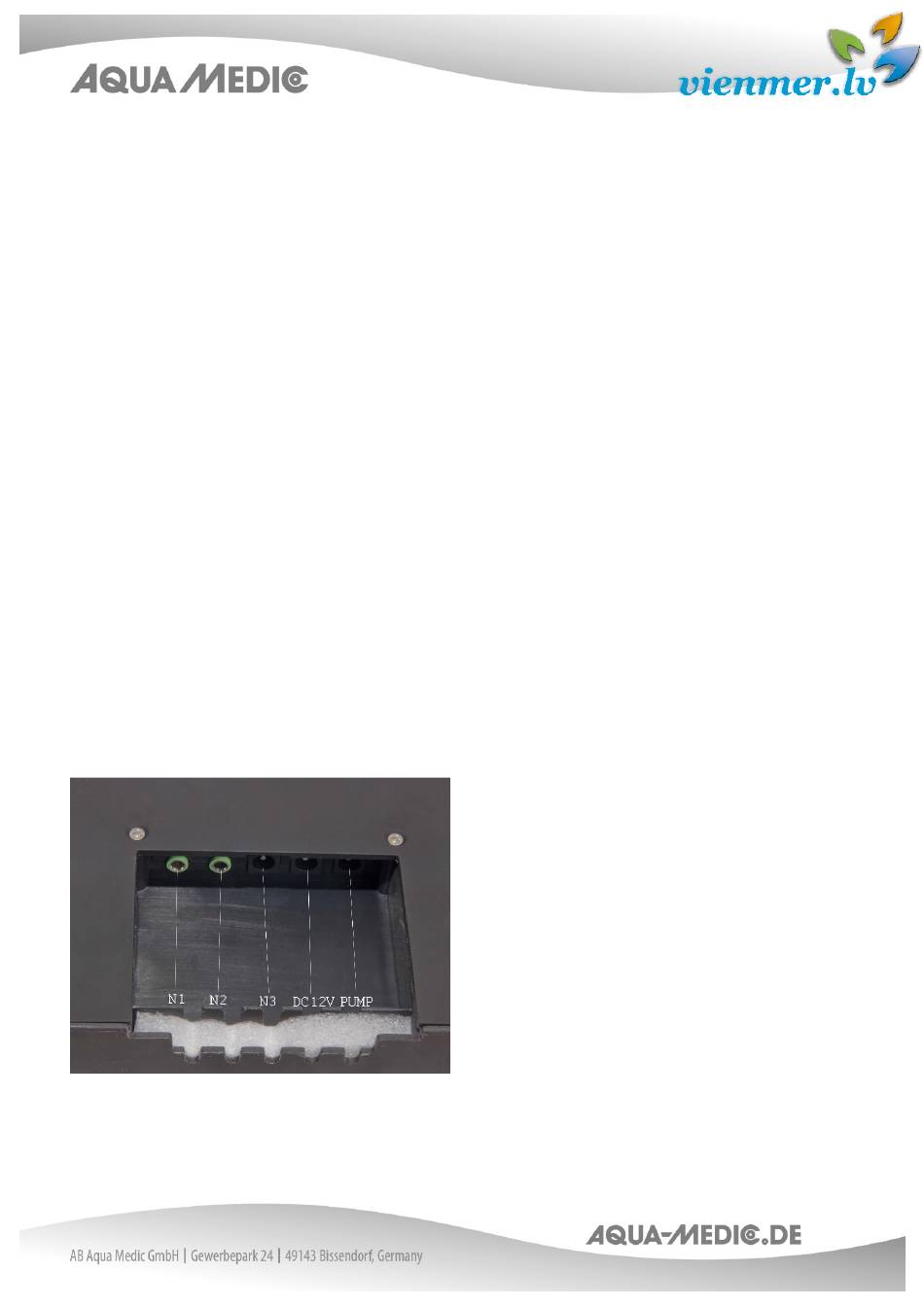

Pict. 1: Socket of the control unit
LED display (no pict.):
D1 = Refilling is active
D2 = Alarm in case of low water level in the refill unit (+ beep)
D3 = Power
6
Operation Manual ENG
= 220 cm Q
max
= 350 l/h
max
