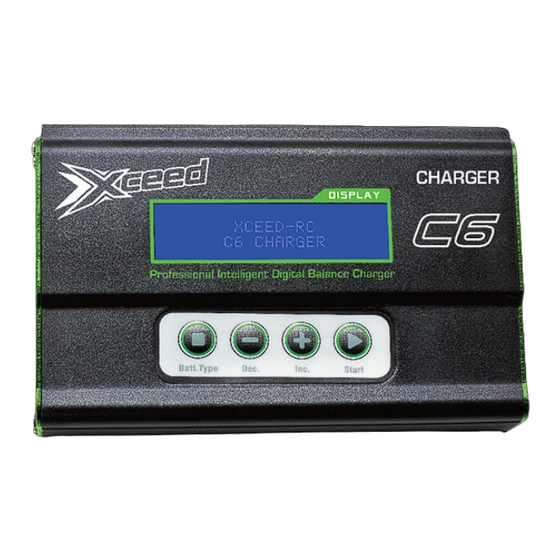

Summary of Contents for Xceed C6

  • Page 2: Specifications

    INTRODUCTION INTRODUCTION Thank you for purchasing the C6 Intelligent Balance Charger by XCEED-RC. This product is a rapid charger with a high performance microprocessor and specialized operating software. Please read this operating manual completely before using this product. Specifications Operating voltage range: DC11.0~18.0 Volt...
  • Page 3 Balancing individual cells battery discharging During the process of discharging, C6 can monitor and balance each cell of the battery individually. If the charger detects that the voltage of any single cell is abnormal, an error message will be displayed and the process will be ended automatically.
  • Page 4 SPECIAL FEATURES Maximum safety Delta-peak sensitivity: The automatic charge termination is based on the principle of the delta- peak voltage detection. When the battery's voltage exceeds the threshold, the process will be terminated automatically. Automatic charging current limit You can set up the upper limit of the charging current when charging NiCd or NiMH batteries. This is useful for NiMH batteries of low impedance and capacity when using the 'AUTO' charging Capacity limit The charging capacity is calculated as the charging current multiplied by time.
  • Page 5 SPECIAL FEATURES Cyclic charging/discharging One to five cycles and continuous process of charge<>discharge is for balancing and stimulate the battery's activity.
  • Page 6 Output charge lead Input power cable 4mm banana plug 11-18V DC Balance lead sockets LCD screen JST-XH ports .Scroll through the Main Menu .Resume or start charge processes .Stop any charge processes .Confirm an action Alter values See the status of individual cells in balance charge mode...
  • Page 7 LITHIUM POLYMER BALANCE CHARGE PROGRAM CONNECTION DIAGRAM LITHIUM POLYMER BALANCE CHARGE PROGRAM CONNECTION DIAGRAM This diagram shows the correct way to connect your battery to the C6charger while charging in the balance charge program mode only. WARNING: Failure to connect as shown in this diagram will damage this charger. The main battery leads must be connected along with the balance lead connector as shown before charging your battery ..
  • Page 8 WARNING AND SAFETY NOTES WARNING AND SAFETY NOTES These warnings and safety notes are particularly important.Please follow the instructions for maximum safety; otherwise the charger and the battery can be damagedor at worst it can cause a fire. Never leave the charger unattended when it is connected to its power supply. If any malfunction is found, TERMINATE THE PROCESS AT ONCE and refer to the operation manual.
  • Page 9 WARNING AND SAFETY NOTES NiCd/NiMH Voltage level: 1.2V/cell Allowable fast charge current: 1C-2C (depends on the performance of cell) Discharge voltage cut off level: 0.85V/cell (NiCd), 1.0V/cell(NiMH) Li-ion Voltage level: 3.6V/cell Max. charge voltage: 4.1V/cell Allowable fast charge current: 1C or less Discharge voltage cut off level: 2.5V/cell or higher LiPo Voltage level: 3.7V/cell...
  • Page 10 WARNING AND SAFETY NOTES To avoid short circuit between the charge lead always connect the charge cable to the charger first, then connect the battery. Reverse the sequence when disconnecting. Do not connect more than one battery pack to this charger at any one time. Never attempt to charge or discharge the following types of batteries.
  • Page 11 WARNING AND SAFETY NOTES Please bear in mind the following points before commencing charging: Did you select the appropriate program suitable for the type of battery that you are charging? Did you set up adequate current for charging or discharging? Have you checked the battery voltage? Lithium battery packs can be wired in parallel and in series, i.e.
  • Page 12 WARNING AND SAFETY NOTES Always refer to the recommendations by battery manufacturer for charging current and time. This is strictly important for lithium batteries. Attention should be paid to the connection of Lithium battery especially. Do not attempt to disassemble batteries. Please get highlighted that Lithium battery packs can be wired in parallel and in series.
  • Page 13 WARNING AND SAFETY NOTES Program flow chart Start Start Program Select LiXX Enter Enter LiXX Charge LiXX Balance Lithium Battery Fast Charge Bat. Type Stop LiXX LiXX Discharge Storage Start Enter Program Select NiMH Charge NiMH NiMH NiMH Battery Discharge Cycle +Aut/Man- Bat.
  • Page 14 WARNING AND SAFETY NOTES This charger will use for default settings when it is connected to a 12V power supply. The screen displays the information on the following pages in sequence and the user can change the parameter on each screen. If you need to alter the parameter value in the program, press 'Start/Enter' key to make it blink then change the value with '+' or '-' key.
  • Page 15 CHK Time 10 min CHK Time 10 min The C6 detects the cell count of lithium battery automatically at the beginning of charge or discharge process. A battery might not be detected if it has been over-discharged. You can set the time limit to verify the cell count by the processor.
  • Page 16 WARNING AND SAFETY NOTES There is a 3-pin port on the left of the charger used as USB interface or temperature sensor port. When the screen displays temperature, you can display the surface temperature of the battery by using the optional temperature probe. You can set the maximum temperature of the battery while charging.

  • Page 17: Safe Timer Calculation

    Safe timer Calculation Safe timer Calculation When charging NiCd or NiMH batteries, divide the capacity by current, then divide the result by 11.9. Use this as the number of minutes for safety timer setting. If the charger stops at this time, threshold about 140% of the capacity will have been fed into the battery.

  • Page 18: Charging Of Lithium Battery

    Charging of Lithium battery Charging of Lithium battery The left side of the first line shows the type of battery you have NiMH Sensitivity LiPo BALANCE selected.The value on the left of the second line is the current user D.Peak Default 2.0A 11.1V(3S) s e l e c t e d .

  • Page 19: Individual Cell Connection Diagram (Pin-Assignment Of 8-Pin)

    Charging of Lithium battery The value on the left side of the second lines sets the charge NiCd Sensitivity LiPo FAST CHG current. The value on the right side of the second lines sets the D.Peak Default 2.0A 11.1V(3S) battery pack's voltage. After setting current and voltage, press STAR/ENTER for more than 3 seconds to start the process.

  • Page 20: Fast Charging Of Lithium Battery

    Fast charging of Lithium battery Fast charging of Lithium battery When the charger reaches the end of charging, the charging current will drop. A specific CV process will be reduced to end the charging LiPo FAST CHG process earlier. In fact, the charging current will drop to 1/5 when 2.0A 11.1V(3S) the charging process comes to 1/10.

  • Page 21: Discharging Of Lithium Battery

    Storage control of Lithium battery At this screen, you can set up the current and voltage of the battery LiPo STORAGE pack. Charging and discharging will adjust the voltage level of the 2.0A 11.1V(3S) battery to the storage level. Batt type Start ’>...

  • Page 22: Voltage Balancing And Monito Ring In The Dis Charge Process

    Voltage balancing and monito ring in the dis charge process Voltage balancing and monito ring in the dis charge process The processor monitors voltage of each cell in the battery pack during storage and discharging. To use this feature, plug each battery to the charger individually. If voltage of any cell is abnormal, it will terminate the process automatically.

  • Page 23: Discharge Of Nicd/Nimh Battery

    Discharge of NiCd/NiMH battery The screen shows the real-time status. Press the 'BATT TYPE/STOP' key to charging. The charger will sound to indicate the end of the charge process. Discharge of NiCd/NiMH battery The value of the left side of the lower line shows the set current and NIMH DISCHARGE the value of the right shows final voltage.

  • Page 24: Charge/Discharge And Discharge/Charge Cycle Of Nicd/Nimh Battery

    Charge/discharge and discharge/charge cycle of NiCd/NiMH battery Charge/discharge and discharge/charge cycle of NiCd/NiMH battery You can select the sequence on the left and the number of cycles on NiCd Sensitivity NIMH CYCLE the right. You can balance, refresh and break-in the battery with this D.Peak Default DCHG>CHG...

  • Page 25: Charging Of The Pb Battery

    Charging of the Pb battery Charging of the Pb battery Set up the charge current on the left and nominal voltage on the right. Pb CHARGE Range of current is 0.1-5.0A, the voltage should match the battery being 4.0A 12.0V(6P) charged.

  • Page 26: Data Storage Program

    Data storage program Data storage program For your convenience, C6 has a data storage and load program. It can store five different battery programs to suit the different specifications for your batteries. You can recall program data when charging or discharging without setting up the program again. Press the 'START/ENTER' key to make it blink, then press the '+' or '-' keys to set up the parameter.

  • Page 27: Load Data Program

    Load data program Load data program This program loads the data stored in the 'save data' program. Press the 'START/ENTER' key to make the field blink and press '+' or '-' for more than three seconds to load the data. PROGRAM SELECT LOAD DATA Start...
  • Page 28 Various information in the program End Voltag The end voltage is displayed when the program is finished. 12.6v(3s) Capacity Cut-Off 5000mAh Safety Timer 200min The 3-pin connector is configured as a USB port. USB/Temp Select Enabled The external temperature is displayed when the temperature probe is Ext.Temp used.

  • Page 29: Warning And Error Information

    Warning and error information Warning and error information C6 incorporates a variety of functions for the systems to verify processes and the state of the electronics. In case of an error, the screen will display the cause of error and emit an audible sound.
  • Page 30 Warning and error information The voltage is higher than what is set. Please check the number of cells BATTERY CHECK in the battery pack. HIGH VOLTAGE Voltage in one cell of the battery pack is too low, please check the BATTERY VOLTAGE voltage of each cell.

  • Page 31: Warranty And Service

    The warranty period will valid for one year after the date of purchase for a new C6 charger. You need to include a copy of the original purchase receipt.
