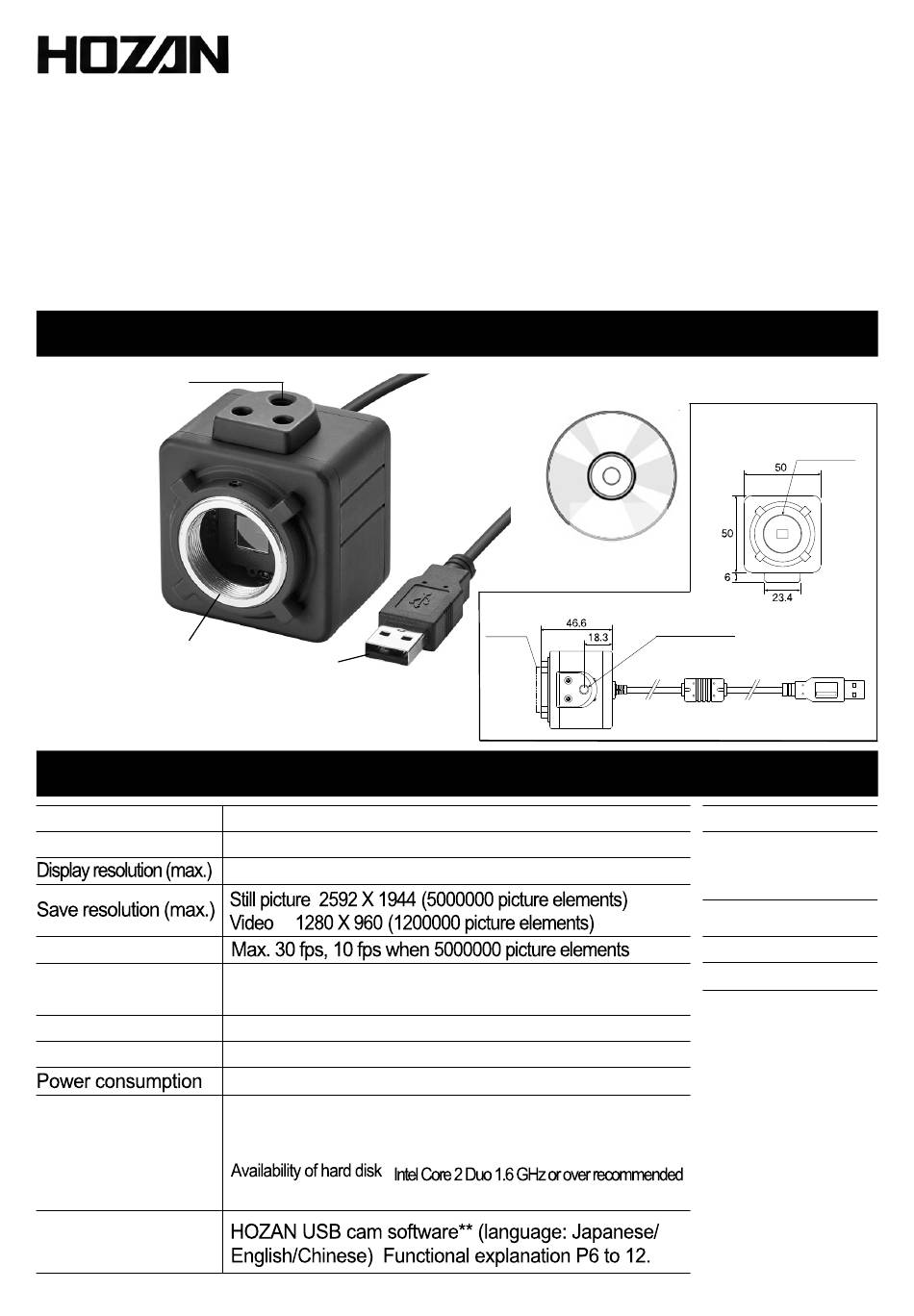

L-835
Thank you for purchasing the HOZAN L-835 USB CAMERA. With proper care and
handling, this fine instrument will provide years of trouble-free operation. Please read this
entire instruction manual carefully before attempting to place this instrument in service.
Please keep this instruction manual available for reference.
Identification of parts and contents
Camera screw
C mount
An optional lens, a computer installed the accompa-
nied software and a monitor screen are necessary
for displaying the captured images.
Specifications
Image sensor
Interface connector
Frame rate
File formats
Lens mount
Rating
Computer
requirement
Software
USB CAMERA
USB
1/2.5" CMOS
USB 2.0
2592 X 1944 (5000000 picture elements)
Still picture JPG/BMP/PNG/PDF
Video
AVI
C mount
5 Vdc through USB
0.35 W
OS:
Windows 10/8/7/XP*(32bit & 64bit)
CPU:
1GB or over
Main memory:
20GB or over
:
USB receptacle:
USB 2.0
INSTRUCTION MANUAL
Software
CD-ROM
Cap
１
Dimensions
C mount
screw
Camera screw
Unit: mm
Dimensions
50(W) X 50(H)
X 46.6(D) mm
w/o projections
Weight
170 g
■Cord length:
1.8m
*We are not responsible
for compensation and
support when a problem
occurred during use on
the OS Microsoft's sup-
port of which has ended.
**Animation reading
isn't made of software
of the accessory. Sepa-
rately, animation soft-
ware such as Windows
Media Player is need-
ed.
Advertisement
Table of Contents
Related Manuals for HOZAN L-835
Summary of Contents for HOZAN L-835
- Page 1 L-835 USB CAMERA Thank you for purchasing the HOZAN L-835 USB CAMERA. With proper care and handling, this fine instrument will provide years of trouble-free operation. Please read this entire instruction manual carefully before attempting to place this instrument in service.
-
Page 2: Warning And Caution Symbols
2. Do not pull the cable of the USB connector when remove from the computer. This could cause malfunction. 3. Pay attention when attach or detach the lens in a state that the L-835 is connected. The connecting cable could be stranded causing malfunction. -
Page 3: Installing The Driver
Preparation Installing the driver Not necessary. The driver is installed automatically when the L-835 is connected to the computer for the first time. Start the software after the driver installation is completed. Installing the software Prepare the accompanied software CD-ROM, a computer with a monitor and so on. -
Page 4: Operation
HOZAN USB cam software Start the software in the state that the L-835 is connected to the computer. If connect the L-835 during the software is opened, the L-835 is not recognized and photograph function is not used. Once close the software, then start after connect the L-835. - Page 5 Ｅｎｇｌｉｓｈ [Language] 日本語 Select the language to be used. [Software Information] The version of the software and other HOZAN products are informed. Setting the save format for still pictures Select among PDF, BMP, JPG and PNG. Setting the video storage size...
- Page 6 Operation Photograph window ② Preview window The preview window’s size is decided corresponding the resolution selected at “Video save size (display resolution)”. Each aspect ratio is noted in the parentheses. 640 X 480 (4:3) 800 X 600 (4:3) 1024 X 768 (4:3) 1280 X 720 (16:9) 2592 X 1944 (4:3) 1280 X 960 (4:3)
- Page 7 Operation Photograph window ④ Preview tool palette The buttons for the basic operation such as turn, expand/reduce, photograph. Zoom in Turn 90 degrees counterclockwise Return to the original size, selected as the Turn 90 degrees clockwise video save size. Reduce into the most suitable size for the Reverse vertically window to display the entire image Reverse horizontally...
-
Page 8: Edit Window ]
Operation Edit window Edit window ① Document tool palette ③ Measurement tool palette for inserting/printing/deleting the image ② Preview window for displaying the specified image ④ Thumbnail window for displaying the multiple saved images ⑤ Edit tool palette There are buttons for basic operations such as turn, expand/ reduce, photograph. - Page 9 Operation Edit window ② Preview window To display all the saved still pictures and compare on the division screen. *Videos (AVI) are displayed by the other window (such as Windows Media Player). This depends to the software installed in the computer. Displaying in one screen Double click the picture to be inserted from the thumbnail window.
- Page 10 Operation Edit window ③ Measurement tool pallet This software has the measurement function. Prior to using measurement function, carry out calibration as the procedures below. How to calibrate １ First, photograph a ruler and such in a still picture as the basis. Open the edit window. Select and display the image to be the basis.
-
Page 11: Basic Operations
Operation Edit window Functions of the tool pallet Basic Operations Undo. Straight line: measuring distance of two points. Cancel the undoing. Folded line: measuring distance of plural points(*2). Decide font and point of letters(*1). Distance of center of circles: measuring distance of center of two circles and Fill texts. -
Page 12: Magnification Table
Two screens Zoom in Four screens Full size, selected as the video save resolution Magnification table Magnifications gotten by the L-835 is combined with interchangeable lenses Combination Without ring ** 2.9 to 11 60 x 45 6.0 to 24 29 x 22... -
Page 13: Related Products
Please download this software from our web site. Also browse using examples there. Related products The L-835 does not have lenses. Please use combining with these related products. ・ Lenses L-802-2 Lens unit L-818 Extension ring L-819 Extension ring A reasonable priced C mount lens. - Page 14 Related products ・ Others L-509 Stereo head holder Cannot be used for the L-835 combined with L-600-12 or L-509 L-600-35. L-521 Standard table L-520 Long post Use the standard table interchanging the original post into the long post if the...
