Quick Start Guide

HN-IRDNS200

1080P HD IR Dome PoE IP Camera

Table of Contents

Need help?

Do you have a question about the HN-IRDNS200 and is the answer not in the manual?

Questions and answers

Summary of Contents for Honic HN-IRDNS200

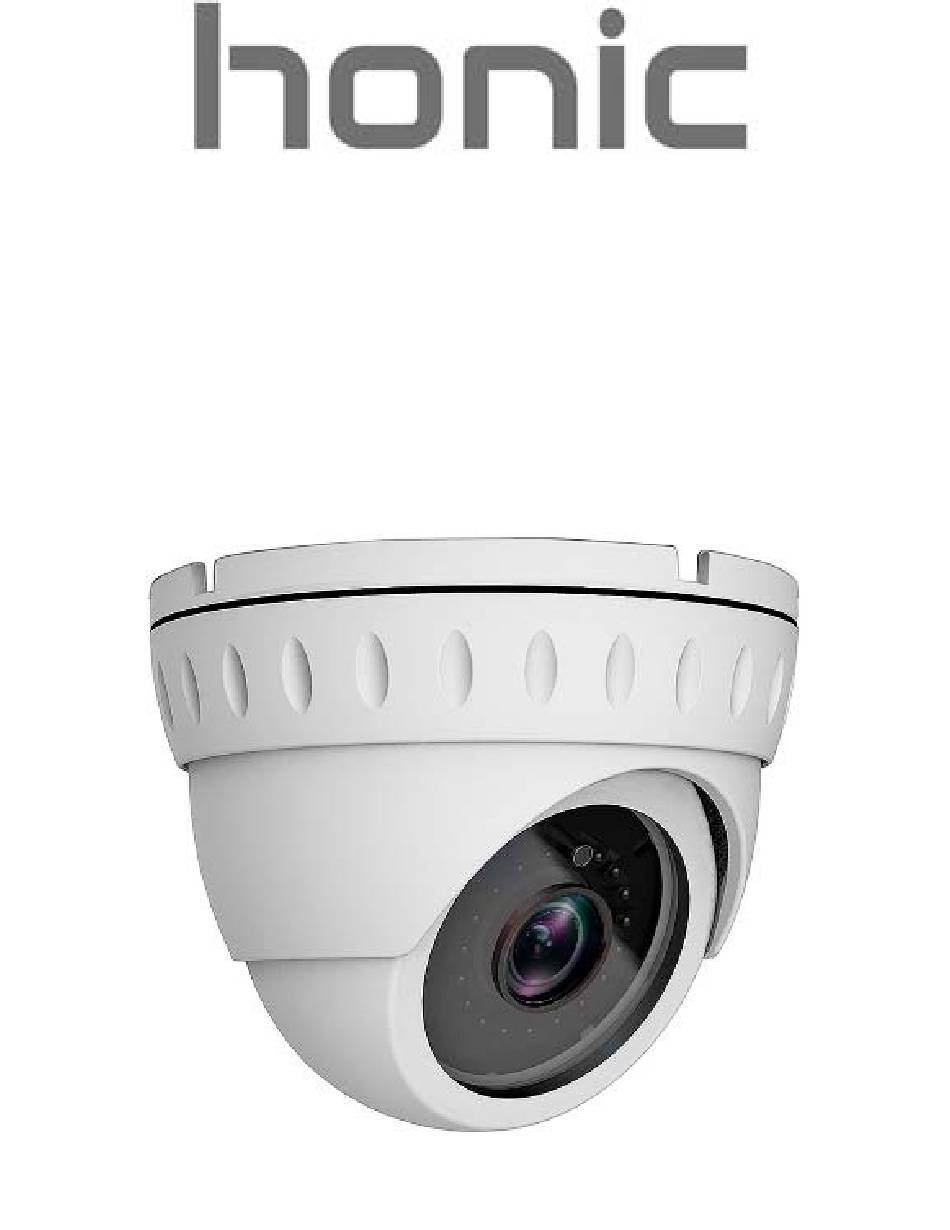

Page 1 Quick Start Guide HN-IRDNS200 1080P HD IR Dome PoE IP Camera...
Page 2: Quick Reference
Contents Item Quantity Dome IP Camera Quick Start Guide CD (Manuals & Software) Screws Pack Drill Template Waterproof Components for RJ45 Installation Guide Quick Reference  Default Static IP: 192.168.1.168  HTTP Port: 80  RTSP Port: 554 Main Stream: rtsp://ipaddress:port/0 Sub Stream: rtsp:// ipaddress:port/1...
Page 3 Tri Stream: rtsp:// ipaddress:port/2  HTTPS Port: 443  ONVIF Port: 8999  HIKVISION Protocol Port: 8000  JEPG Address: http://ipaddress:http port/snap.jpg  FFMPEG Address: rtsp://username:password@ipaddress:rtsp port/0 (or 1,2) For example: rtsp://admin:admin@192.168.1.168:554/0  Default Passwords: Username: admin Password: admin  Device ID: Please check the label on the camera (package), or (Configuration-Network-Advanced Setup-p2p) ...
Page 4  Captcha: Please check the label on the camera (package), you need it when you add device in mobile app.  Software Supported: Blue Iris, iSpy, Synology, Zoneminder etc. NAS supported  NVR Supported: Hikvision and other onvif NVRs  VMS Compatible List: original VMS Lite (Windows, Mac), 、...
Page 5 Description Description Reset DC 12V Power Audio Input Network (PoE)  Press and hold the RESET button for 10 seconds to restore factory default settings.  It is recommended to connect the camera to the PoE Router or an external PoE switch. If using a DC power adapter with...
Page 6: Insert Sd Card
REGULATED power supply is REQUIRED for use with this camera. You could buy UL listed Power adapter from Honic Store. Insert SD Card This camera has internal microSD card slot to record video data if with microSD card inserted.
Page 7  Make sure that power is off.  Make sure fitting the waterproof rubber ring when assembling the eyeball body. Insert the SD card Insert the microSD card and gently press with the hex wrench as indicated by the arrow until you hear click. Make sure that the SD card is fully inserted.
Page 8 General Guidelines Try to place the camera in a position that a potential security threat will find it difficult to avoid detection. A strategy which is often effective is to monitor entrances and exits - after all, a security threat has to get in somewhere.
Page 9: Installation Diagram
images if the area is dark. However, if there’s a bright point source in the camera’s view (a streetlight, car headlights or similar) then it might not engage night vision mode. Typically, the best view is obtained approximately 7ft (2m) to 10ft (3m) high, looking slightly downwards. The camera’s casing is resistant to water, different weather conditions and tampering.
Page 10  Ensure the camera is working correctly prior to permanent installation by temporarily connecting the camera(s) and cable(s) to the NVR or computer. Installation Diagram Please check the installation guide in the package for details.
Page 11: Connecting The Camera
 If you install the camera outside of your home, we highly recommend using waterproof tape to wrap all the trail cables connection areas. Use as much as is necessary for the layer of tape to protect the connections. This will help prevent water or moisture from leaking into the cables which can cause the cable connections to degrade over time or stop working.
Page 12  A 12V DC power adapter (NOT included) is only required if connecting the camera’s Ethernet cable to a router or switch that does not support PoE. 2. Connect the other end of the Ethernet cable to the NVR’s PoE ports. The camera may take up to 1 minute to power up after being connected to the NVR.
Page 13  Support Onvif NVRs, Onvif port in default: 8999  Support Hikvision NVRs, protocol port in default: 8000  Support XM (Xmeye) NVRs, port: 8000 (Configuration- Network-Basic Setup-Select XM protocol Enable) Set Diagram...
Page 14: Quick Configuration Tool
Cable Extension Options Extend the Ethernet cable run for your camera up to 300ft. See table below. It is recommended to use UL CMR approved cables. Cable Type Max Cable Run Max # of Distance Extensions Cat5e or higher 300ft / 92m Ethernet cable You can use a RJ45 Coupler (not included) or switch (not included) to connect male ends of Ethernet cable together.
Page 15 Open IP Search Tool Refresh Change “All” to “IPC” Select the IPC...
Page 16 Change parameters or Enable DHCP (optional) Input password (admin in default) Modify...
Page 17  For the best security, Honic recommends you use a static IP setting and standard port forwarding.  Assign an IP address to the IP Camera by using the first 3 sets of numbers of your default gateway. For example, my default gateway is 192.168.0.1 Need change IP camera address to 192.168.1.xxx...
Page 18 An ActiveX control is necessary in your computer for the first time when install IP camera, Click the “DOWNLOAD” to install ActiveX control as show below. Complete the installation, reopen the web browser, input IP camera address, and input the username and password and then login.
Page 19  Strongly suggest you to modify the user name and password to improve security level. If there is problem to install Active X plugin in IE browser, Please check the following:...
Page 20 browser—Tool—Internet Option—Security— Customized Level—ActiveX controls and plug-ins, Enable all the options bellow—OK...
Page 21: Mobile Connection
Mobile Connection Install Android/iOS App Search “FreeIP” in iPhone App store or Google Play. Scan the following QR code to download. Android App iOS App Add Device Open FreeIP app (Please register an account if you are a new user), Log in the account.
Page 22 Click on the top left, choose “Device” to go to Device interface. Click “Add device” at the bottom of the Device interface. Select “SN Add” Scan the QR code printed on the device sticker or posted on the web (Browser—Configuration— Network—Advanced Setup—P2P).
Page 23 Input the username, password and verification code (Captcha number was printed on the device sticker) and submit. Input the device name. Click on the top left, choose “Preview” to go to Preview interface.
Page 24 Click “+” and choose the device, Click “Preview” at the bottom. Default definition is “Fluent”, you could choose other definitions. Enable Cloud Click on the top left, choose “Device” to go to Device interface. Select the IP Camera and click “…”, then enable cloud service (30 days free trial, H.264+ or H.265+ should be enabled in Web settings, Browser—Configuration—...
Page 25 For detailed instructions, please check the email we send to you or the CD. Add Honic Camera to Blue Iris Launch Blue Iris and click + button at top/right of the software window or right click and select Add new camera to add the camera to Blue Iris.
Page 26 Click Find/inspect… button to search the camera in the LAN and choose the Make as Generic, change the “Discovery/ONVIF port” to 8999 then click OK to add.
Page 27  Input new User and Password if you have change the default username and password. Add Honic Camera to iSpy Launch iSpy, and click “Add”>> “IP Camera”. Choose FFMPEG (H264), input URL: rtsp://username:password@ipaddress:rtsp port/0 (or 1,2) E.G.: rtsp://admin:admin@192.168.1.168:554/0...
Page 28 Click “Advanced”, Select “No Resize” if you need full resolution live stream.
Page 29: Specifications
Specifications Camera Image Sensor 1/2.9" SONY Low Illumination CMOS Sensor Resolution 2MP 1080P Effective Pixels 1985(H)*1105(V) Compression H.264/H.264+/H.265/H.265+/JPEG/AVI /MJPEG TV System PAL/NTSC Electronic Shutter Time PAL 1/25-1/10000Sec; NTSC 1/25-1/10000Sec S/N Ratio ≥52dB Reset Button Lens Focus Length 3.6mm Focus Control Fixed Night Vision Infrared LED...
Page 30 IR Status Under 10 Lux By CDS IR Power On CDS Auto Control Network Ethernet RJ-45 (10/100Base-T) TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS Protocol DDNS, RTP,RTSP,RTCP,NTP,SMTP ONVIF Support ONVIF 2.4 YES, Support QR Code Support IEEE 802.3af Video Delay 0.3S (Within the Lan) Main Stream 1 1920*1080@30fps Main Stream 2 1280*720@30fps...
Page 31 Camera Features Day/Night Color/ B&W (IR-CUT ) Saturation/Brightness/Contrast /Sharpness, Mirror Image Config 3D NR , White Balance, FLK(Flicker Control) Corridor Pattern Defog Mode Support Support Support Support Motion Detection Support Privacy Masking 3 Rectangular Zone Recording Mode NVR/NAS/CMS/Web Interface Audio In Need External Active Pickups;...
Page 32: Support And Warranty
Housing Metal , IP66 IR Cut Filter Operation Temperature -20℃ ~ +60℃ RH95% Max Storage Temperature -20℃ ~ +60℃ RH95% Max Power Source DC12V±10%, 850mA Dimension ￠94.5 x 76(H) mm Weight 450g Support & Warranty If there is any problem, please email us Service@honictech.com Support@honictech.com You will get reply within 8 hours.
