Summary of Contents for AuthenTeak Kingsley-Bate Chippendale CH50

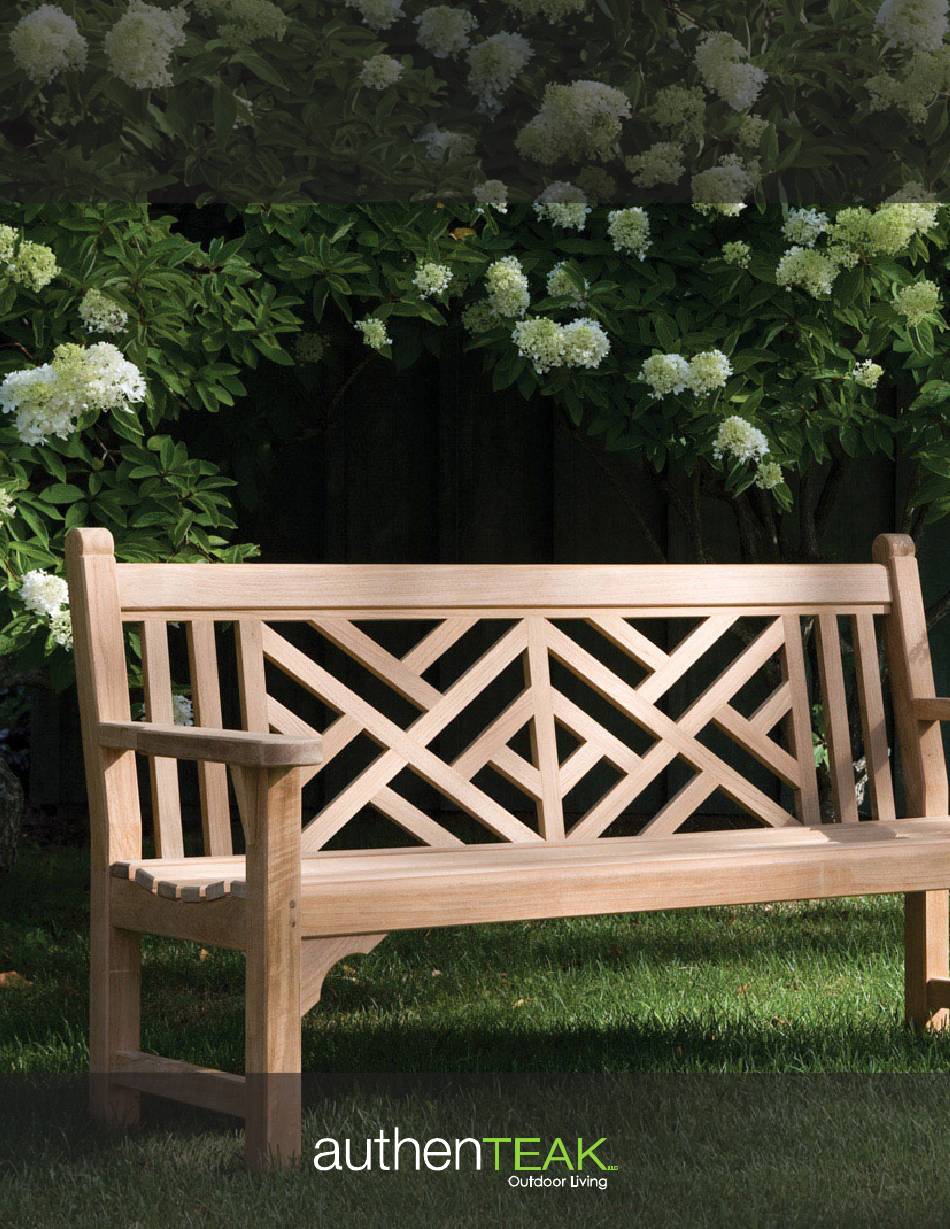

- Page 1 Kingsley-Bate CH50 Chippendale 5' Bench Assembly Instructions...
- Page 2 KINGSLEY–BATE Fine Garden Furniture ASSEMBLY INSTRUCTIONS FOR THE CH-40/50 RIGHT END FRAME BACK LEFT END FRAME * NOTE : A TENON B MORTISE HOLE SEAT STEP-I Unpack, inspect and lay the parts on a clean, flat, soft surface to avoid marring the wood. NOTE : During assem bly of furniture please matc h joints with the co rresponding letters or numbers stamped near the joints.
- Page 3 STEP-V Fit the remaining END FRAME m ortise holes over and onto all exposed tenons as shown in phot o. Using a rubb er hammer or regula r hammer with a wood block between the hammer and the wood, drive the t enons and mortise holes together until all joints fit snug ly.
