M2 (PRINTHEAD CABLE REPLACEMENT)
(Always POWER DOWN printer and UNPLUG before doing any repair work)
PRINTHEAD CABLE REPLACEMENT:
1. Release carriage from capping station and roll out to middle of printer.
Place rag under the area you are working on.Just to catch any ink that might be dropped during
the install.
2. Release pressure off of the CMYK lines by loosening the caps on the ink bottles.
(Indicated on pg.2 Fig. 1-C)
3. Unscrew two thumscrews from carriage
Fig 1-A

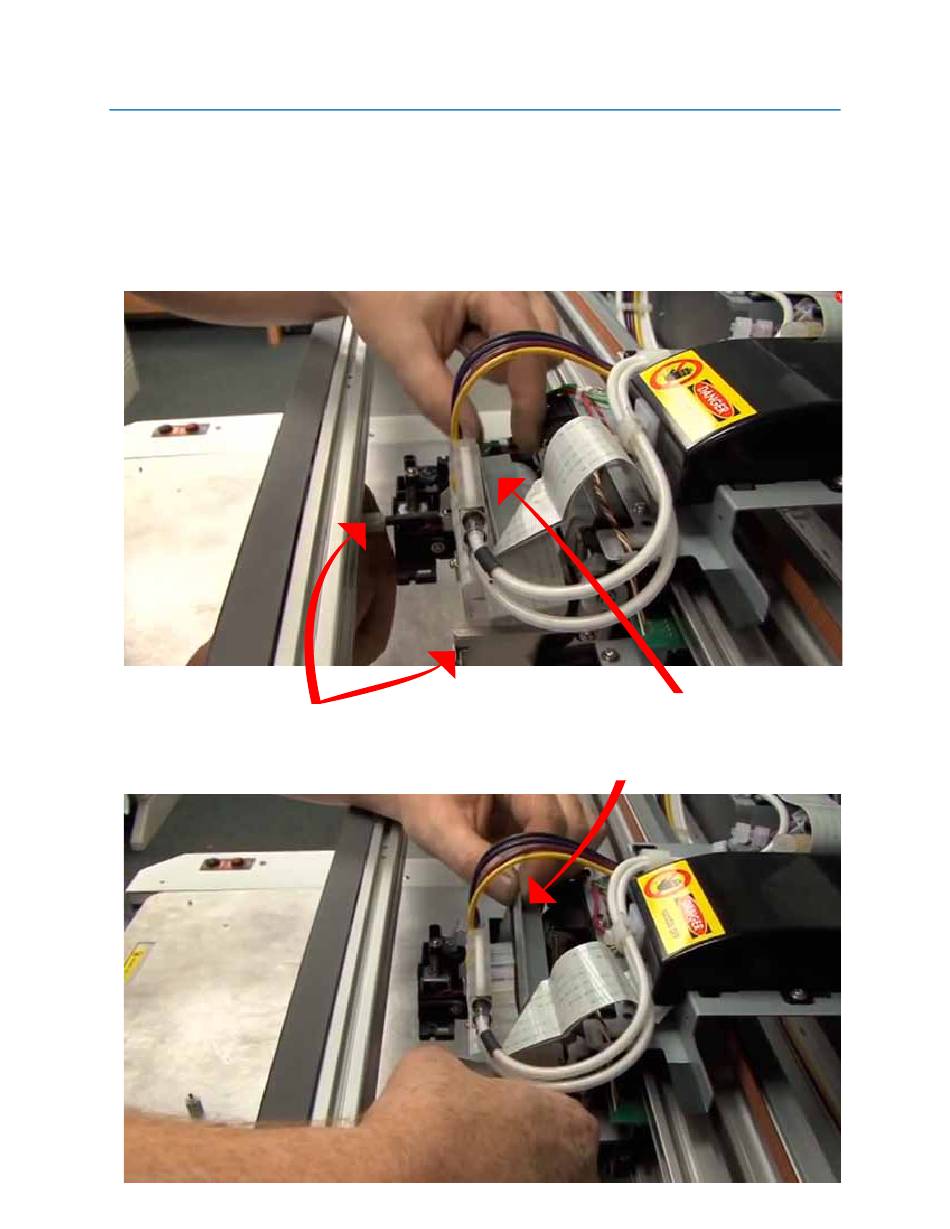

Two "thumscrews" that hold the "RETAINER BAR" to the carriage.
Remove those screws in order to remove retaining bar.
Fig 1-B
Revision Date / Version: 2/13/2014 - 7
(Indicated below 1-A)
Carefully slide "RETAINER BAR" out
(Indicated below 1-A)
RETAINER BAR
